Airports for X-Plane

Sembawang

Airport details

CountrySingapore
StateNorth West
RegionWS
AirspaceSingapore Ctr
MunicipalityNorthwest
Elevation84ft (26m)
TimezoneGMT +8
Coordinates1.42667, 103.81611
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeWSAG
IATA coden/a
FAA coden/a

Communication

Sembawang Ground Control118.800
Sembawang Tower129.700
Sembawang SINGAPORE Approach/Departure120.300
Sembawang SINGAPORE Approach/Departure124.600

Runway info

Runway 04 / 22
 length2702m (8865ft)
 bearing42° / 222°
 width46m (150ft)
 surfaceasphalt
 displ threshold151m (495ft) / 152m (499ft)
Runway 05 / 23
 length1032m (3386ft)
 bearing46° / 226°
 width30m (100ft)
 surfaceasphalt
 displ threshold61m (200ft) / 61m (200ft)

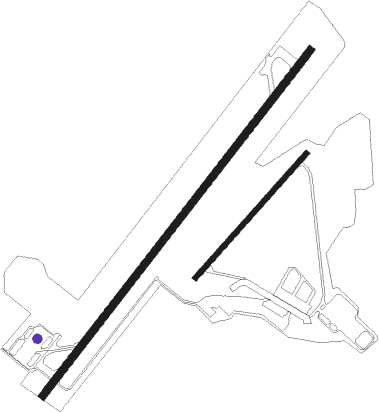

Airport layout - parking location 05


Parking locations

 01  02  03  04  05  06

Nearby beacons

codeidentifierdistbearingfrequency
AGSEMBAWANG (SINGAPORE) NDB0.4115°325
SELSELETAR (SINGAPORE) NDB3.3104°220
TNGTENGAH (SINGAPORE) TACAN6.5252°113.90
PLAPAYA LEBAR (SINGAPORE) TACAN6.7119°116.30
PUPAPA UNIFORM (SINGAPORE) VOR/DME792°115.10
JBJAYBEE (JOHOR BAHRU) NDB7.6305°400
KKKONG KONG (JOHOR BAHRU) NDB11.861°286
VTKTEKONG (SINGAPORE) VOR/DME12.393°116.50
SJSINJON (SINGAPORE) VOR/DME12.4169°113.50
VJBJOHOR BAHRU VOR/DME17327°112.50
JRJOHOR BAHRU NDB17.6327°245
BMBATAM NDB25.4136°370
BTMBATAM VOR/DME25.7132°116
TGTANJUNG BALAI KARIMUN NDB34228°410
APKLUANG NDB48320°331
TITANJUNG PINANG NDB52.3126°385
TPGTANJUNG PINANG VOR/DME52.3127°114.80
VMRMERSING (JOHOR BAHRU) VOR/DME57.83°116.80
