Airports for X-Plane

Ahmedabad

Airport details

CountryIndia
StateGujarat
RegionVA
AirspaceMumbai Ctr
MunicipalityAhmedabad
Elevation187ft (57m)
TimezoneGMT +5.5
Coordinates23.07119, 72.62643
Magnetic var
Typeland
Available sinceX-Plane v10.30
ICAO codeVAAH
IATA codeAMD
FAA coden/a

Communication

Ahmedabad ATIS126.800
Ahmedabad Tower118.100
Ahmedabad Radar119.800
Ahmedabad Radar123.750
Ahmedabad Approach119.600
Ahmedabad Approach118.100
Ahmedabad Departure (Tower)119.600

Approach frequencies

ILS-cat-IRW23110.318.00mi
3° GSRW23110.318.00mi

Runway info

Runway 05 / 23
 length3515m (11532ft)
 bearing47° / 227°
 width46m (150ft)
 surfaceasphalt
 blast zone65m (213ft) / 59m (194ft)

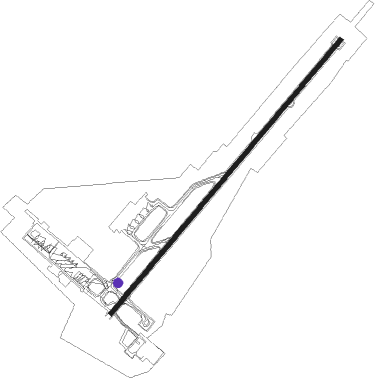

Airport layout - taxiway location P


Taxiway locations

 A  B  C  D  P  P1
Parking locations

 GA1  GA2  GA3  GA4  Gate  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
AAEAHMEDABAD VOR/DME0.2138°113.10
AHAHMEDABAD NDB5.846°215
QQZVADODARA VOR/DME55.3141°117.30

Departure and arrival routes

Transition altitude4000ft
SID end pointsdistanceoutbound heading
RW05
 UUD1B116mi39°
 BODA1B93mi106°
 QQZ1B55mi141°
 BVR1B83mi198°
 RKT1B112mi248°
 SASR1B108mi302°
RW23
 UUD1A116mi39°
 BODA1A93mi106°
 QQZ1A55mi141°
 BVR1A83mi198°
 RKT1A112mi248°
 SASR1A108mi302°

STAR starting pointsdistanceinbound heading
RW05
 RKT1B112.168°
 VASL1B93.7105°
 UUD1B115.9219°
 BODA1B92.6286°
 QQZ1B55.3321°
 APAN1B91.4347°
RW23
 RKT1A112.168°
 VASL1A93.7105°
 UUD1A115.9219°
 BODA1A92.6286°
 QQZ1A55.3321°
 APAN1A91.4347°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05-YLUPGA (76°)LUPGA
IBIGU (6mi, 132°) 2000ft
RW05-YOMDIP (21°)OMDIP
IBIGU (5mi, 313°) 2000ft
RW05-YVIPUD (47°)VIPUD
IBIGU (5mi, 47°) 2000ft
 RNAVIBIGU 2000ft
AH905 (5mi, 47°) 2000ft
VAAH (6mi, 46°) 230ft
AH907 (6mi, 48°) 1200ft
OMDIP (17mi, 210°) 2000ft
OMDIP (turn) 2000ft
RW23-YBOTMI (201°)BOTMI
NIXUM (6mi, 132°) 2000ft
RW23-YIDNEP (254°)IDNEP
NIXUM (6mi, 312°) 2000ft
RW23-YPUGUG (227°)PUGUG
NIXUM (5mi, 227°) 2000ft
 RNAVNIXUM 2000ft
AH809 (5mi, 227°) 2000ft
VAAH (7mi, 227°) 239ft
AH811 (3mi, 226°) 1200ft
BOTMI (17mi, 26°) 2000ft
BOTMI (turn) 2000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
APAN1AAH374VHFleft165 (345)°> 4000ft1.0min timedICAO rules
APAN1BAH367VHFright135 (315)°> 9000ft1.0min timedICAO rules
QQZ1AAH374VHFleft165 (345)°> 4000ft1.0min timedICAO rules
UUD1AAH393VHFleft35 (215)°> 9000ft1.0min timedICAO rules
UUD1BAH394VHFright32 (212)°> 9000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
