Airports for X-Plane

San Juan - San Juan Luis Munoz Marin Intl

Airport details

CountryUnited States of America
StatePuerto Rico
RegionTJ
AirspaceSan Juan Oceanic Ctr
MunicipalityCarolina
Elevation5ft (2m)
TimezoneGMT -4
Coordinates18.43940, -66.00214
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeTJSJ
IATA codeSJU
FAA coden/a

Communication

San Juan Luis Munoz Marin Intl ATIS125.800
San Juan Luis Munoz Marin Intl UNICOM123.000
San Juan Luis Munoz Marin Intl SAN JUAN Clearance DEL126.400
San Juan Luis Munoz Marin Intl Ground Control121.900
San Juan Luis Munoz Marin Intl SAN JUAN Tower132.050
San Juan Luis Munoz Marin Intl SAN JUAN Approach120.900

Approach frequencies

ILS-cat-IRW10109.718.00mi
ILS-cat-IRW08110.318.00mi
3° GSRW10109.718.00mi
3° GSRW08110.318.00mi

Runway info

Runway 08 / 26
 length3173m (10410ft)
 bearing68° / 248°
 width61m (200ft)
 surfaceasphalt
 displ threshold122m (400ft) / 122m (400ft)
 blast zone122m (400ft) / 122m (400ft)
Runway 10 / 28
 length2440m (8005ft)
 bearing90° / 270°
 width46m (151ft)
 surfaceconcrete
 blast zone61m (200ft) / 61m (200ft)

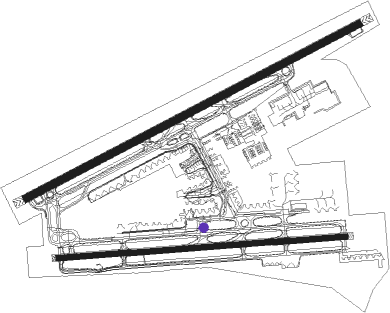

Airport layout - taxiway location H5


Taxiway locations

 A  B  C  H  H1  H11  H2  H3
 H5  H6  H9  J  J1  J11  J3  J5
 J6  J9  M  N  N1  N3  S  S1
 S2  S3  S4  S5  S6  S7  S9
Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
SJUSAN JUAN VORTAC0.861°114
SJPATTY (SAN JUAN) NDB5.3251°330
DDPDORADO (SAN JUAN) NDB23.4274°391
PSEPONCE VOR39.8229°109
STTSAINT THOMAS VOR/DME55.995°108.60

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW08
 JETSS1, HAMAR2133mi91°
 GANBO1179mi210°
 ACONY3181mi310°
 JAAWS2105mi314°
 VERMO6102mi353°
 GLADA3270mi356°
RW10
 JETSS1, HAMAR2133mi91°
 GANBO1179mi210°
 ACONY3181mi310°
 JAAWS2105mi314°
 VERMO6102mi353°
 GLADA3270mi356°
RW26
 JETSS1, SNGRA2133mi91°
 GANBO1179mi210°
 ACONY3181mi310°
 JAAWS2105mi314°
 VERMO6102mi353°
 GLADA3270mi356°
RW28
 JETSS1, SNGRA2133mi91°
 GANBO1179mi210°
 ACONY3181mi310°
 JAAWS2105mi314°
 VERMO6102mi353°
 GLADA3270mi356°

STAR starting pointsdistanceinbound heading
RW08
 JOSHE330.868°
 BEANO340.0117°
 SAALR244.7154°
 CHAKA421.6280°
 TROCO320.5316°
RW10
 JOSHE330.868°
 BEANO340.0117°
 SAALR244.7154°
 CHAKA421.6280°
 TROCO320.5316°
RW26
 JOSHE330.868°
 BEANO340.0117°
 SAALR244.7154°
 TROCO320.5316°
RW28
 JOSHE330.868°
 BEANO340.0117°
 SAALR244.7154°
 TROCO320.5316°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW08CORAF (118°)CORAF
VARNA (20mi, 167°) 3900ft
GUADE (7mi, 68°) 3500ft
 RNAVGUADE 3500ft
RIMMA (7mi, 68°) 1600ft
TJSJ (5mi, 70°) 54ft
URZUM (4mi, 64°)
DEEDY (14mi, 342°) 3000ft
DEEDY (turn)
RW10CORAF (118°)CORAF
TNNER (17mi, 138°) 2300ft
RW10TNNER (88°)TNNER 2300ft
RW10VARNA (69°)VARNA
YIGTO (5mi, 44°) 3500ft
TNNER (4mi, 44°) 2300ft
 RNAVTNNER 2300ft
REMSY (6mi, 90°) 1500ft
ZASPU (3mi, 90°) 600ft
TJSJ (2mi, 82°) 61ft
(4042mi, 106°) 500ft
DEEDY (4045mi, 286°) 3000ft
DEEDY (turn)
RW26FAJAR (265°)FAJAR
SILOE (11mi, 283°) 1600ft
RW26SILOE (247°)SILOE 1600ft
 RNAVSILOE 1600ft
TUKRE (5mi, 248°) 1600ft
TJSJ (6mi, 246°) 62ft
(4042mi, 106°) 384ft
POVEE (4044mi, 286°)
DEEDY (16mi, 3°) 3000ft
DEEDY (turn)
RW28CHAKA (280°)CHAKA
FANIN (10mi, 290°) 2000ft
RW28FAJAR (265°)FAJAR
FANIN (9mi, 257°) 2000ft
RW28FANIN (272°)FANIN 2000ft
 RNAVFANIN 2000ft
BLAWS (6mi, 270°) 1700ft
TJSJ (6mi, 273°) 63ft
(4042mi, 106°) 410ft
DEEDY (4045mi, 286°) 3000ft
DEEDY (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BEANO3BEANOVHFright312 (132)°DME 6.0miICAO rules
CHAKA4CHAKAVHFright99 (279)°< 17999ftDME 6.0miICAO rules
JOSHE3JOSHEVHFright229 (49)°DME 7.0miICAO rules
SAALR2SAALRVHFright352 (172)°< 17999ftDME 4.0miICAO rules
TROCO3MAVIEVHFright135 (315)°< 17999ftDME 7.0miICAO rules
*) magnetic outbound (inbound) holding course
