Airports for X-Plane

Ipatinga - Usiminas

Airport details

CountryBrazil
StateMinas Gerais
RegionSB
AirspaceBrasilia Ctr
MunicipalitySantana do Paraíso
Elevation784ft (239m)
TimezoneGMT -3
Coordinates-19.47056, -42.48778
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSBIP
IATA codeIPN
FAA coden/a

Communication

Usiminas RDO130.000

Runway info

Runway 05 / 23
 length2012m (6601ft)
 bearing32° / 212°
 width46m (151ft)
 surfaceasphalt
 blast zone62m (203ft) / 62m (203ft)

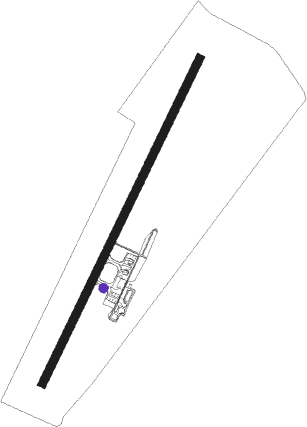

Airport layout - taxiway location A


Taxiway locations

 A  B
Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
YPTDME-ILS0.2182°110.90
YPTIPATINGA NDB0.648°16.180

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW05
 ALDU1A59mi129°
 OMNI84mi263°
RW23
 ISIT1A59mi129°
 OMNI84mi263°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05-ZIP009 (22°)IP009 6000ft
IP006 (5mi, 16°) 4000ft
RW05-ZIP011 (49°)IP011 6000ft
IP006 (5mi, 105°) 4000ft
RW05-ZIP012 (356°)IP012 6000ft
IP006 (5mi, 285°) 4000ft
 RNAVIP006 4000ft
IP007 (5mi, 16°) 2430ft
IP008 (3mi, 32°) 1630ft
SBIP (3mi, 31°) 833ft
(2760mi, 65°) 2200ft
IP012 (2763mi, 245°) 6000ft
IP012 (turn) 6000ft
RW23-YIP016 (237°)IP016 6000ft
IP013 (5mi, 299°) 4000ft
RW23-YIP017 (212°)IP017 6000ft
IP013 (5mi, 212°) 4000ft
RW23-YIP018 (185°)IP018 6000ft
IP013 (5mi, 119°) 4000ft
 RNAVIP013 4000ft
IP014 (5mi, 212°) 2430ft
SBIP (6mi, 212°) 836ft
(2760mi, 65°) 2200ft
IP016 (2748mi, 245°) 6000ft
IP016 (turn) 6000ft

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
