Airports for X-Plane

Bahia Blanca - Comandante Espora

Airport details

CountryArgentina
StateBuenos Aires
RegionSA
AirspaceEzeiza Ctr
MunicipalityGrünbein
Elevation246ft (75m)
TimezoneGMT -3
Coordinates-38.72722, -62.15333
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSAZB
IATA codeBHI
FAA coden/a

Communication

Comandante Espora Ground Control121.900
Comandante Espora Tower119.150
Comandante Espora Approach119.150
Comandante Espora Departure119.150

Approach frequencies

ILS-cat-IRW17L109.718.00mi
2.7° GSRW17L109.718.00mi

Runway info

Runway 17L / 35R
 length2415m (7923ft)
 bearing160° / 340°
 width45m (148ft)
 surfaceasphalt
 blast zone153m (502ft) / 126m (413ft)
Runway 17R / 35L
 length1499m (4918ft)
 bearing160° / 340°
 width30m (98ft)
 surfaceasphalt
Runway 06 / 24
 length1977m (6486ft)
 bearing66° / 246°
 width30m (98ft)
 surfaceasphalt

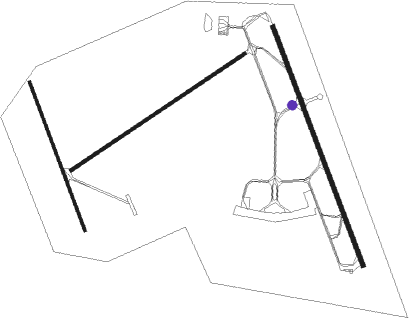

Airport layout - taxiway location D


Taxiway locations

 A  B  C  COM|TERMIN  D  E  F  G
 H  MIL|TERMIN  SAZB
Parking locations

 1  2  3  4  5  6  7  8
 mil

Nearby beacons

codeidentifierdistbearingfrequency
BCABAHIA BLANCA VOR/DME0.4325°114.30

Departure and arrival routes

Transition altitude3000ft
SID end pointsdistanceoutbound heading
RW06
 PULA1K55mi41°
 MOXA1K55mi72°
 DOTR1K55mi81°
 SANB1K52mi213°
 KIMI1K70mi243°
 GENA1K55mi253°
 DAMI1K55mi267°
 AKNO1K56mi315°
RW17L
 PULA1A, PULA1C55mi41°
 MOXA1A, MOXA1C55mi72°
 DOTR1C, DOTR1A55mi81°
 SANB1A, SANB1C52mi213°
 KIMI1A, KIMI1C70mi243°
 GENA1A, GENA1C55mi253°
 DAMI1A, DAMI1C55mi267°
 AKNO1A, AKNO1C56mi315°
RW24
 PULA1M55mi41°
 MOXA1M55mi72°
 DOTR1M55mi81°
 SANB1M52mi213°
 KIMI1M70mi243°
 GENA1M55mi253°
 DAMI1M55mi267°
 AKNO1M56mi315°
RW35R
 PULA1G, PULA1E55mi41°
 MOXA1G, MOXA1E55mi72°
 DOTR1G, DOTR1E55mi81°
 SANB1G, SANB1E52mi213°
 KIMI1E, KIMI1G70mi243°
 GENA1E, GENA1G55mi253°
 DAMI1E, DAMI1G55mi267°
 AKNO1G, AKNO1E56mi315°

STAR starting pointsdistanceinbound heading
RW06
 SANB1X52.433°
 KIMI1X69.763°
 GENA1X55.173°
 DAMI1X55.287°
 AKNO1X55.5135°
 MOXA1X, MOXA2X55.0252°
 DOTR1X54.9261°
RW17L
 SANB1Q52.433°
 KIMI1Q69.763°
 GENA1Q55.173°
 DAMI1Q55.287°
 AKNO1Q55.5135°
 MOXA1Q55.0252°
 DOTR1Q54.9261°
RW24
 SANB1Z52.433°
 KIMI1Z69.763°
 GENA1Z55.173°
 DAMI1Z55.287°
 AKNO1Z55.5135°
 MOXA1Z55.0252°
 DOTR1Z54.9261°
RW35R
 MOXA1U55.0252°
 DOTR1U54.9261°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW06DAPKI (88°)DAPKI 3000ft
KUBIX (5mi, 145°) 2000ft
RW06NILVU (46°)NILVU 3000ft
KUBIX (5mi, 324°) 2000ft
RW06UGONO (68°)UGONO 3000ft
KUBIX (5mi, 66°) 2000ft
 RNAVKUBIX 2000ft
OGNEB (5mi, 66°) 2000ft
SAZB (7mi, 71°) 293ft
ZB712 (3mi, 56°)
NEDET (12mi, 324°) 3000ft
NEDET (turn) 3000ft
RW17LANGEM (191°)ANGEM 3000ft
OSOVI (5mi, 257°) 2200ft
RW17LPUMVO (160°)PUMVO 3000ft
OSOVI (5mi, 160°) 2200ft
RW17LUBLUM (132°)UBLUM 3000ft
OSOVI (5mi, 77°) 2200ft
 RNAVOSOVI 2200ft
OPSEV (4mi, 160°) 2200ft
SAZB (7mi, 160°) 298ft
ZB700 (4mi, 160°)
VUBLI (18mi, 71°) 3000ft
VUBLI (turn) 3000ft
RW24EVNAD (244°)EVNAD 3000ft
UTMIK (5mi, 246°) 2000ft
RW24OPKOT (260°)OPKOT 3000ft
UTMIK (5mi, 294°) 2000ft
RW24UDOPU (218°)UDOPU 3000ft
UTMIK (5mi, 144°) 2000ft
 RNAVUTMIK 2000ft
VUNSI (5mi, 246°) 2000ft
SAZB (5mi, 240°) 298ft
ZB067 (4mi, 253°)
KIBIG (10mi, 17°) 3000ft
KIBIG (turn) 3000ft
RW35REDPIL (292°)EDPIL 3000ft
ISVOR (6mi, 257°) 2000ft
 RNAVISVOR 2000ft
KONLO (4mi, 307°) 1580ft
MUBUD (3mi, 322°) 609ft
ZB742 (4mi, 323°)
NEDET (11mi, 345°) 3000ft
NEDET (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AKNO1XDAPKIVHFright334 (154)°> 3000ftDME 4.0mi210
AKNO1ZKIBIGVHFleft263 (83)°> 3000ftDME 4.0mi210
DAMI1XDAPKIVHFright334 (154)°> 3000ftDME 4.0mi210
DAMI1ZKIBIGVHFleft263 (83)°> 3000ftDME 4.0mi210
DOTR1QANGEMVHFright77 (257)°> 3000ftDME 4.0mi210
DOTR1UEDPILVHFright71 (251)°> 3000ftDME 4.0mi210
DOTR1XNILVUVHFleft154 (334)°> 3000ftDME 4.0mi210
GENA1ZKIBIGVHFleft263 (83)°> 3000ftDME 4.0mi210
KIMI1ZKIBIGVHFleft263 (83)°> 3000ftDME 4.0mi210
MOXA1QANGEMVHFright77 (257)°> 3000ftDME 4.0mi210
MOXA1QMOXANVHFright72 (252)°> 11000ftDME 4.0mi220
MOXA1UEDPILVHFright71 (251)°> 3000ftDME 4.0mi210
MOXA1UMOXANVHFright72 (252)°> 11000ftDME 4.0mi220
MOXA1XDAPKIVHFright334 (154)°> 3000ftDME 4.0mi210
MOXA1XMOXANVHFright72 (252)°> 11000ftDME 4.0mi220
MOXA1ZMOXANVHFright72 (252)°> 11000ftDME 4.0mi220
MOXA2XMOXANVHFright72 (252)°> 11000ftDME 4.0mi220
MOXA2XNILVUVHFleft154 (334)°> 3000ftDME 4.0mi210
SANB1XNILVUVHFleft154 (334)°> 3000ftDME 4.0mi210
SANB1ZKIBIGVHFleft263 (83)°> 3000ftDME 4.0mi210
*) magnetic outbound (inbound) holding course
