Airports for X-Plane

Tokushima

Airport details

CountryJapan
StateTokushima Prefecture
RegionRJ
AirspaceFukuoka Ctr
MunicipalityMatsushige
Elevation37ft (11m)
TimezoneGMT +9
Coordinates34.13317, 134.59586
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeRJOS
IATA codeTKS
FAA coden/a

Communication

Tokushima Tower126.200
Tokushima Tower118.000
Tokushima Approach122.450
Tokushima Approach120.100
Tokushima Approach124.000
Tokushima Departure120.100
Tokushima Departure124.000

Approach frequencies

ILS-cat-IRW29108.918.00mi
3° GSRW29108.918.00mi

Runway info

Runway 11 / 29
 length2496m (8189ft)
 bearing101° / 281°
 width45m (148ft)
 surfaceasphalt
 blast zone67m (220ft) / 60m (197ft)

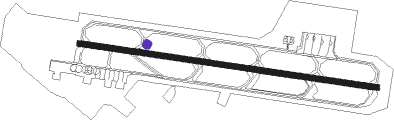

Airport layout - taxiway location N2


Taxiway locations

 N1  N2  N3  N4  N5  N6
Parking locations

 1  2  3  4  G1  G2  G3  G4
 G5  G6  G7  M1  M10  M11  M12  M13
 M14  M15  M16  M17  M18  M19  M2  M20
 M21  M3  M4  M5  M6  M7  M8  M9

Nearby beacons

codeidentifierdistbearingfrequency
TSTOKUSHIMA NDB0.5117°332
TSCTOKUSHIMA VORTAC0.6105°114.90
KJTKOMATSUSHIMA TACAN7.8167°113.55
AJDDME1040°115.60
STDDME27.8320°114.40
GBDDME28.7114°116.90
KTEKAGAWA (TAKAMATSU) VOR/DME28.8278°108.40
TZTTAKAMATSU TACAN33.9287°117.50
KIEKANSAI VOR/DME3564°111.60
OKTOKAYAMA TACAN43.2313°115.90
KCEKOBE VOR/DME43.352°111.25
NKENANKI VOR/DME47.4122°109.05
OYEKIBI VOR/DME52.8309°111
ITEITAMI VOR/DME56.850°114.75
YOEYAO VOR/DME56.865°114.60
KREKOCHI VOR/DME57.8237°113.70

Departure and arrival routes

Transition altitude14000ft
Transition level14000ft
SID end pointsdistanceoutbound heading
RW11
 YME885mi22°
 HONMA1112mi103°
 MISAK173mi120°
 TOSAR438mi180°
RW29
 YME885mi22°
 HONMA1112mi103°
 MISAK173mi120°
 TOSAR438mi180°

STAR starting pointsdistanceinbound heading
ALL
 TOSAR37.9360°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW29DATIS (294°)DATIS 3000ft
UZUPY (11mi, 307°) 1500ft
 RNAVUZUPY 1500ft
FR29 (3mi, 281°) 1500ft
RJOS (6mi, 280°) 87ft
OS293 (3mi, 282°)
OS294 (5mi, 195°)
DATIS (22mi, 101°) 3000ft
DATIS (turn)
