Airports for X-Plane

Chitose / Tomakomai - New Chitose

Airport details

CountryJapan
StateHokkaidō Prefecture
RegionRJ
AirspaceFukuoka Ctr
MunicipalityChitose
Elevation82ft (25m)
TimezoneGMT +9
Coordinates42.77528, 141.69250
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeRJCC
IATA codeCTS
FAA coden/a

Communication

New Chitose ATIS128.600
New Chitose DLVRY121.900
New Chitose Ground Control121.600
New Chitose Tower118.800
New Chitose Approach120.100
New Chitose Departure124.700

Approach frequencies

ILS-cat-IIIRW19R111.518.00mi
ILS-cat-IRW01R110.7518.00mi
ILS-cat-IRW19L109.3518.00mi
ILS-cat-IRW01L110.918.00mi
3° GSRW01R110.7518.00mi
3° GSRW19L109.3518.00mi
3° GSRW01L110.918.00mi
3° GSRW19R111.518.00mi

Runway info

Runway 01L / 19R
 length3010m (9875ft)
 bearing350° / 170°
 width61m (200ft)
 surfaceasphalt
 blast zone56m (184ft) / 56m (184ft)
Runway 01R / 19L
 length3004m (9856ft)
 bearing350° / 170°
 width61m (200ft)
 surfaceasphalt
 blast zone62m (203ft) / 56m (184ft)

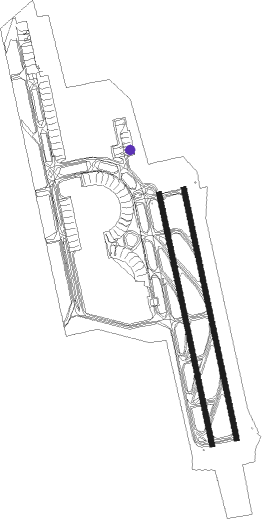

Airport layout - parking location 81


Parking locations

 0  1  10  11  12  14  15  16
 17  18  19  2  20  21  22  23
 24  25  26  27  3  44  45  46
 47  48  49  5  50  51  52  53
 54  55  56  57  58  59  6  60
 61  62  63  64  65  66  67  68
 69  7  70  71  8  80  81  82
 83  84  85  86  87  9  90  91

Nearby beacons

codeidentifierdistbearingfrequency
ZYTCHITOSE (SAPPORO) TACAN1240°109.20
CHECHITOSE VOR/DME4.5185°116.90
MKEMUKAWA (SAPPORO) VOR/DME17.6130°116.40
SPESAPPORO VOR/DME29.4316°113.90
AWEASAHIKAWA VOR/DME63.141°113.50

Departure and arrival routes

Transition altitude14000ft
Transition level14000ft
SID end pointsdistanceoutbound heading
RW01 (ALL)
 KURIS7, HOKUT7, PATRU123mi2°
 TO2BOK34mi88°
 TO2RAK35mi94°
 TOBBY8, MKE8, JUGGL1167mi188°
 HWE771mi221°
 REZOT2, SAVIT2, TEKKO1, DALBI167mi239°
RW19 (ALL)
 PATRU1, KURIS723mi2°
 TO2BOK34mi88°
 TO2RAK35mi94°
 YOSAN1, TOBBY8, MKE8, JUGGL1167mi188°
 HWE771mi221°
 TEKKO1, SAVIT2, REZOT2, DALBI167mi239°
RW19L
 HOKUT723mi2°
 YUFUT5167mi188°
RW19R
 HOKUT723mi2°
 YUFUT5167mi188°

STAR starting pointsdistanceinbound heading
RW01L
 YUKIIW26.614°
 BAMBIS39.515°
 BAMBIN22.8182°
 YUKIIE24.7320°
RW01R
 YUKIIW26.614°
 YOTEIS39.515°
 YOTEIN22.8182°
 YUKIIE24.7320°
RW19L
 YUNEYS, KAORYA, YUNEYE, NAVER, NAPROE39.515°
 YUBARI, CHE115.7182°
 KURIS2, KURIS1, KAORYN22.8182°
RW19R
 NAGANS, NACKSA39.515°
 KURIS1, NAGANN22.8182°
 CHE1, YUBARI15.7182°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW19LASIRI (137°)ASIRI 3000ft
PUNCH (6mi, 84°) 2000ft
RW19LBANSU (170°)BANSU 2000ft
PUNCH (6mi, 170°) 2000ft
RW19LKAORY (189°)KAORY 3000ft
PUNCH (6mi, 222°) 2000ft
RW19LYUNEY (207°)YUNEY 4000ft
PUNCH (6mi, 265°) 2000ft
 RNAVPUNCH 2000ft
FR19L (5mi, 170°) 2000ft
RJCC (7mi, 171°) 127ft
C9L50 (4mi, 169°)
MKE (14mi, 120°) 3000ft
MKE (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BAMBISNAVERVHFleft201 (21)°> 6000ftDME 7.0mi230
KAORYAMKENDBleft100 (280)°3000ft - 60000ft1.0min timedICAO rules
KAORYANAVERVHFleft201 (21)°> 6000ftDME 7.0mi230
NACKSAMKENDBleft100 (280)°3000ft - 60000ft1.0min timedICAO rules
NACKSANAVERVHFleft201 (21)°> 6000ftDME 7.0mi230
NAGANSGUFFIVHFright185 (5)°4000ft - 14000ft1.0min timed230
NAGANSNAVERVHFleft201 (21)°> 6000ftDME 7.0mi230
NAGANSYOSHAVHFright185 (5)°4000ft - 14000ft1.0min timed230
NAPROEMKENDBleft100 (280)°3000ft - 60000ft1.0min timedICAO rules
NAPROENAVERVHFleft201 (21)°> 6000ftDME 7.0mi230
NAVERGUFFIVHFright185 (5)°4000ft - 14000ft1.0min timed230
NAVERNAVERVHFleft201 (21)°> 6000ftDME 7.0mi230
NAVERYOSHAVHFright185 (5)°4000ft - 14000ft1.0min timed230
YOTEISNAVERVHFleft201 (21)°> 6000ftDME 7.0mi230
YUBARIMKENDBleft100 (280)°3000ft - 60000ft1.0min timedICAO rules
YUBARINAVERVHFleft201 (21)°> 6000ftDME 7.0mi230
YUKIIEMKENDBleft100 (280)°3000ft - 60000ft1.0min timedICAO rules
YUKIIEYOKOHVHFleft182 (2)°> 3000ftDME 6.1mi230
YUKIIEYUKIIVHFleft182 (2)°> 3000ftDME 6.0mi230
YUKIIWNAVERVHFleft201 (21)°> 6000ftDME 7.0mi230
YUKIIWYOKOHVHFleft182 (2)°> 3000ftDME 6.1mi230
YUKIIWYUKIIVHFleft182 (2)°> 3000ftDME 6.0mi230
YUNEYEGUFFIVHFright185 (5)°4000ft - 14000ft1.0min timed230
YUNEYENAVERVHFleft201 (21)°> 6000ftDME 7.0mi230
YUNEYEYOSHAVHFright185 (5)°4000ft - 14000ft1.0min timed230
YUNEYSGUFFIVHFright185 (5)°4000ft - 14000ft1.0min timed230
YUNEYSNAVERVHFleft201 (21)°> 6000ftDME 7.0mi230
YUNEYSYOSHAVHFright185 (5)°4000ft - 14000ft1.0min timed230
*) magnetic outbound (inbound) holding course
