Airports for X-Plane

Beirut - Rafic Hariri International

Airport details

CountryLebanon
StateMount Lebanon Governorate
RegionOL
AirspaceBeirut Ctr
MunicipalityAley District
Elevation83ft (25m)
TimezoneGMT +2
Coordinates33.82968, 35.49094
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeOLBA
IATA codeBEY
FAA coden/a

Communication

Rafic Hariri International ATIS120.600
Rafic Hariri International Ground Control121.900
Rafic Hariri International Tower118.900
Rafic Hariri International CNTR119.300
Rafic Hariri International Approach120.300

Approach frequencies

ILS-cat-IRW17109.518.00mi
ILS-cat-IRW16110.118.00mi
ILS-cat-IRW03110.718.00mi
3° GSRW17109.518.00mi
3° GSRW16110.118.00mi
3° GSRW03110.718.00mi

Runway info

Runway 03 / 21
 length3812m (12507ft)
 bearing38° / 218°
 width42m (138ft)
 surfaceconcrete
 displ threshold562m (1844ft) / 995m (3264ft)
 blast zone112m (367ft) / 118m (387ft)
Runway 16 / 34
 length3399m (11152ft)
 bearing164° / 344°
 width43m (141ft)
 surfaceconcrete
 displ threshold179m (587ft) / 0m (0ft)
 blast zone122m (400ft) / 110m (361ft)
Runway 17 / 35
 length3109m (10200ft)
 bearing176° / 356°
 width45m (148ft)
 surfaceconcrete
 displ threshold0m (0ft) / 695m (2280ft)
 blast zone50m (164ft) / 15m (49ft)

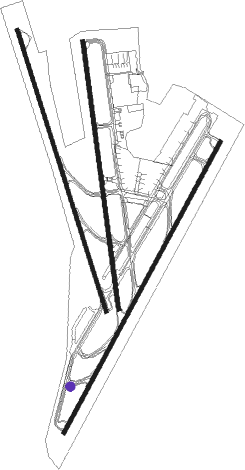

Airport layout - taxiway location B


Taxiway locations

 A  B  C  D  E  F  G  H
 K  L  M  N  O
Parking locations

 C  G  GA  M  R

Nearby beacons

codeidentifierdistbearingfrequency
KADKALDE VOR/DME1.3193°112.60
BODBOD NDB4.4353°351
BARBAYSUR VOR4.8133°113.90
CAKCHEKA VOR/DME30.124°116.20
MEZMEZZEH (DAMASCUS) NDB42.1115°358
ROPROSH-PINA VOR/DME51174°115.30
RAKLEYATE NDB5234°450
ABDABYAD (DAMASCUS) NDB55.5118°264
DAMDAMASCUS VOR/DME56.3115°116

Departure and arrival routes

Transition altitude13000ft
Transition level15000ft
SID end pointsdistanceoutbound heading
RW03
 LEBO1E60mi68°
 LATE1E47mi77°
RW17
 BOD1, LEBO1D60mi68°
 LATE1D47mi77°
RW21
 BOD1, LEBO1D60mi68°
 LATE1D47mi77°
RW34
 BOD2, LEBO2F60mi68°
 LATE2F47mi77°
RW35
 BOD2, LEBO2F60mi68°
 LATE2F47mi77°

STAR starting pointsdistanceinbound heading
RW03
 ELIK1N, ELIK2N45.290°
 KUKL1N, KUKL2N44.6119°
 BALM2N, BALM1N44.8146°
 LEBO2N, CAK1N60.3248°
RW16
 ELIK1X, ELIK2F45.290°
 KUKL1X, KUKL2F44.6119°
 BALM1X, BALM2F44.8146°
 LEBO1X, CAK2F60.3248°
RW17
 ELIK1A, ELIK2A45.290°
 KUKL1A, KUKL2A44.6119°
 BALM1A, BALM2A44.8146°
 BYBL1A, LEBO2A60.3248°
RW21
 ELIK1R45.290°
 KUKL1R44.6119°
 BALM1R44.8146°
 LEBO1R30.1204°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW03RAMLA (36°)RAMLA 3000ft
BA403 (5mi, 37°) 2000ft
 RNAVBA403 2000ft
BA404 (5mi, 37°) 2000ft
BA405 (4mi, 37°) 635ft
(2846mi, 226°) 635ft
(turn) 2000ft
RW16ZALKA (162°)ZALKA 3000ft
BA406 (5mi, 164°) 2000ft
 RNAVBA406 2000ft
BA413 (3mi, 164°) 2000ft
BA414 (5mi, 164°) 423ft
(2849mi, 226°) 490ft
(turn) 2000ft
RW17BYBLO (176°)BYBLO 4000ft
BOD (14mi, 177°) 1400ft
 RNAVBOD 1400ft
BA421 (3mi, 176°) 309ft
(2850mi, 226°) 490ft
(turn) 2000ft
RW21BA417 (193°)BA417 4000ft
BA418 (8mi, 174°) 2100ft
 RNAVBA418 2100ft
BA419 (5mi, 207°) 731ft
(2851mi, 226°) 731ft
(turn) 2000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BALM1ABYBLOVHFright352 (172)°> 5000ftDME 6.0mi230
BALM1NRAMLAVHFleft208 (28)°> 3000ftDME 6.0mi230
BALM1RBA417VHFright352 (172)°> 4000ftDME 6.0mi230
BALM1XZALKAVHFright342 (162)°> 3000ftDME 6.0mi230
BALM2ABYBLOVHFright352 (172)°> 5000ftDME 6.0mi230
BALM2FZALKAVHFright342 (162)°> 3000ftDME 6.0mi230
BALM2NRAMLAVHFleft208 (28)°> 3000ftDME 6.0mi230
BYBL1ABYBLOVHFright352 (172)°> 5000ftDME 6.0mi230
CAK1NRAMLAVHFleft208 (28)°> 3000ftDME 6.0mi230
CAK2FZALKAVHFright342 (162)°> 3000ftDME 6.0mi230
ELIK1ABYBLOVHFright352 (172)°> 5000ftDME 6.0mi230
ELIK1NRAMLAVHFleft208 (28)°> 3000ftDME 6.0mi230
ELIK1RBA417VHFright352 (172)°> 4000ftDME 6.0mi230
ELIK1XZALKAVHFright342 (162)°> 3000ftDME 6.0mi230
ELIK2ABYBLOVHFright352 (172)°> 5000ftDME 6.0mi230
ELIK2FZALKAVHFright342 (162)°> 3000ftDME 6.0mi230
ELIK2NRAMLAVHFleft208 (28)°> 3000ftDME 6.0mi230
KAD1ABYBLOVHFright352 (172)°> 5000ftDME 6.0mi230
KAD1NRAMLAVHFleft208 (28)°> 3000ftDME 6.0mi230
KAD2FZALKAVHFright342 (162)°> 3000ftDME 6.0mi230
KUKL1ABYBLOVHFright352 (172)°> 5000ftDME 6.0mi230
KUKL1NRAMLAVHFleft208 (28)°> 3000ftDME 6.0mi230
KUKL1RBA417VHFright352 (172)°> 4000ftDME 6.0mi230
KUKL1XZALKAVHFright342 (162)°> 3000ftDME 6.0mi230
KUKL2ABYBLOVHFright352 (172)°> 5000ftDME 6.0mi230
KUKL2FZALKAVHFright342 (162)°> 3000ftDME 6.0mi230
KUKL2NRAMLAVHFleft208 (28)°> 3000ftDME 6.0mi230
LEBO1RBA417VHFright352 (172)°> 4000ftDME 6.0mi230
LEBO1XZALKAVHFright342 (162)°> 3000ftDME 6.0mi230
LEBO2ABYBLOVHFright352 (172)°> 5000ftDME 6.0mi230
LEBO2NRAMLAVHFleft208 (28)°> 3000ftDME 6.0mi230
*) magnetic outbound (inbound) holding course
