Airports for X-Plane

Mexico City - Licenciado Benito Juarez Intl

Airport details

CountryMexico
StateDistrito Federal
RegionMM
AirspaceMexico Ctr
MunicipalityMexico City
Elevation7313ft (2229m)
TimezoneGMT -6
Coordinates19.43640, -99.07198
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeMMMX
IATA codeMEX
FAA coden/a

Communication

Licenciado Benito Juarez Intl ATIS127.650
Licenciado Benito Juarez Intl MEXICO Clearance DEL122.100
Licenciado Benito Juarez Intl Ground Control NORTH121.850
Licenciado Benito Juarez Intl Ground Control SOUTHWEST122.800
Licenciado Benito Juarez Intl Ground Control SOUTH121.000
Licenciado Benito Juarez Intl MEXICO Tower118.700
Licenciado Benito Juarez Intl MEXICO Tower118.550
Licenciado Benito Juarez Intl MEXICO Tower HELOS118.150
Licenciado Benito Juarez Intl MEXICO ARR WEST129.100
Licenciado Benito Juarez Intl MEXICO ARR EAST120.500
Licenciado Benito Juarez Intl MEXICO Departure WEST129.100
Licenciado Benito Juarez Intl MEXICO Departure EAST120.500

Approach frequencies

ILS-cat-IRW23L109.718.00mi
ILS-cat-IRW05R109.118.00mi
3.1° GSRW05R109.118.00mi
3° GSRW23L109.718.00mi

Runway info

Runway 05L / 23R
 length3960m (12992ft)
 bearing61° / 241°
 width45m (148ft)
 surfaceasphalt
 displ threshold485m (1591ft) / 506m (1660ft)
 blast zone0m (0ft) / 55m (180ft)
Runway 05R / 23L
 length3988m (13084ft)
 bearing61° / 241°
 width45m (148ft)
 surfaceasphalt
 displ threshold455m (1493ft) / 80m (262ft)
 blast zone255m (837ft) / 61m (200ft)

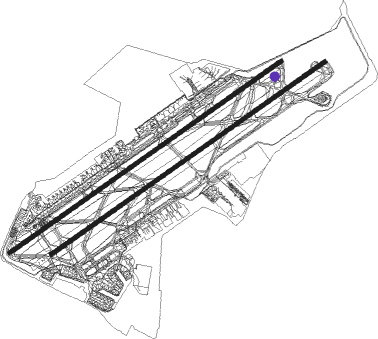

Airport layout - taxiway location H1


Taxiway locations

 A  A1  A2  A4  A5  B  B1  B2
 B3  B4  B5  B6  B7  B8  B9  BB
 C  C2  D  D1  E  E1  E2  EA
 F  G  H  H1  J  L  SS
Parking locations

 AMX  Fiscal?a  GA  MIL  North  Policia  Remote  South
 T1  T2  Tango

Nearby beacons

codeidentifierdistbearingfrequency
MEXMEXICO VOR/DME0.260°115.90
SMOSAN MATEO VOR/DME11.3307°112.10
TPXTEPEXPAN NDB12.233°359
SLMSANTA LUCIA VOR/DME18.58°116.60
TLCTOLUCA VOR/DME28.3258°114.30
CVJCUERNAVACA VOR/DME38.3198°113.90
APNAPAN VOR/DME39.973°114.80
CUACUAUTLA VOR/DME40.2165°116.30
PTJPASTEJE VOR/DME42.9286°114.50
PBCPUEBLA VOR/DME43111°115.20
TEQTEQUESQUITENGO VOR/DME46.8194°113.10
PCAPACHUCA VOR/DME47.129°112.70

Departure and arrival routes

Transition altitude18500ft
Transition level19500ft
SID end pointsdistanceoutbound heading
RW05 (ALL)
 IKLA1A61mi10°
 NOXO1A61mi81°
 UKUN1A60mi90°
 ILET1A60mi99°
 TEVO1A61mi172°
 ULEB1A66mi249°
 OVAG1A62mi257°
 SEBO1A60mi265°
 ATUR1A61mi350°
 AXIR1A60mi360°
RW23 (ALL)
 IKLA1B61mi10°
 NOXO1B61mi81°
 UKUN1B60mi90°
 ILET1B60mi99°
 TEVO1B61mi172°
 ULEB1B66mi249°
 OVAG1B62mi257°
 SEBO1B60mi265°
 ATUR1B61mi350°
 AXIR1B60mi360°

STAR starting pointsdistanceinbound heading
RW05 (ALL)
 ESPO1A60.247°
 DARA1A60.5138°
 ENAG1A61.2237°
 LARL1A60.2314°
RW23 (ALL)
 ESPO1B60.247°
 DARA1B60.5138°
 ENAG1B61.2237°
 LARL1B60.2314°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05LSUTAS (88°)SUTAS 11000ft
MX930 (5mi, 147°) 9700ft
RW05LVOLUN (33°)VOLUN 11000ft
MX930 (5mi, 334°) 9700ft
 RNAVMX930 9700ft
MX931 (4mi, 61°) 8900ft
MMMX (5mi, 62°) 7350ft
MX940 (1mi, 57°)
MX941 (8mi, 23°)
SLM (10mi, 350°) 12000ft
RW05RSUTAS (88°)SUTAS 11000ft
MX901 (5mi, 147°) 9700ft
RW05RVOLUN (33°)VOLUN 11000ft
MX901 (5mi, 334°) 9700ft
 RNAVMX901 9700ft
MX900 (4mi, 61°) 8900ft
MMMX (5mi, 60°) 7346ft
MMMX (turn)
MX950 (10mi, 87°)
MX951 (11mi, 180°)
VOLUN (15mi, 275°) 11000ft
RW23LKOZLO (241°)KOZLO 10000ft
MX401 (3mi, 241°) 9000ft
 RNAVMX401 9000ft
MX400 (2mi, 241°) 8900ft
MMMX (6mi, 241°) 7353ft
MX410 (6mi, 240°)
MX411 (13mi, 148°)
MX412 (16mi, 61°) 11000ft
MX413 (8mi, 335°)
KOZLO (5mi, 328°)
RW23RKOZLO (241°)KOZLO 10000ft
MX450 (3mi, 244°) 9000ft
 RNAVMX450 9000ft
MX451 (2mi, 241°) 8900ft
MMMX (6mi, 240°) 7351ft
MX460 (5mi, 242°)
SMO (11mi, 335°)
MX461 (6mi, 58°) 11000ft
MX462 (10mi, 61°)
KOZLO (11mi, 151°)
