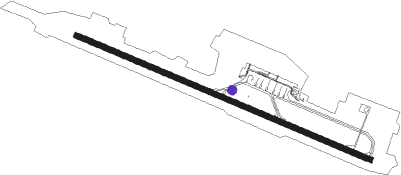

Sarajevo
Airport details
| Country | Bosnia and Herzegovina |
| State | Federation of Bosnia and Herzegovina |
| Region | LQ |
| Airspace | Sarajevo Ctr |
| Municipality | Ilidža Municipality |
| Elevation | 1708ft (521m) |
| Timezone | GMT +1 |
| Coordinates | 43.82447, 18.33177 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | LQSA |
| IATA code | SJJ |
| FAA code | n/a |
Communication
| Sarajevo ATIS | 124.125 |
| Sarajevo Ground Control | 121.900 |
| Sarajevo Tower | 118.250 |
| Sarajevo Approach | 136.450 |
Approach frequencies
| ILS-cat-I | RW11 | 110.7 | 18.00mi |
| 3.2° GS | RW11 | 110.7 | 18.00mi |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| IL | SARAJEVO NDB | 0 | 90° | 405 |
| AS | SARAJEVO NDB | 1.1 | 291° | 381 |
| KG | KOBILJACA (SARAJEVO) NDB | 7.5 | 290° | 357 |
| KEB | SARAJEVO VOR/DME | 8.3 | 47° | 116.70 |
| SAR | SARAJEVO NDB | 8.4 | 49° | 375 |
| KIS | SARAJEVO VOR/DME | 16.4 | 306° | 116 |
| MSR | MOSTAR VOR/DME | 39.6 | 220° | 116.90 |
| TU | TUZLA NDB | 39.7 | 13° | 445 |
| ZV | ZIVINICE NDB | 40.8 | 26° | 402 |
| TZU | TUZLA VOR/DME | 41.7 | 33° | 108.80 |
| MA | MOSTAR NDB | 41.9 | 218° | 355 |
| GAC | GACKO NDB | 42.1 | 162° | 370 |
| DNC | MOSTAR NDB | 46.3 | 215° | 425 |
Departure and arrival routes
| Transition altitude | 9500ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW29 | |||
| VEBA1B, VEBA1A | 41mi | 70° | |
| MITN1D, MITN1C | 40mi | 93° | |
| KUTA1B, KUTA1A | 36mi | 160° | |
| VRAN1C, VRAN1D | 35mi | 265° | |
| BOSN4W, BOSN1A | 41mi | 314° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| RW11 | |||
| VRAN1E | 34.6 | 85° | |
| GILU1A | 10.1 | 101° | |
| BOSN1N | 41.0 | 134° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW11 | TIMID (160°) | TIMID 9000ft KIS (8mi, 255°) 6800ft RIVUS (5mi, 185°) 5400ft |
| RNAV | RIVUS 5400ft SA001 (5mi, 110°) 4200ft SA011 (3mi, 110°) 3300ft SA009 (2mi, 110°) 2601ft SA013 (8mi, 358°) 5800ft TIMID (5mi, 348°) 6500ft |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| BOSN1N | KEB32 | VHF | left | 307 (127)° | > 9000ft | DME 5.4mi | ICAO rules |
| GILU1T | TIMID | VHF | right | 127 (307)° | 6500ft - 9200ft | 1.0min timed | 220 |
| KEB1T | TIMID | VHF | right | 127 (307)° | 6500ft - 9200ft | 1.0min timed | 220 |
| TODN1T | TIMID | VHF | right | 127 (307)° | 6500ft - 9200ft | 1.0min timed | 220 |
| VRAN1E | EMKES | VHF | right | 250 (70)° | > 10000ft | 1.0min timed | ICAO rules |
| *) magnetic outbound (inbound) holding course | |||||||
Disclaimer
The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
