Airports for X-Plane

Morón - Moron Air Base

Airport details

CountrySpain
StateAndalusia
RegionLE
AirspaceMadrid Ctr
MunicipalityArahal
Elevation285ft (87m)
TimezoneGMT +1
Coordinates37.17018, -5.61061
Magnetic var
Typeland
Available sinceX-Plane v10.32
ICAO codeLEMO
IATA codeOZP
FAA coden/a

Communication

Moron Air Base Tower122.100
Moron Air Base SEVILLA Approach128.500
Moron Air Base SEVILLA Approach120.000
Moron Air Base SEVILLA Approach120.800

Approach frequencies

ILS-cat-IRW20109.718.00mi
3° GSRW20109.718.00mi

Runway info

Runway 02 / 20
 length3603m (11821ft)
 bearing24° / 204°
 width61m (200ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)

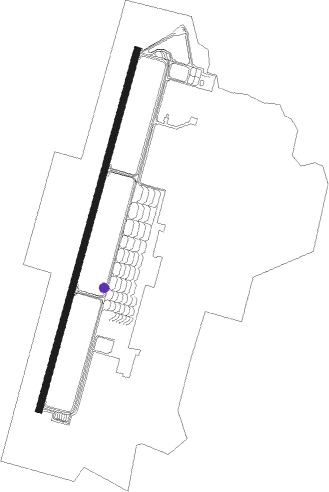

Airport layout - taxiway location TA2


Taxiway locations

 08  A  B  C  C5  C6  D  TA1
 TA2  W14
Parking locations

 P1-1  P1-11  P1-14  P1-23  P1-25  P1-29  P1-3  P1-44
 P1-46  P1-49  P1-6  P1-9  P2-1  P2-2  P3-1  P4-1

Nearby beacons

codeidentifierdistbearingfrequency
MRNMORON (SEVILLE) VOR/DME0.4301°115.50
SVLSEVILLE VOR/DME17330°113.70
SPPSEVILLE NDB17.3323°420
EECEL COPERO (SEVILLA) NDB20.5290°327
JERJEREZ NDB28230°433
JRZJEREZ VOR/DME29.1230°113
MARMARTIN VOR/DME32.8100°112.60
AOGROTA TACAN47.3235°108.60
CDBCORDOBA VOR/DME54.548°112.40
VJFVEJER DE LA FRONTERA VOR/DME58.5201°117.80

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW02
 MD125I110mi9°
 MD98I128mi64°
 MD169I73mi136°
 MGOLFO48mi256°
 MD123I49mi291°
 MR86I50mi314°
RW20
 MD125I110mi9°
 HIJ2X, HIJ2W84mi21°
 ALCO2W66mi58°
 MD98I128mi64°
 MGA2W63mi106°
 MD169I73mi136°
 VJF2W59mi201°
 CLAN2W67mi239°
 MGOLFO48mi256°
 ANDE1W49mi283°
 MD123I49mi291°
 SANT1W44mi306°
 MR86I50mi314°

STAR starting pointsdistanceinbound heading
ALL
 MGOLFV48.176°
 MD123V48.5111°
 MR86V49.6134°
 MD125V109.5189°
 HIJ1Y83.9201°
 BLN1Y111.3244°
 MD98V127.7244°
 MD169V73.4316°
