Airports for X-Plane

Columbus - Bolton Fld

Airport details

CountryUnited States of America
StateOhio
RegionK5
AirspaceIndianapolis Ctr
MunicipalityColumbus
Elevation902ft (275m)
TimezoneGMT -5
Coordinates39.90117, -83.13692
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKTZR
IATA codeTZR
FAA codeTZR

Communication

BOLTON FLD AWOS 3135.925
BOLTON FLD UNICOM122.950
BOLTON FLD CTAF128.100
BOLTON FLD Ground Control121.800
BOLTON FLD Tower128.100
BOLTON FLD COLUMBUS Approach/Departure134.350
BOLTON FLD COLUMBUS Approach/Departure132.300
BOLTON FLD COLUMBUS Departure119.150

Approach frequencies

ILS-cat-IRW04111.718.00mi
3° GSRW04111.718.00mi

Runway info

Runway 4 / 22
 length1678m (5505ft)
 bearing39° / 219°
 width30m (100ft)
 surfaceasphalt

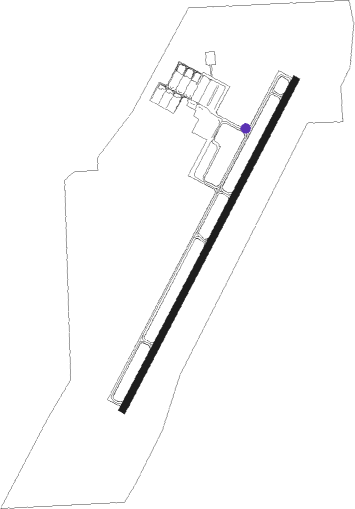

Airport layout - taxiway location B


Taxiway locations

 A  A1  A2  A3  A4  A5  A6  B

Nearby beacons

codeidentifierdistbearingfrequency
BUBOUTN (COLUMBUS) NDB5.8220°230
OSFULER (COLUMBUS) NDB10.7340°515
DDCOBBS (COLUMBUS) NDB10.9144°253
LCKRICKENBACKER (COLUMBUS) TACAN11.1114°134.20
LCPICKL (COLUMBUS) NDB13.994°376
CSSCOURT HOUSE (WASHINGTON) NDB21.5220°414
XUBYELLOW BUD (CIRCLEVILLE) VOR23.6157°112.50
APEAPPLETON VORTAC29.366°116.70
XSFSPRINGFIELD TACAN32.6265°133.80
SGHDME32.8265°113.20
ILAIRBO (WILMINGTON) NDB37236°407
MXQMIDWEST (WILMINGTON) VOR/DME41.7235°112.90
FFOPATTERSON (DAYTON) TACAN42.6265°115.20
BUDBUCKEYE (MARION) VOR436°109.80
EOPWAVERLY NDB45164°385
HWCUBLA (WILMINGTON) NDB47.4233°299
RODROSEWOOD VORTAC47.6293°117.50
MFMANNS (MANSFIELD) NDB60.839°372
MFDMANSFIELD VORTAC63.229°108.80

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW04
 NCLUS212mi220°
RW22
 NCLUS212mi220°

STAR starting pointsdistanceinbound heading
ALL
 JAKTZ122.742°
 DUBLN125.2165°
 CBUSS250.6226°
 CLPRR149.4285°
 SCRLT143.4297°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04MECAN (116°)MECAN
WATIG (24mi, 148°) 2700ft
WATIG (turn) 2700ft
RW04SHIRT (58°)SHIRT
WATIG (15mi, 72°) 2700ft
 RNAVWATIG 2700ft
JOXOK (7mi, 39°) 2700ft
KTZR (6mi, 39°) 941ft
(5089mi, 116°) 1163ft
OYILU (5087mi, 296°)
MECAN (21mi, 285°) 3000ft
MECAN (turn)
RW22SIZES (176°)SIZES
HARIP (7mi, 117°) 3000ft
 RNAVHARIP 3000ft
OPOKE (5mi, 219°) 2300ft
KTZR (5mi, 219°) 944ft
(5089mi, 116°) 1154ft
WATIG (5095mi, 296°) 2700ft
WATIG (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DUBLN1IKALEVHFright261 (81)°DME 15.0miICAO rules
DUBLN1JADUBVHFright260 (80)°DME 15.0miICAO rules
JAKTZ1JAKTZVHFleft251 (71)°DME 15.0miICAO rules
JAKTZ1JIMURVHFleft241 (61)°DME 15.0miICAO rules
*) magnetic outbound (inbound) holding course
