Airports for X-Plane

Eldoret - Eldoret Intl

Airport details

CountryKenya
StateUasin Gishu County
RegionHK
AirspaceNairobi Ctr
MunicipalityEldoret
Elevation6939ft (2115m)
TimezoneGMT +3
Coordinates0.40401, 35.23671
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeHKEL
IATA codeEDL
FAA coden/a

Communication

ELDORET INTL Tower118.400
ELDORET INTL Approach119.400
ELDORET INTL RADAR121.100

Approach frequencies

ILS-cat-IRW08110.518.00mi
3° GSRW08110.518.00mi

Runway info

Runway 08 / 26
 length3497m (11473ft)
 bearing79° / 259°
 width45m (148ft)
 surfaceasphalt

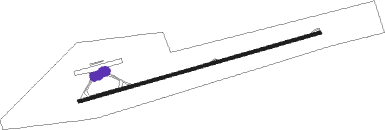

Airport layout - parking location New


Taxiway locations

 A  B
Parking locations

 New

Nearby beacons

codeidentifierdistbearingfrequency
ELDELDORET VOR/DME0.3295°114.70
KIVKISUMU VOR/DME42.8226°114.10
NAKLANET VOR/DME69.6128°115.10

Departure and arrival routes

Transition altitude10000ft
Transition level11000ft
SID end pointsdistanceoutbound heading
RW08
 KIDU1Y50mi150°
RW26
 KIDU1Z50mi150°

STAR starting pointsdistanceinbound heading
RW08
 GERI2A50.345°
 GONG2A56.0152°
 KIME2Z47.0202°
 DUPS1A49.8317°
RW26
 GERI2B50.345°
 GONG2B, GONG1C56.0152°
 KIME1C, KIME2B47.0202°
 BEND1C43.8302°
 DUPS1B49.8317°
 KIDU1C50.0330°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW08TIBAB (57°)TIBAB
EL007 (6mi, 9°) 10000ft
RW08TIMAK (100°)TIMAK
EL007 (6mi, 149°) 10000ft
 RNAVEL007 10000ft
EL008 (5mi, 79°) 9000ft
HKEL (8mi, 79°) 6889ft
(2116mi, 269°) 9000ft
TIBAB (2103mi, 90°)
TIBAB (turn)
RW26TILEV (237°)TILEV
EL010 (6mi, 189°) 10000ft
RW26UVANA (280°)UVANA
EL010 (6mi, 329°) 10000ft
 RNAVEL010 10000ft
EL009 (5mi, 259°) 9000ft
HKEL (7mi, 259°) 6995ft
HKEL (turn) 9000ft
UVANA (15mi, 100°)
UVANA (turn)
