Airports for X-Plane

Nador - Nador El Aroui

Airport details

CountryMorocco
StateNador Province
RegionGM
AirspaceCasablanca Ctr
MunicipalityBni Oukil Oulad M'Hand
Elevation574ft (175m)
TimezoneGMT +0
Coordinates34.98944, -3.02778
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeGMMW
IATA codeNDR
FAA coden/a

Communication

Nador El Aroui Tower118.650
Nador El Aroui Tower136.200

Approach frequencies

ILS-cat-IRW08108.718.00mi
3.2° GSRW08108.718.00mi

Runway info

Runway 08 / 26
 length2995m (9826ft)
 bearing80° / 260°
 width46m (150ft)
 surfaceasphalt

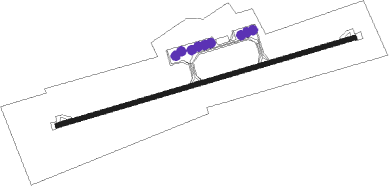

Airport layout - parking location Gate


Taxiway locations
Parking locations

Nearby beacons

codeidentifierdistbearingfrequency
ARINADOR VOR/DME0.1209°116
MELMELILLA VOR/DME17.813°114.25
MIAMELILLA NDB19.413°292
MLLDME19.413°117.40
ALMAL HOCEIMA VOR/DME41.7284°115
ALUAL HOCEIMA NDB41.7283°401
ALBALBORAN NDB56.9360°519

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW08MW085 (104°)MW085 5000ft
MW083 (8mi, 165°) 4100ft
RW08MW087 (62°)MW087 4800ft
MW083 (6mi, 346°) 4100ft
RW08SOBGO (347°)SOBGO 5000ft
MW087 (15mi, 261°) 4800ft
MW083 (6mi, 346°) 4100ft
 RNAVMW083 4100ft
MW081 (5mi, 80°) 3600ft
GMMW (10mi, 80°) 650ft
MW264 (12mi, 80°) 2800ft
SOBGO (14mi, 238°) 5000ft
SOBGO (turn) 5000ft
RW26MW266 (282°)MW266 3600ft
MW264 (6mi, 346°) 3600ft
RW26SOBGO (347°)SOBGO 5000ft
MW266 (13mi, 80°) 3600ft
MW264 (6mi, 346°) 3600ft
 RNAVMW264 3600ft
MW262 (5mi, 260°) 2700ft
GMMW (7mi, 260°) 621ft
MW568 (8mi, 271°) 2100ft
ARI (8mi, 92°) 4800ft
SOBGO (6mi, 166°) 5000ft
SOBGO (turn) 5000ft
