Airports for X-Plane

Gran Canaria Island - Gran Canaria

Airport details

CountrySpain
StateCanary Islands
RegionGC
AirspaceCanaries Ctr
MunicipalityTelde
Elevation78ft (24m)
TimezoneGMT +0
Coordinates27.93194, -15.38667
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeGCLP
IATA codeLPA
FAA coden/a

Communication

Gran Canaria Gran Canaria ATIS118.600
Gran Canaria Gran Canaria Ground Control121.700
Gran Canaria Gran Canaria Tower118.300
Gran Canaria Gran Canaria Approach121.300
Gran Canaria Canarias Approach124.300

Approach frequencies

ILS-cat-IRW03L109.918.00mi
ILS-cat-IRW21R110.718.00mi
3° GSRW03L109.918.00mi
3° GSRW21R110.718.00mi

Runway info

Runway 03L / 21R
 length3119m (10233ft)
 bearing24° / 204°
 width45m (148ft)
 surfaceasphalt
 blast zone194m (636ft) / 230m (755ft)
Runway 03R / 21L
 length3113m (10213ft)
 bearing24° / 204°
 width45m (148ft)
 surfaceasphalt
 blast zone199m (653ft) / 205m (673ft)

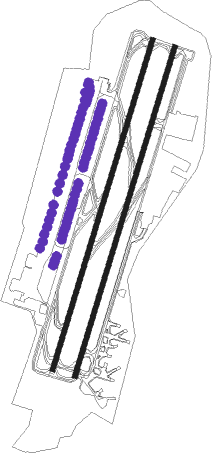

Airport layout - parking location Gate


Taxiway locations

 K  R1  R18  R4  R7  R8  R9L  R9R
 S1  S2  S3  S5  S6  S7  Z1  Z2
 Z6  Z7  Z8
Parking locations

 AG  GA  Gate  L12  LH02  LH03  LH04  Mil
 Military

Nearby beacons

codeidentifierdistbearingfrequency
TGNGRAN CANARIA TACAN0.5198°115.60
VRGRAN CANARIA NDB4.8204°365
LPCGRAN CANARIA SOUTH VOR/DME6.6204°115
GDVGRAN CANARIA VOR/DME9344°112.90
TFNTENERIFE-NORTH VOR/DME59.1304°117.70
LROTENERIFE-LOS RODEOS VOR/DME60.9300°116.20
FPTENERIFE-NORTH NDB61.9300°420

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW03L
 KONB6A202mi1°
 SAMA8A185mi18°
 SARA2A127mi34°
 VAST8A182mi35°
 RASE2A68mi51°
 KORA9A183mi57°
 KOPU1A48mi77°
 COST4A96mi109°
 REMG2A51mi172°
 ODEG2A79mi221°
 HIE5A133mi267°
 TFS3A69mi273°
 ARAC4A113mi284°
 TFN4A59mi304°
 BIMB7A212mi350°
RW03R
 KONB6A202mi1°
 SAMA8A185mi18°
 SARA2A127mi34°
 VAST8A182mi35°
 RASE2A68mi51°
 KORA9A183mi57°
 KOPU1A48mi77°
 COST4A96mi109°
 REMG2A51mi172°
 ODEG2A79mi221°
 HIE5A133mi267°
 TFS3A69mi273°
 ARAC4A113mi284°
 TFN4A59mi304°
 BIMB7A212mi350°
RW21L
 KONB3B202mi1°
 SAMA5B185mi18°
 SARA1B127mi34°
 VAST5B182mi35°
 RASE1B68mi51°
 KORA7B183mi57°
 KOPU1B48mi77°
 COST4B96mi109°
 REMG2B51mi172°
 ODEG2B79mi221°
 HIE3B133mi267°
 TFS1B69mi273°
 ARAC3B113mi284°
 TFN3B59mi304°
 BIMB4B212mi350°
RW21R
 KONB3B202mi1°
 SAMA5B185mi18°
 SARA1B127mi34°
 VAST5B182mi35°
 RASE1B68mi51°
 KORA7B183mi57°
 KOPU1B48mi77°
 COST4B96mi109°
 REMG2B51mi172°
 ODEG2B79mi221°
 HIE3B133mi267°
 TFS1B69mi273°
 ARAC3B113mi284°
 TFN3B59mi304°
 BIMB4B212mi350°

STAR starting pointsdistanceinbound heading
ALL
 ODEG2P78.741°
 URQU1P107.958°
 HIE2C, HIE2P132.887°
 TERT3K, TERT8Z191.4231°
 RUSI6Z, RUSI1K147.8249°
 LORP1Z, LORP1P, LORP1K, LORP1C42.5249°
 COST1C, COST1P95.9289°
 REMG2P50.9352°
RW03 (ALL)
 ORTI5C, ORTI1P217.4161°
 KONB5C, KONB1P202.3181°
 SAMA5C, SAMA1P185.3198°
 TERT8C, TERT3B191.4231°
 RUSI6C, RUSI1P147.8249°
 REMG2C50.9352°
RW21 (ALL)
 ORTI4D, ORTI1Q217.4161°
 KONB4D, KONB1R202.3181°
 SAMA4D, SAMA1G185.3198°
 TERT6D, TERT3R191.4231°
 RUSI2D, RUSI1R147.8249°
 REMG2C50.9352°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
COST1PENETAVHFright80 (260)°> 5000ftDME 5.0miICAO rules
HIE2CLPCNDBright205 (25)°> 5000ft1.0min timed210
HIE2PLPCNDBright205 (25)°> 5000ft1.0min timed210
KONB1RMADASVHFright11 (191)°> 6000ftDME 5.4miICAO rules
KONB4DMADASVHFright11 (191)°> 6000ftDME 5.4miICAO rules
KONB5CLPCNDBright205 (25)°> 5000ft1.0min timed210
LORP1KLALTOVHFleft139 (319)°> 5000ftDME 5.0miICAO rules
LORP1PENETAVHFright80 (260)°> 5000ftDME 5.0miICAO rules
ODEG2CLPCNDBright205 (25)°> 5000ft1.0min timed210
ODEG2PLPCNDBright205 (25)°> 5000ft1.0min timed210
ORTI1QMADASVHFright11 (191)°> 6000ftDME 5.4miICAO rules
ORTI4DMADASVHFright11 (191)°> 6000ftDME 5.4miICAO rules
ORTI5CLPCNDBright205 (25)°> 5000ft1.0min timed210
REMG2CLPCNDBright205 (25)°> 5000ft1.0min timed210
REMG2PLPCNDBright205 (25)°> 5000ft1.0min timed210
RUSI1KLALTOVHFleft139 (319)°> 5000ftDME 5.0miICAO rules
RUSI1RENETAVHFright80 (260)°> 5000ftDME 5.0miICAO rules
RUSI2DENETAVHFright80 (260)°> 5000ftDME 5.0miICAO rules
RUSI6CENETAVHFright80 (260)°> 5000ftDME 5.0miICAO rules
SAMA1GMADASVHFright11 (191)°> 6000ftDME 5.4miICAO rules
SAMA4DMADASVHFright11 (191)°> 6000ftDME 5.4miICAO rules
SAMA5CLPCNDBright205 (25)°> 5000ft1.0min timed210
TERT3KLALTOVHFleft139 (319)°> 5000ftDME 5.0miICAO rules
TERT3RENETAVHFright80 (260)°> 5000ftDME 5.0miICAO rules
TERT6DENETAVHFright80 (260)°> 5000ftDME 5.0miICAO rules
TERT8CENETAVHFright80 (260)°> 5000ftDME 5.0miICAO rules
TERT8ZLALTOVHFleft139 (319)°> 5000ftDME 5.0miICAO rules
URQU1CLPCNDBright205 (25)°> 5000ft1.0min timed210
URQU1PLPCNDBright205 (25)°> 5000ft1.0min timed210
*) magnetic outbound (inbound) holding course
