Airports for X-Plane

East London

Airport details

CountrySouth Africa
StateEastern Cape
RegionFA
AirspaceCape Town Ctr
MunicipalityEast London
Elevation435ft (133m)
TimezoneGMT +2
Coordinates-33.03512, 27.82135
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeFAEL
IATA codeELS
FAA coden/a

Communication

East London ATIS126.650
East London Ground Control122.650
East London Tower118.300
East London Approach120.100

Approach frequencies

ILS-cat-IRW11110.918.00mi
ILS-cat-IRW29109.918.00mi
3° GSRW11110.918.00mi
3° GSRW29109.918.00mi

Runway info

Runway 11 / 29
 length1936m (6352ft)
 bearing83° / 263°
 width46m (150ft)
 surfaceasphalt
Runway 06 / 24
 length1586m (5203ft)
 bearing42° / 222°
 width46m (150ft)
 surfaceasphalt

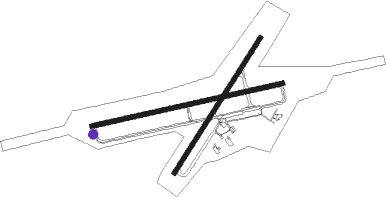

Airport layout - taxiway location A1


Taxiway locations

 A  A1  A2  A3  A4  C3  G
Parking locations

 GA  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
ELVEAST LONDON VOR/DME0.1136°114.50

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW11ETMOT (109°)ETMOT 4500ft
EL1T1 (6mi, 171°) 3500ft
RW11IBMON (83°)IBMON 4500ft
EL1T1 (6mi, 83°) 3500ft
RW11OKBUR (56°)OKBUR 4500ft
EL1T1 (6mi, 351°) 3500ft
 RNAVEL1T1 3500ft
EL1F1 (5mi, 83°) 2000ft
EL1MP (5mi, 83°) 483ft
EL1MP (turn) 990ft
EL1M1 (8mi, 83°) 2020ft
EL1M2 (10mi, 170°) 3550ft
OKBUR (18mi, 274°) 4500ft
OKBUR (turn) 4500ft
RW29EGRAL (289°)EGRAL 4500ft
EL2T1 (6mi, 350°) 3400ft
RW29IMVAV (263°)IMVAV 4500ft
EL2T1 (6mi, 263°) 3400ft
RW29UTABU (237°)UTABU 4500ft
EL2T1 (6mi, 170°) 3400ft
 RNAVEL2T1 3400ft
EL2F1 (5mi, 263°) 2000ft
EL2MP (5mi, 263°) 435ft
EL2MP (turn) 900ft
EL2M1 (8mi, 263°) 1800ft
EL2M2 (11mi, 171°) 3510ft
EGRAL (18mi, 71°) 4500ft
EGRAL (turn) 4500ft
