Airports for X-Plane

Amsterdam - Schiphol

Airport details

CountryNetherlands
StateNorth Holland
RegionEH
AirspaceAmsterdam Ctr
MunicipalityHaarlemmermeer
Elevation-11ft (-3m)
TimezoneGMT +1
Coordinates52.30806, 4.76417
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEHAM
IATA codeAMS
FAA coden/a

Communication

Schiphol ATIS ARR132.980
Schiphol ATIS Departure122.200
Schiphol Clearance DEL121.975
Schiphol Ground Control121.700
Schiphol Ground Control121.800
Schiphol Ground Control121.900
Schiphol Tower119.225
Schiphol Tower 18C/36C118.100
Schiphol Tower 06/24119.900
Schiphol Approach119.050
Schiphol Departure121.205

Approach frequencies

ILS-cat-IIIRW06110.5518.00mi
ILS-cat-IIIRW36C108.7518.00mi
ILS-cat-IIIRW27111.5518.00mi
ILS-cat-IIIRW18R110.118.00mi
ILS-cat-IIIRW18C109.518.00mi
ILS-cat-IIIRW36R111.9518.00mi
ILS-cat-IRW22109.1518.00mi
3° GSRW18C109.518.00mi
3° GSRW18R110.118.00mi
3° GSRW22109.1518.00mi
3° GSRW36C108.7518.00mi
3° GSRW06110.5518.00mi
3° GSRW27111.5518.00mi
3° GSRW36R111.9518.00mi

Runway info

Runway 09 / 27
 length3444m (11299ft)
 bearing88° / 268°
 width45m (148ft)
 surfaceasphalt
 displ threshold89m (292ft) / 0m (0ft)
Runway 18L / 36R
 length3396m (11142ft)
 bearing185° / 5°
 width45m (148ft)
 surfaceasphalt
 displ threshold574m (1883ft) / 0m (0ft)
Runway 18C / 36C
 length3299m (10823ft)
 bearing185° / 5°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 450m (1476ft)
Runway 18R / 36L
 length3798m (12461ft)
 bearing185° / 5°
 width60m (197ft)
 surfaceasphalt
 displ threshold270m (886ft) / 0m (0ft)
Runway 06 / 24
 length3436m (11273ft)
 bearing69° / 249°
 width45m (148ft)
 surfaceasphalt
 displ threshold250m (820ft) / 0m (0ft)
Runway 04 / 22
 length2021m (6631ft)
 bearing55° / 235°
 width45m (148ft)
 surfaceasphalt
 blast zone0m (0ft) / 255m (837ft)

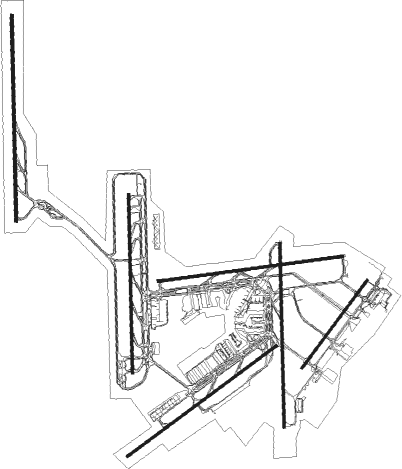

Airport layout


Taxiway locations

 A  A10  A12  A14  A16  A24  A3  A4W
 A5  A8  A9N  A9S  B  C2  E2  E3
 E4  E5  E6  G  G1  G2  G3  G4
 G5  J  N1  N2  N3  N4  N5  N9
 P6  Q  R  S1  S2  S3  S5  S6
 S7E  S7W  V  V1  V2  V3  V4  VE
 VN  VS  W1  W10  W11  W12  W2  W3
 W4  W5  W6  W7  W8  W9  Y  Y1
 Y2  Z  Z1  Z2
Parking locations

 A31  A33  A34  A35  A41  A42  A43  A44
 A45  A46  A51  A52  A53  A54  A55  A56
 A61  A62  A63  A64  A65  B13  B15  B16
 B17  B20  B23  B24  B27  B28  B31  B32
 B35  B36  C10  C11  C12  C13  C14  C15
 C16  C18  C4  C5  C6  C7  C8  C9
 D10  D12  D14  D16  D18  D2  D22  D23
 D24  D25  D26  D27  D28  D29  D3  D31
 D4  D41  D43  D44  D47  D48  D49  D5
 D51  D52  D53  D54  D55  D56  D57  D7
 D8  D88  D90  D92  D93  D94  D95  E17
 E18  E19  E2  E20  E22  E24  E3  E4
 E5  E6  E7  E72  E75  E77  E8  E9
 F3  F4  F5  F6  F7  F8  F9  G2
 G3  G4  G5  G6  G7  G8  G9  H1
 H2  H3  H4  H5  H6  H7  K11  K12
 K13  K14  K15  K16  K20  K21  K22  K23
 K24  K25  K26  K27  K28  K35  K36  K37
 K38  K71  K72  K73  K74  KLM  M62  M66
 M70  M74  M77  M79  R72  R74  R77  R80
 R81  R82  R83  R84  R85  R86  R87  S72
 S74  S77  S79  S82  S84  S87  S90  S92
 S94  S96  U21  U28  U30

Nearby beacons

codeidentifierdistbearingfrequency
SPLSCHIPHOL (AMSTERDAM) VOR/DME1.5329°108.40
AMSDME2.6293°113.95
PAMPAMPUS VOR/DME12.185°117.80
SPYDME14.321°113.30
FRTDME18.2179°117.15
RTMROTTERDAM VOR/DME22.6220°110.40
FRODME28.679°111.40
HDRHELDER DME35.90°115.55
GZRGILZE-RIJEN TACAN45167°116.40
VKLVOLKEL TACAN52.4125°108.30
WDTWOENSDRECHT TACAN53.9206°115
EHVEINDHOVEN TACAN56.3145°117.20
LWDLEEUWARDEN TACAN65.647°114.70

Departure and arrival routes

Transition altitude3000ft
SID end pointsdistanceoutbound heading
RW04
 ANDI3F32mi50°
 ARNE3F50mi99°
 REND2F44mi107°
 LOPI2F26mi136°
 KUDA2F56mi204°
 VOLA2F50mi256°
 BERG2F30mi317°
RW06
 ANDI3R, ANDI2T32mi50°
 ARNE3R, ARNE3T50mi99°
 REND2T, REND2R44mi107°
 LOPI2R26mi136°
 KUDA2T, KUDA2R56mi204°
 VOLA2R50mi256°
 BERG3R30mi317°
RW09
 ANDI2N32mi50°
 ARNE3N50mi99°
 REND2N44mi107°
 LOPI2N26mi136°
 KUDA2N56mi204°
 VALK5M, IDRI2N50mi256°
 BERG3N30mi317°
RW18C
 TORG2X, BETU5Y32mi50°
 ELPA3X50mi99°
 EDUP3X44mi107°
 ROVE3X26mi136°
 LARA2X56mi204°
 DENA6X50mi256°
 WISP3X30mi317°
RW18L
 ANDI3E32mi50°
 ARNE4E50mi99°
 REND2E44mi107°
 LOPI4E26mi136°
 KUDA2E56mi204°
 VALK5E50mi256°
 BERG4E30mi317°
RW22
 ANDI3G32mi50°
 ARNE4G50mi99°
 REND2G44mi107°
 LOPI2G26mi136°
 KUDA2G56mi204°
 VALK3G50mi256°
 BERG2G30mi317°
RW24
 AND2SY, ANDI2S, SPY4KY, SPY4K32mi50°
 ARNE3S, ARN3SY50mi99°
 REN2SY, REND2S44mi107°
 LOP3SY, LOPI3S26mi136°
 KUD3SY, KUDA3S56mi204°
 VALK3S50mi256°
 BERG2S30mi317°
RW27
 SPY2P32mi50°
 ARNE3P50mi99°
 REND2P44mi107°
 LOPI2P26mi136°
 KUDA2P56mi204°
 VOLA2P50mi256°
 BERG2P30mi317°
RW36C
 NOPS3W32mi50°
 NYKE5W50mi99°
 IVLU4W44mi107°
 OGIN4W26mi136°
 WOOD3W56mi204°
RW36L
 SPY4V32mi50°
 ARNE2Z, ARNE2V50mi99°
 REND2V, REND2Z44mi107°
 LOPI4V, LOPI2Z26mi136°
 KUDA2V, KUDA2Z56mi204°
 VOLA2Z, VOLA3V50mi256°
 BERG5V, BERG2Z30mi317°

STAR starting pointsdistanceinbound heading
ALL
 HELE2A72.440°
 DENU3A76.346°
 REDF1A84.585°
 LAMS2A69.5103°
 MOLI2A69.1107°
 TOPA2A78.8132°
 EEL1A, EEL1B86.1246°
 NORK2B, NORK2A81.5272°
 RKN2A, RKN2B74.3275°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04ARTIP (256°)ARTIP
SPL (32mi, 258°)
AM201 (10mi, 174°)
AM202 (4mi, 235°)
AM203 (3mi, 298°)
NELFE (2mi, 346°) 2000ft
RW04RIVER (58°)RIVER
SPL (34mi, 56°)
SPL (turn)
AM201 (10mi, 174°)
AM202 (4mi, 235°)
AM203 (3mi, 298°)
NELFE (2mi, 346°) 2000ft
RW04SUGOL (105°)SUGOL
SPL (31mi, 104°)
AM201 (10mi, 174°)
AM202 (4mi, 235°)
AM203 (3mi, 298°)
NELFE (2mi, 346°) 2000ft
 RNAVNELFE 2000ft
AM204 (3mi, 55°) 2000ft
EHAM (6mi, 47°) 37ft
AM205 (13mi, 59°) 2000ft
RW06ARTIP (256°)ARTIP
SPL (32mi, 258°)
AM101 (4mi, 278°)
AM102 (10mi, 249°)
AM103 (3mi, 134°)
OSRON (2mi, 101°) 2000ft
RW06RIVER (58°)RIVER
SPL (34mi, 56°)
AM101 (4mi, 278°)
AM102 (10mi, 249°)
AM103 (3mi, 134°)
OSRON (2mi, 101°) 2000ft
RW06SUGOL (105°)SUGOL
SPL (31mi, 104°)
SPL (turn)
AM101 (4mi, 278°)
AM102 (10mi, 249°)
AM103 (3mi, 134°)
OSRON (2mi, 101°) 2000ft
 RNAVOSRON 2000ft
AM609 (3mi, 69°) 2000ft
EHAM (8mi, 66°) 39ft
AM104 (6mi, 72°)
AM105 (5mi, 69°) 2000ft
RW09ARTIP (256°)ARTIP
SPL (32mi, 258°)
AM220 (6mi, 299°)
AM221 (7mi, 268°)
AM222 (3mi, 175°)
IFTAZ (2mi, 123°) 2000ft
RW09RIVER (58°)RIVER
SPL (34mi, 56°)
SPL (turn)
AM220 (6mi, 299°)
AM221 (7mi, 268°)
AM222 (3mi, 175°)
IFTAZ (2mi, 123°) 2000ft
RW09SUGOL (105°)SUGOL
SPL (31mi, 104°)
SPL (turn)
AM220 (6mi, 299°)
AM221 (7mi, 268°)
AM222 (3mi, 175°)
IFTAZ (2mi, 123°) 2000ft
 RNAVIFTAZ 2000ft
AM223 (3mi, 88°) 2000ft
EHAM (7mi, 91°) 38ft
AM224 (12mi, 87°) 2000ft
RW18CALINA (179°)ALINA
SIDNI (5mi, 185°) 2000ft
AM630 (3mi, 185°) 2000ft
RW18CART5B (5°)ARTIP
AM601 (28mi, 284°)
AM602 (6mi, 270°)
AM603 (6mi, 270°)
NIRSI (6mi, 180°)
AM607 (5mi, 90°)
AM126 (3mi, 115°) 3400ft
AM128 (3mi, 157°)
AM130 (3mi, 171°)
AM630 (2mi, 155°) 2000ft
RW18CARTIP (256°)ARTIP
SPL (32mi, 258°)
SPL (turn)
AM120 (6mi, 61°)
AM121 (6mi, 6°)
AM122 (3mi, 272°)
SIDNI (2mi, 246°) 2000ft
AM630 (3mi, 185°) 2000ft
RW18CNIR2D (5°)NIRSI
AM607 (5mi, 90°)
AM126 (3mi, 115°) 3400ft
AM128 (3mi, 157°)
AM130 (3mi, 171°)
AM630 (2mi, 155°) 2000ft
RW18CRIV5B (5°)RIVER
AM605 (9mi, 354°)
NIRSI (34mi, 38°)
AM607 (5mi, 90°)
AM126 (3mi, 115°) 3400ft
AM128 (3mi, 157°)
AM130 (3mi, 171°)
AM630 (2mi, 155°) 2000ft
RW18CRIVER (58°)RIVER
SPL (34mi, 56°)
AM120 (6mi, 61°)
AM121 (6mi, 6°)
AM122 (3mi, 272°)
SIDNI (2mi, 246°) 2000ft
AM630 (3mi, 185°) 2000ft
RW18CSUG5B (5°)SUGOL
AM606 (17mi, 104°)
NIRSI (11mi, 38°)
AM607 (5mi, 90°)
AM126 (3mi, 115°) 3400ft
AM128 (3mi, 157°)
AM130 (3mi, 171°)
AM630 (2mi, 155°) 2000ft
RW18CSUGOL (105°)SUGOL
SPL (31mi, 104°)
AM120 (6mi, 61°)
AM121 (6mi, 6°)
AM122 (3mi, 272°)
SIDNI (2mi, 246°) 2000ft
AM630 (3mi, 185°) 2000ft
 RNAVAM630 2000ft
EHAM (8mi, 173°) 38ft
AM123 (12mi, 193°) 2000ft
RW18RART5B (5°)ARTIP
AM601 (28mi, 284°)
AM602 (6mi, 270°)
AM603 (6mi, 270°)
NIRSI (6mi, 180°)
AM607 (5mi, 90°)
AM133 (3mi, 119°) 3400ft
AM135 (3mi, 160°)
AM137 (turn)
AM621 (1mi, 185°) 2000ft
RW18RARTIP (256°)ARTIP
SPL (32mi, 258°)
AM240 (9mi, 304°)
AM241 (6mi, 5°)
AM242 (3mi, 92°)
PEVOS (2mi, 120°) 2000ft
AM621 (3mi, 185°) 2000ft
RW18RDIBRU (173°)DIBRU
PEVOS (4mi, 185°) 2000ft
AM621 (3mi, 185°) 2000ft
RW18RNIR1R (5°)NIRSI
AM607 (5mi, 90°)
AM133 (3mi, 119°) 3400ft
AM135 (3mi, 160°)
AM137 (turn)
AM621 (1mi, 185°) 2000ft
RW18RRIV5B (5°)RIVER
AM605 (9mi, 354°)
NIRSI (34mi, 38°)
AM607 (5mi, 90°)
AM133 (3mi, 119°) 3400ft
AM135 (3mi, 160°)
AM137 (turn)
AM621 (1mi, 185°) 2000ft
RW18RRIVER (58°)RIVER
SPL (34mi, 56°)
AM240 (9mi, 304°)
AM241 (6mi, 5°)
AM242 (3mi, 92°)
PEVOS (2mi, 120°) 2000ft
AM621 (3mi, 185°) 2000ft
RW18RSUG5B (5°)SUGOL
AM606 (17mi, 104°)
NIRSI (11mi, 38°)
AM607 (5mi, 90°)
AM133 (3mi, 119°) 3400ft
AM135 (3mi, 160°)
AM137 (turn)
AM621 (1mi, 185°) 2000ft
RW18RSUGOL (105°)SUGOL
SPL (31mi, 104°)
SPL (turn)
AM240 (9mi, 304°)
AM241 (6mi, 5°)
AM242 (3mi, 92°)
PEVOS (2mi, 120°) 2000ft
AM621 (3mi, 185°) 2000ft
 RNAVAM621 2000ft
EHAM (9mi, 164°) 37ft
EHAM (turn) 500ft
AM624 (8mi, 282°) 2000ft
AM624 (turn) 2000ft
RW22AGOGO (217°)AGOGO 3000ft
AM671 (3mi, 114°)
BLUSY (2mi, 174°) 2000ft
RW22AMEGA (253°)AMEGA 3000ft
AM672 (3mi, 289°)
BLUSY (2mi, 268°) 2000ft
RW22ARTIP (256°)ARTIP
SPL (32mi, 258°)
SPL (turn)
PAM (13mi, 90°)
AMEGA (5mi, 7°) 3000ft
AM672 (3mi, 289°)
BLUSY (2mi, 268°) 2000ft
RW22RIVER (58°)RIVER
SPL (34mi, 56°)
PAM (13mi, 90°)
AMEGA (5mi, 7°) 3000ft
AM672 (3mi, 289°)
BLUSY (2mi, 268°) 2000ft
RW22SUGOL (105°)SUGOL
SPL (31mi, 104°)
PAM (13mi, 90°)
AMEGA (5mi, 7°) 3000ft
AM672 (3mi, 289°)
BLUSY (2mi, 268°) 2000ft
 RNAVBLUSY 2000ft
AM661 (4mi, 235°) 2000ft
EHAM (7mi, 241°) 36ft
(3151mi, 185°) 400ft
AM675 (3141mi, 5°) 2000ft
RW24ARTIP (256°)ARTIP
SPL (32mi, 258°)
AM140 (4mi, 21°)
AM141 (8mi, 69°)
AM142 (3mi, 134°)
ARWIN (2mi, 193°) 2000ft
RW24RIVER (58°)RIVER
SPL (34mi, 56°)
AM140 (4mi, 21°)
AM141 (8mi, 69°)
AM142 (3mi, 134°)
ARWIN (2mi, 193°) 2000ft
RW24SUGOL (105°)SUGOL
SPL (31mi, 104°)
AM140 (4mi, 21°)
AM141 (8mi, 69°)
AM142 (3mi, 134°)
ARWIN (2mi, 193°) 2000ft
 RNAVARWIN 2000ft
AM143 (3mi, 249°) 2000ft
EHAM (6mi, 252°) 38ft
AM144 (13mi, 247°) 2000ft
RW27ARTIP (256°)ARTIP
SPL (32mi, 258°)
SPL (turn)
AM260 (6mi, 56°)
AM261 (8mi, 88°)
AM262 (3mi, 175°)
TIDVO (2mi, 231°) 2000ft
RW27RIVER (58°)RIVER
SPL (34mi, 56°)
AM260 (6mi, 56°)
AM261 (8mi, 88°)
AM262 (3mi, 175°)
TIDVO (2mi, 231°) 2000ft
RW27SUGOL (105°)SUGOL
SPL (31mi, 104°)
AM260 (6mi, 56°)
AM261 (8mi, 88°)
AM262 (3mi, 175°)
TIDVO (2mi, 231°) 2000ft
 RNAVTIDVO 2000ft
AM639 (3mi, 268°) 2000ft
EHAM (7mi, 265°) 38ft
AM263 (18mi, 269°) 3000ft
RW36CARTIP (256°)ARTIP
SPL (32mi, 258°)
AM280 (8mi, 241°)
AM281 (7mi, 185°)
AM282 (3mi, 92°)
OLGAX (2mi, 65°) 2000ft
RW36CBOVCO (10°)BOVCO
OLGAX (8mi, 5°) 2000ft
RW36CRIVER (58°)RIVER
SPL (34mi, 56°)
SPL (turn)
AM280 (8mi, 241°)
AM281 (7mi, 185°)
AM282 (3mi, 92°)
OLGAX (2mi, 65°) 2000ft
RW36CSUGOL (105°)SUGOL
SPL (31mi, 104°)
AM280 (8mi, 241°)
AM281 (7mi, 185°)
AM282 (3mi, 92°)
OLGAX (2mi, 65°) 2000ft
 RNAVOLGAX 2000ft
AM632 (3mi, 5°) 2000ft
EHAM (6mi, 19°) 38ft
AM283 (13mi, 358°) 2000ft
RW36RARTIP (256°)ARTIP
SPL (32mi, 258°)
AM160 (9mi, 125°)
AM161 (7mi, 185°)
AM162 (3mi, 272°)
NEWCO (2mi, 300°) 2000ft
RW36RKAROF (2°)KAROF
NEWCO (8mi, 5°) 2000ft
RW36RRIVER (58°)RIVER
SPL (34mi, 56°)
AM160 (9mi, 125°)
AM161 (7mi, 185°)
AM162 (3mi, 272°)
NEWCO (2mi, 300°) 2000ft
RW36RSUGOL (105°)SUGOL
SPL (31mi, 104°)
AM160 (9mi, 125°)
AM161 (7mi, 185°)
AM162 (3mi, 272°)
NEWCO (2mi, 300°) 2000ft
 RNAVNEWCO 2000ft
AM636 (3mi, 5°) 2000ft
EHAM (7mi, 358°) 39ft
AM637 (4mi, 18°) 1500ft
AM163 (8mi, 5°) 2000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DENU3ARIVERVHFright221 (41)°> 7000ft1.0min timed250
EEL1AARTIPVHFright72 (252)°> 7000ft1.0min timed250
EEL1BARTIPVHFright72 (252)°> 7000ft1.0min timed250
EEL1BNARSOVHFleft175 (355)°> 20000ft1.0min timed220
HELE2ARIVERVHFright221 (41)°> 7000ft1.0min timed250
LAMS2ASUGOLVHFright290 (110)°> 7000ft1.0min timed250
MOLI2ASUGOLVHFright290 (110)°> 7000ft1.0min timed250
NORK2AARTIPVHFright72 (252)°> 7000ft1.0min timed250
NORK2BARTIPVHFright72 (252)°> 7000ft1.0min timed250
NORK2BNARSOVHFleft175 (355)°> 20000ft1.0min timed220
PESE3ARIVERVHFright221 (41)°> 7000ft1.0min timed250
REDF1ASUGOLVHFright290 (110)°> 7000ft1.0min timed250
RKN2AARTIPVHFright72 (252)°> 7000ft1.0min timed250
RKN2BARTIPVHFright72 (252)°> 7000ft1.0min timed250
RKN2BNARSOVHFleft175 (355)°> 20000ft1.0min timed220
TOPA2ASUGOLVHFright290 (110)°> 7000ft1.0min timed250
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
