Airports for X-Plane

Edinburgh

Airport details

CountryUnited Kingdom
StateScotland
RegionEG
AirspaceScottish Ctr
MunicipalityCity of Edinburgh
Elevation131ft (40m)
TimezoneGMT +0
Coordinates55.94926, -3.34441
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEGPH
IATA codeEDI
FAA coden/a

Communication

Edinburgh Edinburgh Information131.355
Edinburgh Edinburgh Ground121.755
Edinburgh Edinburgh Tower118.705
Edinburgh Edinburgh Approach121.205
Edinburgh Scottish Control124.825

Approach frequencies

ILS-cat-IIIRW24108.918.00mi
ILS-cat-IIIRW06108.918.00mi
3° GSRW24108.918.00mi
3° GSRW06108.918.00mi

Runway info

Runway 06 / 24
 length2550m (8366ft)
 bearing71° / 251°
 width44m (144ft)
 surfaceasphalt
 displ threshold211m (692ft) / 208m (682ft)
 blast zone62m (203ft) / 61m (200ft)

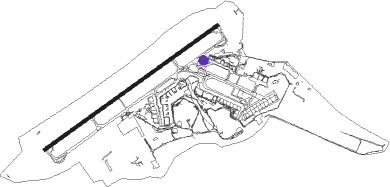

Airport layout - taxiway location P1


Taxiway locations
Parking locations

Nearby beacons

codeidentifierdistbearingfrequency
EDNEDINBURGH NDB2.664°341
UWEDINBURGH NDB5.9254°368
TLATALLA VOR/DME27181°113.80
PTHPERTH VOR29.6357°110.40
LUKLEUCHARS TACAN3049°110.50
DNDDUNDEE NDB31.324°394
GLOLOWTHER DME36.1215°109.65

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW06
 TLA6D27mi181°
 GOSA1D30mi259°
 GRIC4D19mi306°
RW24
 TLA6C27mi181°
 GOSA1C30mi259°
 GRIC3C19mi306°

STAR starting pointsdistanceinbound heading
ALL
 TUNS1E74.563°
 GIRV1E69.864°
 PTH1G29.6177°
 AGPE1E68.6301°
 INPI1E66.2337°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AGPE1ETARTNVHFleft195 (15)°7000ft - 14000ftDME 3.5mi230
GIRV1ETARTNVHFleft195 (15)°7000ft - 14000ftDME 3.5mi230
INPI1ETARTNVHFleft195 (15)°7000ft - 14000ftDME 3.5mi230
PTH1GSTIRAVHFright54 (234)°7000ft - 14000ftDME 4.0mi230
TUNS1ETARTNVHFleft195 (15)°7000ft - 14000ftDME 3.5mi230
*) magnetic outbound (inbound) holding course
