Airports for X-Plane

Orkney Islands - Kirkwall

Airport details

CountryUnited Kingdom
StateScotland
RegionEG
AirspaceScottish Ctr
MunicipalityOrkney Islands
Elevation47ft (14m)
TimezoneGMT +0
Coordinates58.95806, -2.90056
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEGPA
IATA codeKOI
FAA coden/a

Communication

Kirkwall Kirkwall Information108.600
Kirkwall Kirkwall Tower118.305
Kirkwall Kirkwall Approach118.305

Approach frequencies

ILS-cat-IRW27110.118.00mi
ILS-cat-IRW09110.118.00mi
3.5° GSRW27110.118.00mi
3.5° GSRW09110.118.00mi

Runway info

Runway 09 / 27
 length1436m (4711ft)
 bearing89° / 269°
 width46m (151ft)
 surfaceasphalt
 displ threshold167m (548ft) / 40m (131ft)
Runway 14 / 32
 length675m (2215ft)
 bearing122° / 302°
 width18m (59ft)
 surfaceasphalt
 displ threshold0m (0ft) / 119m (390ft)

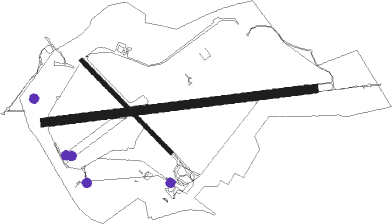

Airport layout - parking location New


Taxiway locations

 E1  E2  E3  R1  R2  R3  R4  R5
 R7  R8  W1  W2  W3  W4  W5  W6
 W7
Parking locations

 Light  New  Passenger

Nearby beacons

codeidentifierdistbearingfrequency
KWKIRKWALL NDB046°395
KWLKIRKWALL VOR/DME0.276°108.60
WIKWICK VOR/DME30.6202°113.60
WCKWICK NDB31.1198°344

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW09ATMEX (89°)ATMEX 2600ft
PA09I (4mi, 89°) 2100ft
RW09TUVIV (99°)TUVIV 2100ft
PA09I (4mi, 141°) 2100ft
RW09UPLAB (78°)UPLAB 2600ft
PA09I (4mi, 31°) 2100ft
 RNAVPA09I 2100ft
PA09F (4mi, 89°) 2000ft
EGPA (5mi, 89°) 89ft
PAM01 (5mi, 89°)
PAM02 (5mi, 355°)
PAM03 (5mi, 269°)
KW (5mi, 176°) 2600ft
KW (turn) 2600ft
RW27ABTOR (282°)ABTOR 2600ft
RUDKU (4mi, 355°) 1600ft
RW27IVDIS (255°)IVDIS 2600ft
RUDKU (4mi, 175°) 1600ft
 RNAVRUDKU 1600ft
PA27F (4mi, 269°) 1600ft
MA27 (4mi, 269°) 275ft
PAM04 (6mi, 269°)
PAM05 (5mi, 175°)
PAM06 (5mi, 89°)
KW (5mi, 355°) 2600ft
KW (turn) 2600ft
