Newcastle

Airport details

Country	United Kingdom
State	England
Region	EG
Airspace	Scottish Ctr
Municipality	Newcastle upon Tyne
Elevation	266ft (81m)
Timezone	GMT +0
Coordinates	55.03446, -1.69461
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	EGNT
IATA code	NCL
FAA code	n/a

Communication

Newcastle ATIS	118.380
Newcastle Ground Control	121.730
Newcastle Tower	119.705
Newcastle Approach	124.380

Approach frequencies

ILS-cat-III	RW07	111.5	18.00mi
ILS-cat-III	RW25	111.5	18.00mi
3° GS	RW07	111.5	18.00mi
3° GS	RW25	111.5	18.00mi

Runway info

Runway 07 / 25
	length	2323m (7621ft)
	bearing	75° / 255°
	width	46m (151ft)
	surface	concrete
	displ threshold	120m (394ft) / 136m (446ft)
	blast zone	33m (108ft) / 17m (56ft)

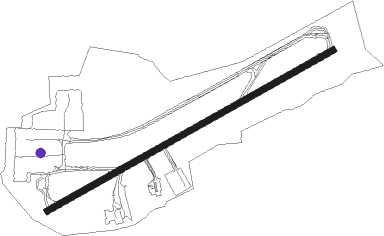

Airport layout - parking location 10

Taxiway locations

A2	A3	B2	D1	D4	D5	D6	D7
D8	E	F

Parking locations

10	11	12	14	16	17	18	20
21	24	25	3	30	31	4	5
6	60	61	62	7	GA

Nearby beacons

code	identifier	dist	bearing	frequency
NEW	DME	0.2	317°	114.25
NT	NEWCASTLE NDB	2	73°	352
TD	TEESSIDE INTL NDB	31	143°	347
DUF	DUN FELL DME	33.5	245°	115.25
LEE	LEEMING TACAN	44.6	168°	112.60
SAB	SAINT ABBS VOR/DME	55.2	330°	112.50

Departure and arrival routes

Transition altitude

6000ft

SID end points		distance	outbound heading
RW07
	GIRL1T	20mi	199°
RW25
	GIRL1Y, GIRL3X	20mi	199°

STAR starting points		distance	inbound heading
ALL
	POL1N	78.8	18°
	RIMT1N	79.6	349°
RW07
	ETSE1J	20.1	359°
RW25
	ETSE1K	20.1	359°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW07	ERUXI (54°)	ERUXI 5500ft NTW04 (6mi, 359°) 3500ft NT07I (2mi, 31°) 2600ft
RW07	KUSEG (92°)	KUSEG 4000ft NT07I (5mi, 141°) 2600ft
	RNAV	NT07I 2600ft NT07F (4mi, 75°) 2000ft EGNT (6mi, 76°) 314ft NTM01 (5mi, 74°) 2000ft (3308mi, 178°) 2000ft
RW25	ASGEB (234°)	ASGEB 4000ft SUPIG (5mi, 141°) 2600ft
RW25	UPMOP (272°)	UPMOP 4000ft SUPIG (5mi, 321°) 2600ft
	RNAV	SUPIG 2600ft NT25F (4mi, 255°) 2000ft EGNT (6mi, 254°) 290ft NTM02 (3mi, 256°) 2500ft (3305mi, 178°) 2500ft

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
POL1N	ETSES	VHF	left	191 (11)°	9000ft - 11000ft	1.0min timed	220
RIMT1N	ETSES	VHF	left	191 (11)°	9000ft - 11000ft	1.0min timed	220
*) magnetic outbound (inbound) holding course
