Airports for X-Plane

Liège - Liege

Airport details

CountryBelgium
StateLiège
RegionEB
AirspaceBrussels Ctr
MunicipalityGrâce-Hollogne
Elevation645ft (197m)
TimezoneGMT +1
Coordinates50.64034, 5.44278
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEBLG
IATA codeLGG
FAA coden/a

Communication

Liege ATIS126.250
Liege Clearance Delivery121.800
Liege Ground121.925
Liege Tower130.625
Liege Approach122.500

Approach frequencies

ILS-cat-IIIRW04R108.7518.00mi
ILS-cat-IIIRW22L109.3518.00mi
ILS-cat-IRW22R109.3518.00mi
3° GSRW22R109.3518.00mi
3° GSRW04R108.7518.00mi
3° GSRW22L109.3518.00mi

Runway info

Runway 04R / 22L
 length3697m (12129ft)
 bearing58° / 238°
 width45m (148ft)
 surfaceasphalt
 displ threshold235m (771ft) / 413m (1355ft)
 blast zone74m (243ft) / 0m (0ft)
Runway 04L / 22R
 length2335m (7661ft)
 bearing58° / 238°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 46m (151ft)

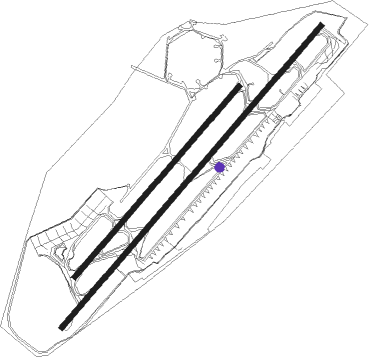

Airport layout - taxiway location S3


Taxiway locations

 A3  A4  A5  C0  C1  C2  C3  C4
 F  N0  S2  S3  S4  S5  S6
Parking locations

 110  112  114  116  118  120  122  124
 126  128  20  21  22  23  28  29A
 29B  29C  29D  40A  40B  40C  41  42
 43  44  45  46  50  51  52  53
 54  55  56  57  58  59  60  61
 62  63  Gate  M1  M2  M3  M4  P10
 P11  P12  P13  P14  P15  P16  P17  P18
 P6  P7  P8  P9

Nearby beacons

codeidentifierdistbearingfrequency
LGELIEGE VOR/DME1.364°115.45
ONLLIEGE NDB5.460°290
SPISPRIMONT VOR/DME10.2125°113.10
LNOOLNO VOR/DME10.7102°112.80
FLOFLORA VOR/DME18.4307°112.05
SLVSPA NDB20.4109°386
BBEBEAUVECHAIN TACAN26.5280°116
HTBBEAUVECHAIN NDB26.6280°381
MASMAASTRICHT VOR/DME27.957°108.60
NWMAASTRICHT NDB28.149°373
GIXGEILENKIRCHEN TACAN29.962°108.10
HULHULDENBERG VOR/DME31.1278°117.55
BBLKLEINE BROGEL TACAN31.62°109.60
ONCCHARLEROI NDB35260°323
OBBRUSSELS NDB35.6289°293
BUNBRUNO VOR/DME36.6309°110.60
OPBRUSSELS NATIONAL NDB36.9289°402
BUBBRUSSELS VOR/DME37.7286°114.60
BFSFLORENNES TACAN38.5243°111.50
OZBRUSSELS NATIONAL NDB38.7281°314
ONWANTWERP NDB45.8301°355
EHVEINDHOVEN TACAN48.5355°117.20
ANTANTWERP (DEURNE) VOR/DME49.4300°113.50
DIKDIEKIRCH NDB53.7139°307
LMALIMA NDB56.753°311
GZRGILZE-RIJEN TACAN58.8331°116.40
NIDDME63.336°115.50
LAANIEDERRHEIN NDB63.937°352
ELULUXEMBOURG NDB67.5136°368

Departure and arrival routes

Transition altitude4500ft
SID end pointsdistanceoutbound heading
RW04 (ALL)
 LNO9R11mi102°
RW22 (ALL)
 LNO6E, LNO8S11mi102°

STAR starting pointsdistanceinbound heading
ALL
 KOK6D, KOK6X109.199°
 NIK6X, NIK6D57.1113°
 LNO5X, LNO5D10.7282°
 GESL5D, GESL5X39.9315°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04LLGE1 (6°)LGE 3000ft
NEPIV (12mi, 203°) 3000ft
EVSEN (5mi, 237°) 3000ft
MAPUP (6mi, 303°) 3000ft
RW04LLGE2 (6°)LGE 3000ft
LITPO (12mi, 260°) 3000ft
OSTAT (4mi, 237°) 3000ft
MAPUP (6mi, 123°) 3000ft
 RNAVMAPUP 3000ft
L04LF (5mi, 58°) 3000ft
EBLG (8mi, 57°) 679ft
L04LT (7mi, 58°)
LGE (5mi, 237°) 3000ft
LGE (turn) 3000ft
RW04RLGE1 (6°)LGE 3000ft
NEPIV (12mi, 203°) 3000ft
EVSEN (5mi, 237°) 3000ft
TUTSO (6mi, 303°) 3000ft
RW04RLGE2 (6°)LGE 3000ft
LITPO (12mi, 260°) 3000ft
OSTAT (4mi, 237°) 3000ft
TUTSO (6mi, 123°) 3000ft
 RNAVTUTSO 3000ft
L04RF (5mi, 58°) 3000ft
EBLG (8mi, 57°) 702ft
L04RT (7mi, 59°)
LGE (5mi, 238°) 3000ft
LGE (turn) 3000ft
RW22LLGE1 (6°)LGE 3000ft
IPLAN (8mi, 337°)
RERTI (5mi, 58°)
LIBVA (7mi, 123°) 2500ft
RW22LLGE2 (6°)LGE 3000ft
OLPUN (7mi, 90°)
GIKLI (4mi, 58°)
LIBVA (5mi, 303°) 2500ft
 RNAVLIBVA 2500ft
L22LF (4mi, 238°) 2500ft
EBLG (7mi, 239°) 651ft
L22LT (6mi, 236°)
LGE (7mi, 58°) 3000ft
LGE (turn) 3000ft
RW22RLGE1 (6°)LGE 3000ft
IPLAN (8mi, 337°)
RERTI (5mi, 58°)
LAVTO (7mi, 123°) 2500ft
RW22RLGE2 (6°)LGE 3000ft
OLPUN (7mi, 90°)
GIKLI (4mi, 58°)
LAVTO (5mi, 303°) 2500ft
 RNAVLAVTO 2500ft
L22RF (4mi, 238°) 2500ft
EBLG (7mi, 238°) 631ft
L22RT (6mi, 237°)
LGE (7mi, 59°) 3000ft
LGE (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
CIV6DGSYNDBleft178 (358)°10000ft - 23000ft1.0min timedICAO rules
CIV6DLGENDBleft223 (43)°3000ft - 5000ft1.0min timedICAO rules
CIV6XLGENDBleft223 (43)°3000ft - 5000ft1.0min timedICAO rules
GESL5DGIRELVHFleft134 (314)°6000ft - 14000ft1.0min timedICAO rules
GESL5DLGENDBleft223 (43)°3000ft - 5000ft1.0min timedICAO rules
GESL5XLGENDBleft223 (43)°3000ft - 5000ft1.0min timedICAO rules
KOK6DGSYNDBleft178 (358)°10000ft - 23000ft1.0min timedICAO rules
KOK6DLGENDBleft223 (43)°3000ft - 5000ft1.0min timedICAO rules
KOK6XLGENDBleft223 (43)°3000ft - 5000ft1.0min timedICAO rules
LNO5DGIRELVHFleft134 (314)°6000ft - 14000ft1.0min timedICAO rules
LNO5DLGENDBleft223 (43)°3000ft - 5000ft1.0min timedICAO rules
LNO5XLGENDBleft223 (43)°3000ft - 5000ft1.0min timedICAO rules
NIK6DGSYNDBleft178 (358)°10000ft - 23000ft1.0min timedICAO rules
NIK6DLGENDBleft223 (43)°3000ft - 5000ft1.0min timedICAO rules
NIK6XLGENDBleft223 (43)°3000ft - 5000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
