Airports for X-Plane

Langley

Airport details

CountryCanada
StateBritish Columbia
RegionCY
AirspaceVancouver Ctr
MunicipalityTownship of Langley
Elevation34ft (10m)
TimezoneGMT -8
Coordinates49.10022, -122.62618
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeCYNJ
IATA codeYLY
FAA coden/a

Communication

Langley ATIS124.500
Langley Ground121.900
Langley Tower119.000

Runway info

Runway 01 / 19
 length641m (2103ft)
 bearing43° / 223°
 width23m (75ft)
 surfaceasphalt
 displ threshold32m (105ft) / 29m (95ft)
Runway 07 / 25
 length836m (2743ft)
 bearing91° / 271°
 width23m (75ft)
 surfaceasphalt
 displ threshold199m (653ft) / 105m (344ft)

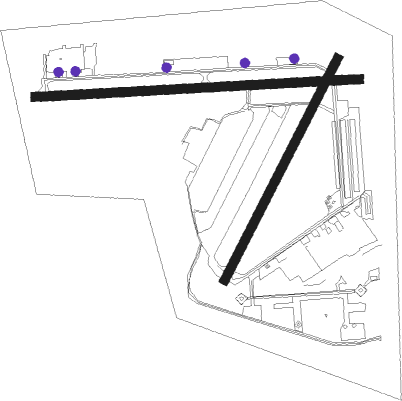

Airport layout - parking location North


Taxiway locations

 C  D
Parking locations

 East  North  South

Nearby beacons

codeidentifierdistbearingfrequency
XXABBOTSFORD NDB7.4122°344
WCWHITE ROCK NDB7.6232°332
YPKPITT MEADOWS VOR7.7323°112.40
HUHWHATCOM VORTAC9.4163°113
VRVANCOUVER NDB17.4280°266
YVRVANCOUVER VOR/DME20.6267°115.90
APACTIVE PASS NDB29.4251°378
FHRFRIDAY HARBOR NDB38.6214°284
BVSSKAGIT/BAY VIEW (BURLINGTON) NDB38.8162°240
YYJVICTORIA VOR/DME40.6247°113.70
YJVICTORIA NDB41239°200
MBMILL BAY (VICTORIA) NDB44.2245°293
NUWWHIDBEY ISLAND (OAK HARBO TACAN44.7183°113.80
CVVPENN COVE VOR/DME51.5187°117.20
NOWEDIZ HOOK (PORT ANGELES) NDB65.4219°338

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW01CHAIT (68°)CHAIT
BANQS (15mi, 82°) 2000ft
RW01HOLES (43°)HOLES
BANQS (5mi, 43°) 2000ft
RW01HUH (343°)HUH
MIXAX (5mi, 257°) 2000ft
BANQS (4mi, 292°) 2000ft
 RNAVBANQS 2000ft
KLUCK (5mi, 43°) 2000ft
LEVIR (4mi, 43°) 720ft
CYNJ (2mi, 46°) 80ft
YPK (8mi, 323°) 2000ft
YPK (turn) 2000ft
