Airports for X-Plane

Mudanjiang - Hailang

Airport details

CountryChina
StateHeilongjiang
RegionZY
AirspaceShenyang Ctr
MunicipalityWenchun
Elevation880ft (268m)
TimezoneGMT +8
Coordinates44.52333, 129.57001
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeZYMD
IATA codeMDG
FAA coden/a

Communication

Hailang MUDANJIANG Tower130.000
Hailang MUDANJIANG Tower118.600

Approach frequencies

ILS-cat-IRW22108.918.00mi
3° GSRW22108.918.00mi

Runway info

Runway 04 / 22
 length2604m (8543ft)
 bearing34° / 214°
 width45m (148ft)
 surfaceasphalt
 blast zone56m (184ft) / 60m (197ft)

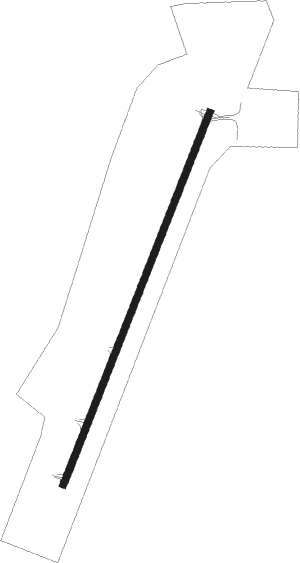

Airport layout


Nearby beacons

codeidentifierdistbearingfrequency
MDJMUDANJIANG VOR/DME0.5219°117.10
XMUDANJIANG NDB1.230°251

Departure and arrival routes

Transition altitude9843ft
Transition level11811ft
SID end pointsdistanceoutbound heading
RW04
 UGA09D, UGA04D, UGA03D, UGA02D, UGA01D50mi249°
RW22
 UGA11D, UGA12D, UGA13D, UGA19D50mi249°

STAR starting pointsdistanceinbound heading
RW04
 UGA01A, UGA02A49.869°
RW22
 UGA11A, UGA12A49.869°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
UGA01AVVHFright238 (58)°> 6890ft1.0min timed210
UGA02AMDJNDBleft216 (36)°> 4830ft1.0min timed205
UGA02AVVHFright238 (58)°> 6890ft1.0min timed210
UGA11AMDJNDBleft216 (36)°> 4830ft1.0min timed205
UGA12AXFIXright235 (55)°> 4830ft1.0min timed205
*) magnetic outbound (inbound) holding course
