Airports for X-Plane

Sepang/kuala Lumpur - Kuala Lumpur Intl - Sepang

Airport details

CountryMalaysia
StateSelangor
RegionWM
AirspaceKuala Lumpur Ctr
MunicipalitySepang
Elevation67ft (20m)
TimezoneGMT +8
Coordinates2.74328, 101.69796
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeWMKK
IATA codeKUL
FAA coden/a

Communication

Kuala Lumpur Intl - Sepang Approach124.200
Kuala Lumpur Intl - Sepang ATIS126.450
Kuala Lumpur Intl - Sepang LUMPUR DEL126.000
Kuala Lumpur Intl - Sepang Ground Control121.650
Kuala Lumpur Intl - Sepang Tower118.800
Kuala Lumpur Intl - Sepang Approach125.100
Kuala Lumpur Intl - Sepang Approach119.450
Kuala Lumpur Intl - Sepang Departure135.250

Approach frequencies

ILS-cat-IRW14R110.718.00mi
ILS-cat-IRW33111.518.00mi
ILS-cat-IRW32L111.918.00mi
ILS-cat-IRW15110.118.00mi
ILS-cat-IRW32R109.118.00mi
ILS-cat-IRW14L108.518.00mi
3° GSRW14R110.718.00mi
3° GSRW14L108.518.00mi
3° GSRW32R109.118.00mi
3° GSRW33111.518.00mi
3° GSRW15110.118.00mi
3° GSRW32L111.918.00mi

Runway info

Runway 14L / 32R
 length4034m (13235ft)
 bearing146° / 326°
 width60m (197ft)
 surfaceasphalt
 blast zone120m (394ft) / 0m (0ft)
Runway 15 / 33
 length3975m (13041ft)
 bearing146° / 326°
 width60m (197ft)
 surfaceasphalt
 blast zone120m (394ft) / 120m (394ft)
Runway 14R / 32L
 length4015m (13173ft)
 bearing146° / 326°
 width60m (197ft)
 surfaceasphalt
 blast zone180m (591ft) / 120m (394ft)

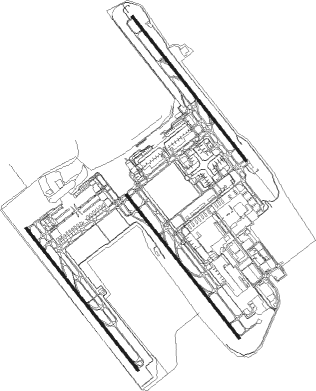

Airport layout


Taxiway locations

 5  A  A1  A10  A11  A2  A3  A4
 A5  A6  A7  A8  A9  B  B9  C
 C1  C10  C11  C2  C3  C4  C5  C6
 C7  C8  C9  D  D12  D13  E  E2
 F  G  H  K  L  M  P  P1
 P2  P3  P4  Q  Q1  T1  T3  T6
 T9  U5  U6  Y  Y1  Y2  Y3  Y4
 Y5  Y6  Y7  Y8  Y9  Z
Parking locations

 Bunga  KLAS  KLIA1  KLIA2  LCCT  Maint  MasCargo

Nearby beacons

codeidentifierdistbearingfrequency
VSPSEPANG VOR/DME1.8287°114.40
VKLKUALA LUMPUR VOR/DME2.6115°116.10
CECALEDONIAN (KUALA LUMPUR) NDB36.2336°205
VBABATU ARANG VOR/DME37.7337°114.70
VMKMALACCA VOR/DME43.9132°117.40

Departure and arrival routes

Transition altitude11000ft
Transition level13000ft
SID end pointsdistanceoutbound heading
RW14L
 PIBO1A42mi30°
 KIMA1A47mi57°
 RUSB1A65mi132°
 MITO1A52mi152°
 SALA1A33mi194°
 PUGE1A93mi295°
 IBUK1A75mi313°
 ATIM1A70mi322°
 BIKD1A68mi346°
RW14R
 PIBO1B42mi30°
 KIMA1B47mi57°
 RUSB1B65mi132°
 MITO1B52mi152°
 SALA1B33mi194°
 PUGE1B93mi295°
 IBUK1B75mi313°
 ATIM1B70mi322°
 SUBA1V15mi346°
 BIKD1B68mi346°
RW15
 PIBO1C42mi30°
 KIMA1C47mi57°
 RUSB1C65mi132°
 MITO1C52mi152°
 SALA1C33mi194°
 PUGE1C93mi295°
 IBUK1C75mi313°
 ATIM1C70mi322°
 BIKD1C68mi346°
RW32L
 PIBO1E42mi30°
 KIMA1E47mi57°
 RUSB1E65mi132°
 MITO1E52mi152°
 SALA1E33mi194°
 PUGE1E93mi295°
 IBUK1E75mi313°
 ATIM1E70mi322°
 BIKD1E68mi346°
RW32R
 PIBO1D42mi30°
 KIMA1D47mi57°
 RUSB1D65mi132°
 MITO1D52mi152°
 SALA1D33mi194°
 PUGE1D93mi295°
 IBUK1D75mi313°
 ATIM1D70mi322°
 BIKD1D68mi346°
 SUBA1Z15mi346°
RW33
 PIBO1F42mi30°
 KIMA1F47mi57°
 RUSB1F65mi132°
 MITO1F52mi152°
 SALA1F33mi194°
 PUGE1F93mi295°
 IBUK1F75mi313°
 ATIM1F70mi322°
 BIKD1F68mi346°

STAR starting pointsdistanceinbound heading
ALL
 SALA1G, SALA1H33.214°
 PUGE1G, PUGE1H93.0115°
 NIRE1G, NIRE1H82.5123°
 KAKA1H, KAKA1G67.7155°
 PULI1G, PULI1H57.1192°
 SARO1H, SARO1G58.5267°
 GUPT1G, GUPT1H66.4302°
RW14 (ALL)
 SALA1K33.214°
 PUGE1K93.0115°
 NIRE1K82.5123°
 KAKA1K67.7155°
 PULI1K57.1192°
 SARO1K58.5267°
 GUPT1K66.4302°
RW15
 SALA1K33.214°
 PUGE1K93.0115°
 NIRE1K82.5123°
 KAKA1K67.7155°
 PULI1K57.1192°
 SARO1K58.5267°
 GUPT1K66.4302°
RW32 (ALL)
 SALA1J33.214°
 PUGE1J93.0115°
 NIRE1J82.5123°
 KAKA1J67.7155°
 PULI1J57.1192°
 SARO1J58.5267°
 GUPT1J66.4302°
RW33
 SALA1J33.214°
 PUGE1J93.0115°
 NIRE1J82.5123°
 KAKA1J67.7155°
 PULI1J57.1192°
 SARO1J58.5267°
 GUPT1J66.4302°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW14LEGURI (236°)EGURI
KK894 (6mi, 236°) 10000ft
KK895 (13mi, 326°) 7000ft
KK896 (8mi, 326°) 6000ft
RULPA (5mi, 236°) 4500ft
RW14LMESUP (56°)MESUP 8000ft
KK899 (7mi, 23°) 6000ft
KK897 (17mi, 326°) 4500ft
RULPA (8mi, 56°) 4500ft
RW14LNUPKU (146°)NUPKU 5000ft
RULPA (10mi, 138°) 4500ft
 RNAVRULPA 4500ft
KK950 (6mi, 146°) 4500ft
WMKK (16mi, 151°) 106ft
KK951 (3mi, 115°)
KK952 (9mi, 116°) 3000ft
EGURI (12mi, 358°) 5500ft
EGURI (turn) 5500ft
RW14REGURI (236°)EGURI
KK894 (6mi, 236°) 10000ft
KK895 (13mi, 326°) 7000ft
KK896 (8mi, 326°) 5000ft
AREBU (6mi, 236°) 3500ft
RW14RMESUP (56°)MESUP 8000ft
KK899 (7mi, 23°) 6000ft
KK897 (17mi, 326°) 3500ft
AREBU (6mi, 56°) 3500ft
RW14RNUPKU (146°)NUPKU 5000ft
LUVNI (7mi, 146°) 3500ft
AREBU (3mi, 146°) 3500ft
 RNAVAREBU 3500ft
KK953 (10mi, 146°) 3500ft
WMKK (11mi, 146°) 106ft
KK954 (6mi, 146°) 1000ft
MESUP (14mi, 262°) 2500ft
MESUP (turn) 2500ft
RW15EGURI (236°)EGURI
KK894 (6mi, 236°) 10000ft
KK895 (13mi, 326°) 6000ft
KK896 (8mi, 326°) 4500ft
AREBU (6mi, 236°) 3500ft
VAKTU (6mi, 157°) 2500ft
RW15MESUP (56°)MESUP 8000ft
KK899 (7mi, 23°) 6000ft
KK898 (11mi, 326°) 2500ft
VAKTU (5mi, 56°) 2500ft
RW15NUPKU (146°)NUPKU 5000ft
LUVNI (7mi, 146°) 3500ft
AREBU (3mi, 146°) 3500ft
VAKTU (6mi, 157°) 2500ft
 RNAVVAKTU 2500ft
KK955 (7mi, 146°) 2500ft
WMKK (8mi, 138°) 80ft
KK956 (2mi, 181°)
MESUP (11mi, 245°) 2500ft
MESUP (turn) 2500ft
RW32LEGURI (236°)EGURI
KK894 (6mi, 236°) 10000ft
KK893 (13mi, 146°) 7000ft
KK892 (7mi, 146°) 5000ft
KARBO (6mi, 236°) 3500ft
RW32LMESUP (56°)MESUP 8000ft
KK887 (7mi, 88°) 7000ft
KK888 (7mi, 146°) 5000ft
KK889 (9mi, 146°) 3500ft
KARBO (6mi, 56°) 3500ft
RW32LSULDI (317°)SULDI 6000ft
KK891 (6mi, 290°) 3500ft
KARBO (5mi, 312°) 3500ft
 RNAVKARBO 3500ft
KK960 (7mi, 326°) 3500ft
WMKK (13mi, 326°) 100ft
KK961 (1mi, 326°) 1000ft
KK962 (10mi, 312°) 2800ft
PAPGO (17mi, 239°) 3500ft
PAPGO (turn) 3500ft
RW32REGURI (236°)EGURI
KK894 (6mi, 236°) 10000ft
KK893 (13mi, 146°) 7000ft
KK892 (7mi, 146°) 6000ft
MOTKA (5mi, 236°) 4500ft
RW32RMESUP (56°)MESUP 8000ft
KK887 (7mi, 88°) 7000ft
KK888 (7mi, 146°) 7000ft
KK889 (9mi, 146°) 4500ft
MOTKA (8mi, 56°) 4500ft
RW32RSULDI (317°)SULDI 6000ft
KK891 (6mi, 290°) 4500ft
MOTKA (5mi, 326°) 4500ft
 RNAVMOTKA 4500ft
KK957 (5mi, 326°) 4500ft
WMKK (14mi, 321°) 125ft
KK958 (2mi, 6°)
KK959 (7mi, 340°) 2400ft
EGURI (13mi, 98°) 5500ft
EGURI (turn) 5500ft
RW33EGURI (236°)EGURI
KK894 (6mi, 236°) 10000ft
KK893 (13mi, 146°) 7000ft
KK892 (7mi, 146°) 5000ft
EGUMU (8mi, 236°) 2500ft
BEGIN (5mi, 326°) 2500ft
RW33MESUP (56°)MESUP 8000ft
KK887 (7mi, 88°) 7000ft
KK888 (7mi, 146°) 5000ft
KK889 (9mi, 146°) 2500ft
EGUMU (5mi, 56°) 2500ft
BEGIN (5mi, 326°) 2500ft
RW33SULDI (317°)SULDI 6000ft
KK891 (6mi, 290°) 3500ft
KK890 (3mi, 290°) 2500ft
EGUMU (3mi, 310°) 2500ft
BEGIN (5mi, 326°) 2500ft
 RNAVBEGIN 2500ft
KK963 (5mi, 326°) 2500ft
WMKK (9mi, 333°) 80ft
KK964 (1mi, 256°)
MESUP (11mi, 234°) 2500ft
MESUP (turn) 2500ft
