Kuantan - Sultan Haji Ahmad Shah
Airport details
| Country | Malaysia |
| State | Pahang |
| Region | WM |
| Airspace | Kuala Lumpur Ctr |
| Municipality | Kuantan |
| Elevation | 58ft (18m) |
| Timezone | GMT +8 |
| Coordinates | 3.76972, 103.20944 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | WMKD |
| IATA code | KUA |
| FAA code | n/a |
Communication
| Sultan Haji Ahmad Shah ATIS | 127.500 |
| Sultan Haji Ahmad Shah Ground Control | 120.400 |
| Sultan Haji Ahmad Shah Tower | 118.100 |
| Sultan Haji Ahmad Shah Approach | 118.100 |
Approach frequencies
| ILS-cat-I | RW36 | 109.5 | 18.00mi |
| 3° GS | RW36 | 109.5 | 18.00mi |

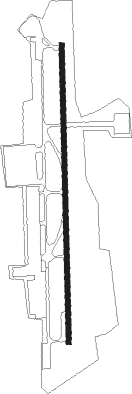

Runway info
| Runway 18 / 36 | ||
| length | 2759m (9052ft) | |
| bearing | 183° / 3° | |
| width | 46m (150ft) | |
| surface | asphalt | |
| blast zone | 255m (837ft) / 255m (837ft) | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| VKN | KUANTAN VORTAC | 0.2 | 23° | 113.70 |
| VPK | PEKAN (KUANTAN) VOR/DME | 26.5 | 151° | 115.60 |
| VKP | KERTEH VOR/DME | 47.6 | 16° | 113.30 |
| VPT | PULAU TIOMAN VOR/DME | 74.3 | 134° | 114 |
Departure and arrival routes
| Transition altitude | 11000ft |
| Transition level | 13000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW18 | |||
| VKPB | 48mi | 16° | |
| VPKB | 27mi | 151° | |
| ADNUTB | 43mi | 235° | |
| GUNBOB | 70mi | 341° | |
| RW36 | |||
| VKPC, VKPA | 48mi | 16° | |
| VPKA, VPKC | 27mi | 151° | |
| ADNUTA, ADNUTC | 43mi | 235° | |
| GUNBOC, GUNBOA | 70mi | 341° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| RW18 | |||
| ADNUTC, ADNUTD | 42.7 | 55° | |
| GUNBOC, GUNBOD | 69.6 | 161° | |
| VKPC, VKPD | 47.6 | 196° | |
| VPKD, VPKC | 26.5 | 331° | |
| RW36 | |||
| ADNUTB, ADNUTG | 42.7 | 55° | |
| GUNBOB, GUNBOG | 69.6 | 161° | |
| VKPB, VKPG | 47.6 | 196° | |
| VPKG, VPKB | 26.5 | 331° | |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| ADNUTB | DULIT | VHF | right | 254 (74)° | 3500ft - 10000ft | 1.0min timed | 230 |
| ADNUTC | MAMOX | VHF | right | 235 (55)° | 5000ft - 10000ft | 1.0min timed | 230 |
| ADNUTD | MAMOX | VHF | right | 235 (55)° | 5000ft - 10000ft | 1.0min timed | 230 |
| ADNUTG | MAMOX | VHF | right | 235 (55)° | 5000ft - 10000ft | 1.0min timed | 230 |
| VPKB | VPK | NDB | right | 130 (310)° | 11000ft - 60000ft | 1.0min timed | 230 |
| VPKD | BIGOS | VHF | left | 70 (250)° | 4000ft - 10000ft | 1.0min timed | 230 |
| VPKD | VPK | NDB | right | 130 (310)° | 11000ft - 60000ft | 1.0min timed | 230 |
| VPKG | VPK | NDB | right | 130 (310)° | 11000ft - 60000ft | 1.0min timed | 230 |
| *) magnetic outbound (inbound) holding course | |||||||
