Airports for X-Plane

Manado-celebes Island - Manado Sam Ratulangi

Airport details

CountryIndonesia
StateNorth Sulawesi
RegionWA
AirspaceUjung Pandang Ctr
MunicipalityManado
Elevation264ft (80m)
TimezoneGMT +8
Coordinates1.54182, 124.92793
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeWAMM
IATA codeMDC
FAA coden/a

Communication

Manado Sam Ratulangi ATIS126.400
Manado Sam Ratulangi RATULANGI Tower118.100
Manado Sam Ratulangi MANADO Approach119.000

Approach frequencies

ILS-cat-IRW18111.118.00mi
ILS-cat-IRW36110.518.00mi
3.3° GSRW36110.518.00mi
3.2° GSRW18111.118.00mi

Runway info

Runway 18 / 36
 length2664m (8740ft)
 bearing182° / 2°
 width45m (148ft)
 surfaceasphalt
 blast zone59m (194ft) / 58m (190ft)

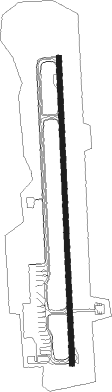

Airport layout


Taxiway locations

 A  B  C  D  E
Parking locations

 GA  Gate  Helo

Nearby beacons

codeidentifierdistbearingfrequency
MNOMANADO VOR/DME0.7360°114.20
PNMANADO NDB3.1201°290
MDMANADO NDB6.4236°255
MWBMANADO VOR/DME13.2173°114.80

Departure and arrival routes

Transition altitude11000ft
Transition level13000ft
SID end pointsdistanceoutbound heading
RW18
 HALM1E, HALM1C105mi108°
 SOSO1C, SOSO1A106mi116°
 RUMB1C, RUMB1A112mi149°
 LUAN1C, LUAN1A110mi216°
 GONT1H, GONT1C, GONT1A103mi245°
 GOTS1H, GOTS1C, GOTS1A102mi249°
 BOND1C30mi355°
 CATU1A37mi358°
RW36
 HALM1F, HALM1D105mi108°
 SOSO1B, SOSO1D106mi116°
 RUMB1D, RUMB1B112mi149°
 LUAN1D, LUAN1B110mi216°
 GONT1D, GONT1B103mi245°
 GOTS1D, GOTS1B102mi249°
 BOND1D30mi355°
 CATU1B37mi358°

STAR starting pointsdistanceinbound heading
ALL
 LUAN1E109.536°
 GONT1E103.265°
 GOTS1E102.269°
 BOND1E30.3175°
 HALM1G104.7288°
 SOSO1E106.4296°
 RUMB1E112.2329°
RW18
 LUAN1F109.536°
 GONT1F103.265°
 GOTS1F102.269°
 BOND2A30.3175°
 HALM1H104.7288°
 SOSO1F106.4296°
 RUMB1F112.2329°
RW36
 LUAN1G109.536°
 GONT1G103.265°
 GOTS1G102.269°
 BOND1B30.3175°
 HALM1J104.7288°
 SOSO1G106.4296°
 RUMB1G112.2329°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW18MOXUR (175°)MOXUR 5000ft
MM529 (6mi, 189°) 3000ft
MM528 (2mi, 172°) 2500ft
MM527 (3mi, 155°) 2100ft
RW18NONUB (289°)NONUB 8000ft
MM535 (9mi, 336°) 5000ft
MM534 (5mi, 336°) 4000ft
MM533 (4mi, 290°) 2600ft
MM527 (4mi, 200°) 2100ft
RW18VIDUG (72°)VIDUG 6500ft
MM530 (10mi, 19°) 3000ft
MM527 (5mi, 87°) 2100ft
 RNAVMM527 2100ft
MM526 (2mi, 155°) 1595ft
MM525 (turn) 1307ft
WAMM (4mi, 180°) 373ft
MM524 (turn)
MM523 (7mi, 244°)
MM522 (7mi, 306°)
MM521 (6mi, 175°)
VIDUG (3mi, 44°) 6500ft
VIDUG (turn) 6500ft
RW36NINUV (131°)NINUV 5000ft
MM664 (7mi, 182°) 3000ft
MM660 (4mi, 137°) 1900ft
MM659 (2mi, 66°) 1600ft
RW36SAMAH (317°)SAMAH 7000ft
MM670 (13mi, 310°) 4500ft
MM669 (2mi, 294°) 4000ft
MM668 (5mi, 278°) 2500ft
MM667 (3mi, 314°) 1900ft
MM659 (2mi, 15°) 1600ft
RW36TEBEB (58°)TEBEB 6000ft
MM662 (8mi, 53°) 3500ft
MM661 (2mi, 71°) 3000ft
MM660 (5mi, 91°) 1900ft
MM659 (2mi, 66°) 1600ft
 RNAVMM659 1600ft
MM658 (turn) 1381ft
MM657 (1mi, 21°) 967ft
WAMM (2mi, 5°) 373ft
MM656 (turn)
MM655 (3mi, 320°)
MM654 (4mi, 279°)
MM653 (4mi, 279°)
MM652 (5mi, 320°)
MM651 (7mi, 88°)
NINUV (3mi, 177°) 5000ft
NINUV (turn) 5000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BOND1BNINUVVHFright2 (182)°> 5000ft1.0min timedICAO rules
BOND2AMOXURVHFright9 (189)°> 5000ft1.0min timedICAO rules
GONT1FVIDUGVHFleft199 (19)°> 6500ft1.0min timedICAO rules
GONT1GTEBEBVHFright234 (54)°> 6000ft1.0min timedICAO rules
GOTS1FVIDUGVHFleft199 (19)°> 6500ft1.0min timedICAO rules
GOTS1GTEBEBVHFright234 (54)°> 6000ft1.0min timedICAO rules
HALM1HNONUBVHFleft156 (336)°> 8000ft1.0min timedICAO rules
HALM1JSAMAHVHFright130 (310)°> 7000ft1.0min timedICAO rules
LUAN1FVIDUGVHFleft199 (19)°> 6500ft1.0min timedICAO rules
LUAN1GTEBEBVHFright234 (54)°> 6000ft1.0min timedICAO rules
RUMB1FNONUBVHFleft156 (336)°> 8000ft1.0min timedICAO rules
RUMB1GSAMAHVHFright130 (310)°> 7000ft1.0min timedICAO rules
SOSO1FNONUBVHFleft156 (336)°> 8000ft1.0min timedICAO rules
SOSO1GSAMAHVHFright130 (310)°> 7000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
