Airports for X-Plane

Balikpapan - Balikpapan/sepinggan

Airport details

CountryIndonesia
StateEast Kalimantan
RegionWA
AirspaceUjung Pandang Ctr
MunicipalityBalikpapan
Elevation12ft (4m)
TimezoneGMT +8
Coordinates-1.26472, 116.89415
Magnetic var
Typeland
Available sinceX-Plane v10.32
ICAO codeWALL
IATA codeBPN
FAA coden/a

Communication

Balikpapan/Sepinggan ATIS127.600
Balikpapan/Sepinggan Tower118.700
Balikpapan/Sepinggan Tower118.100
Balikpapan/Sepinggan BALIKPAPAN Approach120.400
Balikpapan/Sepinggan BALIKPAPAN Approach121.100

Approach frequencies

ILS-cat-IRW25110.918.00mi
3° GSRW25110.918.00mi

Runway info

Runway 07 / 25
 length2503m (8212ft)
 bearing67° / 247°
 width45m (148ft)
 surfaceasphalt
 blast zone60m (197ft) / 60m (197ft)

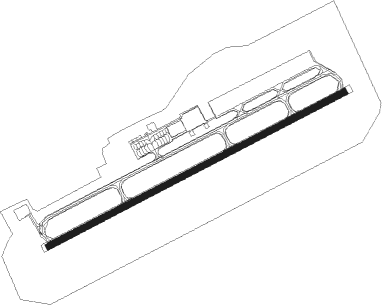

Airport layout


Parking locations

 GA  Gate

Nearby beacons

codeidentifierdistbearingfrequency
OLBALIKPAPAN NDB1.253°365
BPNBALIKPAPAN VOR/DME2.968°117.20
TGSAMARINDA NDB57.522°404

Departure and arrival routes

Transition altitude11000ft
Transition level13000ft
SID end pointsdistanceoutbound heading
RW07
 LUPD1A215mi8°
 ELAP1A175mi64°
 KALK1A142mi83°
 ATGE1A276mi145°
 DADB1A154mi192°
 JIDA1A184mi225°
 AJAM1A186mi252°
 GUGU1A280mi279°
RW25
 LUPD1B215mi8°
 ELAP1B175mi64°
 KALK1B142mi83°
 ATGE1B276mi145°
 DADB1B154mi192°
 JIDA1B184mi225°
 AJAM1B186mi252°
 GUGU1B280mi279°

STAR starting pointsdistanceinbound heading
RW07
 BUMR1A153.612°
 KAYA1A184.045°
 SILJ1A186.272°
 BAHA1A280.299°
 OPIN1A214.7188°
 BIKP1A175.3244°
 IKEM1A141.7263°
 KOWA1A276.1325°
RW25
 BUMR1B153.612°
 KAYA1B184.045°
 SILJ1B186.272°
 BAHA1B280.299°
 OPIN1B214.7188°
 BIKP1B175.3244°
 IKEM1B141.7263°
 KOWA1B276.1325°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BAHA1AKUTAIVHFright245 (65)°2500ft - 4500ft1.0min timedICAO rules
BAHA1ARAJUNVHFright326 (146)°5500ft - 6500ft1.0min timedICAO rules
BAHA1ASAYUPVHFright349 (169)°7500ft - 8500ft1.0min timedICAO rules
BAHA1BBUNYUVHFleft67 (247)°5500ft - 6500ft1.0min timedICAO rules
BAHA1BLAMIUVHFright337 (157)°7500ft - 8500ft1.0min timedICAO rules
BAHA1BLELEBVHFleft68 (248)°2500ft - 4500ft1.0min timedICAO rules
BIKP1AADPUDVHFright173 (353)°5500ft - 6500ft1.0min timedICAO rules
BIKP1AKUTAIVHFright245 (65)°2500ft - 4500ft1.0min timedICAO rules
BIKP1BBUNYUVHFleft67 (247)°5500ft - 6500ft1.0min timedICAO rules
BIKP1BKANPAVHFleft67 (247)°7500ft - 8500ft1.0min timedICAO rules
BIKP1BLELEBVHFleft68 (248)°2500ft - 4500ft1.0min timedICAO rules
BUMR1AADPUDVHFright173 (353)°5500ft - 6500ft1.0min timedICAO rules
BUMR1AKUTAIVHFright245 (65)°2500ft - 4500ft1.0min timedICAO rules
BUMR1ALAVURVHFright169 (349)°7500ft - 8500ft1.0min timedICAO rules
BUMR1BBUNYUVHFleft67 (247)°5500ft - 6500ft1.0min timedICAO rules
BUMR1BLELEBVHFleft68 (248)°2500ft - 4500ft1.0min timedICAO rules
IKEM1AADPUDVHFright173 (353)°5500ft - 6500ft1.0min timedICAO rules
IKEM1AKUTAIVHFright245 (65)°2500ft - 4500ft1.0min timedICAO rules
IKEM1BBUNYUVHFleft67 (247)°5500ft - 6500ft1.0min timedICAO rules
IKEM1BKANPAVHFleft67 (247)°7500ft - 8500ft1.0min timedICAO rules
IKEM1BLELEBVHFleft68 (248)°2500ft - 4500ft1.0min timedICAO rules
KAYA1AADPUDVHFright173 (353)°5500ft - 6500ft1.0min timedICAO rules
KAYA1AKUTAIVHFright245 (65)°2500ft - 4500ft1.0min timedICAO rules
KAYA1BBUNYUVHFleft67 (247)°5500ft - 6500ft1.0min timedICAO rules
KAYA1BLELEBVHFleft68 (248)°2500ft - 4500ft1.0min timedICAO rules
KOWA1AADPUDVHFright173 (353)°5500ft - 6500ft1.0min timedICAO rules
KOWA1AKUTAIVHFright245 (65)°2500ft - 4500ft1.0min timedICAO rules
KOWA1ALAVURVHFright169 (349)°7500ft - 8500ft1.0min timedICAO rules
KOWA1BBUNYUVHFleft67 (247)°5500ft - 6500ft1.0min timedICAO rules
KOWA1BLELEBVHFleft68 (248)°2500ft - 4500ft1.0min timedICAO rules
OPIN1AKUTAIVHFright245 (65)°2500ft - 4500ft1.0min timedICAO rules
OPIN1ARAJUNVHFright326 (146)°5500ft - 6500ft1.0min timedICAO rules
OPIN1ASAYUPVHFright349 (169)°7500ft - 8500ft1.0min timedICAO rules
OPIN1BBUNYUVHFleft67 (247)°5500ft - 6500ft1.0min timedICAO rules
OPIN1BLAMIUVHFright337 (157)°7500ft - 8500ft1.0min timedICAO rules
OPIN1BLELEBVHFleft68 (248)°2500ft - 4500ft1.0min timedICAO rules
SILJ1AKUTAIVHFright245 (65)°2500ft - 4500ft1.0min timedICAO rules
SILJ1ARAJUNVHFright326 (146)°5500ft - 6500ft1.0min timedICAO rules
SILJ1BBUNYUVHFleft67 (247)°5500ft - 6500ft1.0min timedICAO rules
SILJ1BLELEBVHFleft68 (248)°2500ft - 4500ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
