Airports for X-Plane

Mataram - Lombok Intl

Airport details

CountryIndonesia
StateWest Nusa Tenggara
RegionWA
AirspaceUjung Pandang Ctr
MunicipalityLombok Tengah
Elevation312ft (95m)
TimezoneGMT +8
Coordinates-8.75750, 116.27666
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeWADL
IATA codeLOP
FAA coden/a

Communication

Lombok Intl ATIS126.700
Lombok Intl Lombok Tower118.550
Lombok Intl Lombok Approach118.550
Lombok Intl Lombok Dep118.550

Approach frequencies

ILS-cat-IRW13109.918.00mi
3° GSRW13109.918.00mi

Runway info

Runway 13 / 31
 length3306m (10846ft)
 bearing129° / 309°
 width45m (148ft)
 surfaceasphalt
 blast zone60m (197ft) / 0m (0ft)

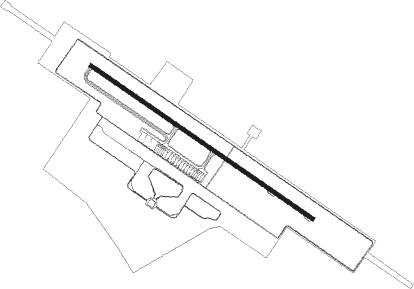

Airport layout


Taxiway locations

 A  B  C  SP
Parking locations

 1  10  11  12  13  14  15  16
 17  18  2  20  21  22  23  24
 3  4  5  6  7  8  9

Nearby beacons

codeidentifierdistbearingfrequency
LMBPRAYA VOR/DME1.3130°116

Departure and arrival routes

Transition altitude11000ft
Transition level13000ft
SID end pointsdistanceoutbound heading
RW13
 PEBG1H49mi76°
 CODO1A29mi248°
 TOKU1A29mi248°
 AGUN1A58mi322°
RW31
 PEBG1J49mi76°
 CODO1B29mi248°
 TOKU1B29mi248°
 AGUN1B58mi322°

STAR starting pointsdistanceinbound heading
RW13
 AGUN1C57.9142°
 PEBG1K49.2256°
RW31
 AGUN1D57.9142°
 PEBG1L49.2256°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW13NOLUB (129°)NOLUB 4500ft
DL401 (3mi, 129°) 3200ft
 RNAVDL401 3200ft
DL402 (5mi, 129°) 2000ft
WADL (6mi, 128°) 357ft
AWANG (14mi, 129°) 4000ft
AWANG (turn) 4000ft
RW31AWANG (309°)AWANG 4000ft
DL601 (3mi, 309°) 3000ft
 RNAVDL601 3000ft
DL602 (5mi, 309°) 2000ft
WADL (6mi, 309°) 393ft
NOLUB (15mi, 309°) 4500ft
NOLUB (turn) 4500ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AGUN1CNOLUBVHFright308 (128)°> 4500ft1.0min timedICAO rules
AGUN1DAWANGVHFleft128 (308)°> 4000ft1.0min timedICAO rules
BIMO1ANOLUBVHFright308 (128)°> 4500ft1.0min timedICAO rules
BIMO1BAWANGVHFleft128 (308)°> 4000ft1.0min timedICAO rules
PATI1ANOLUBVHFright308 (128)°> 4500ft1.0min timedICAO rules
PATI1BAWANGVHFleft128 (308)°> 4000ft1.0min timedICAO rules
PEBG1KNOLUBVHFright308 (128)°> 4500ft1.0min timedICAO rules
PEBG1LAWANGVHFleft128 (308)°> 4000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
