Airports for X-Plane

Makhachkala - Uytash

Airport details

CountryRussian Federation
StateDagestan
RegionUR
AirspaceRostov-na-donu Ctr
MunicipalityKarabudakhkentsky District
Elevation12ft (4m)
TimezoneGMT +3
Coordinates42.81680, 47.65241
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeURML
IATA codeMCX
FAA coden/a

Communication

Uytash MAKHACHKALA Tower121.300
Uytash MAKHACHKALA Approach119.700

Approach frequencies

ILS-cat-IRW14108.318.00mi
ILS-cat-IRW32109.918.00mi
3° GSRW14108.318.00mi
3° GSRW32109.918.00mi
Nearby Points of Interest:
Makhachkala Lighthouse

Runway info

Runway 14 / 32
 length2640m (8661ft)
 bearing140° / 320°
 width42m (138ft)
 surfaceasphalt

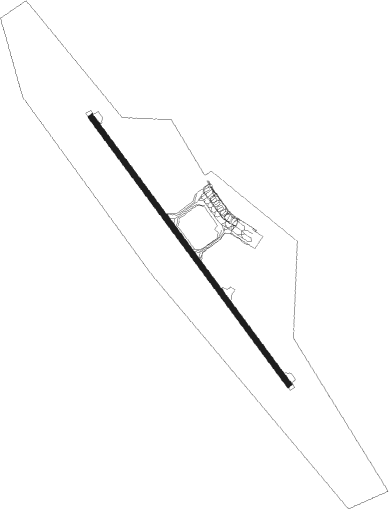

Airport layout


Taxiway locations

 A
Parking locations

 GA  Gate

Nearby beacons

codeidentifierdistbearingfrequency
MKLMAKHACHKALA VOR/DME0.4303°113.20
HUYTASH (MAKHACHKALA) NDB1.2320°740
SUYTASH (MAKHACHKALA) NDB1.3140°740
HCMAKHACHKALA NDB2.7320°365
SMUYTASH (MAKHACHKALA) NDB2.7140°365
TAMAKHACHKALA (TARKI-TAU) NDB11.1320°822

Departure and arrival routes

Transition altitude9859ft
Transition level11000ft
SID end pointsdistanceoutbound heading
RW14
 RIRA1K, RIRA1A, RIRA1N48mi72°
 BALI1N, BALI1K, BALI1A45mi109°
 AGAT1N, AGAT1K, AGAT1A51mi122°
 AGNE1N, AGNE1K, AGNE1A43mi136°
 LARK1A, LARK1K, LARK1L, LARK1N34mi238°
 ALUB1N, ALUB1A, ALUB1K, ALUB1L31mi259°
 DUBK1K, DUBK1L, DUBK1N, DUBK1A38mi287°
 INGU1N, INGU1K, INGU1A56mi317°
 AMKO1N, AMKO1K, AMKO1A49mi349°
RW32
 RIRA1M, RIRA1P, RIRA1B48mi72°
 BALI1P, BALI1M, BALI1B45mi109°
 AGAT1B, AGAT1M, AGAT1P51mi122°
 AGNE1B, AGNE1P, AGNE1M43mi136°
 LARK1P, LARK1M, LARK1B34mi238°
 ALUB1P, ALUB1M, ALUB1B31mi259°
 TA1A251mi263°
 DUBK1M, DUBK1B, DUBK1P38mi287°
 INGU1B, INGU1M, INGU1P56mi317°
 AMKO1P, AMKO1M, AMKO1B49mi349°

STAR starting pointsdistanceinbound heading
ALL
 LARK1C34.458°
 ALUB1C30.779°
 DUBK1C38.2107°
 INGU1C55.8137°
 AMKO1C48.5169°
 RIRA1C48.0252°
 BALI1C44.9289°
 AGAT1C51.2302°
 AGNE1C43.0316°
RW14
 GUDE1E15.320°
 LARK1E, LARK1H, LARK1D34.458°
 ALUB1D, ALUB1E, ALUB1H30.779°
 BUIK1E23.191°
 DUBK1H, DUBK1E, DUBK1D38.2107°
 INGU1H, INGU1E, INGU1D55.8137°
 AMKO1E, AMKO1D, AMKO1H48.5169°
 RIRA1H, RIRA1E, RIRA1D48.0252°
 BALI1D, BALI1E, BALI1H44.9289°
 AGAT1H, AGAT1D, AGAT1E51.2302°
 AGNE1H, AGNE1E, AGNE1D43.0316°
RW32
 GUDE1G15.320°
 LARK1J, LARK1F, LARK1G34.458°
 ALUB1J, ALUB1G, ALUB1F30.779°
 BUIK1G23.191°
 DUBK1J, DUBK1G, DUBK1F38.2107°
 INGU1F, INGU1G, INGU1J55.8137°
 AMKO1F, AMKO1J, AMKO1G48.5169°
 RIRA1F, RIRA1J, RIRA1G48.0252°
 BALI1J, BALI1G, BALI1F44.9289°
 AGAT1J, AGAT1G, AGAT1F51.2302°
 AGNE1G, AGNE1J, AGNE1F43.0316°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW14ML007 (156°)ML007 5500ft
ML009 (6mi, 204°) 3900ft
RW14ML008 (125°)ML008 5500ft
ML009 (6mi, 96°) 3900ft
 RNAVML009 3900ft
ML010 (7mi, 139°) 2400ft
URML (8mi, 140°) 50ft
(3627mi, 228°) 410ft
ML011 (3627mi, 48°)
ML012 (32mi, 341°)
ML051 (7mi, 299°) 5500ft
ML052 (5mi, 261°) 5500ft
ML053 (5mi, 245°) 5500ft
ML054 (5mi, 227°) 5500ft
ML055 (5mi, 203°) 5500ft
ML008 (9mi, 96°) 5500ft
RW32ML001 (305°)ML001 5500ft
ML003 (6mi, 276°) 3900ft
RW32ML002 (336°)ML002 5500ft
ML003 (6mi, 24°) 3900ft
 RNAVML003 3900ft
ML004 (6mi, 320°) 2400ft
URML (8mi, 320°) 64ft
(3627mi, 228°) 420ft
ML005 (3627mi, 48°)
ML006 (25mi, 110°)
ML034 (5mi, 147°) 6000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AGAT1CMKLNDBright141 (321)°> 6800ft1.0min timed205
AGAT1DHCFIXleft321 (141)°> 5000ft1.0min timed215
AGAT1EHFIXleft274 (94)°> 5290ft1.0min timedICAO rules
AGAT1FSMFIXleft2 (182)°22000ft - 29000ft1.5min timed264
AGAT1GSVHFleft306 (126)°22000ft - 29000ft1.5min timed264
AGNE1CMKLNDBright141 (321)°> 6800ft1.0min timed205
AGNE1DHCFIXleft321 (141)°> 5000ft1.0min timed215
AGNE1EHFIXleft274 (94)°> 5290ft1.0min timedICAO rules
AGNE1FSMFIXleft2 (182)°22000ft - 29000ft1.5min timed264
AGNE1GSVHFleft306 (126)°22000ft - 29000ft1.5min timed264
ALUB1CMKLNDBright141 (321)°> 6800ft1.0min timed205
ALUB1DHCFIXleft321 (141)°> 5000ft1.0min timed215
ALUB1EHFIXleft274 (94)°> 5290ft1.0min timedICAO rules
ALUB1FSMFIXleft2 (182)°22000ft - 29000ft1.5min timed264
ALUB1GSVHFleft306 (126)°22000ft - 29000ft1.5min timed264
AMKO1CMKLNDBright141 (321)°> 6800ft1.0min timed205
AMKO1DHCFIXleft321 (141)°> 5000ft1.0min timed215
AMKO1EHFIXleft274 (94)°> 5290ft1.0min timedICAO rules
AMKO1FSMFIXleft2 (182)°22000ft - 29000ft1.5min timed264
AMKO1GSVHFleft306 (126)°22000ft - 29000ft1.5min timed264
AMKO1JML034VHFleft328 (148)°2300ft - 14000ft1.0min timed265
BALI1CMKLNDBright141 (321)°> 6800ft1.0min timed205
BALI1DHCFIXleft321 (141)°> 5000ft1.0min timed215
BALI1EHFIXleft274 (94)°> 5290ft1.0min timedICAO rules
BALI1FSMFIXleft2 (182)°22000ft - 29000ft1.5min timed264
BALI1GSVHFleft306 (126)°22000ft - 29000ft1.5min timed264
BUIK1EHFIXleft274 (94)°> 5290ft1.0min timedICAO rules
BUIK1GSVHFleft306 (126)°22000ft - 29000ft1.5min timed264
DUBK1CMKLNDBright141 (321)°> 6800ft1.0min timed205
DUBK1DHCFIXleft321 (141)°> 5000ft1.0min timed215
DUBK1EHFIXleft274 (94)°> 5290ft1.0min timedICAO rules
DUBK1FSMFIXleft2 (182)°22000ft - 29000ft1.5min timed264
DUBK1GSVHFleft306 (126)°22000ft - 29000ft1.5min timed264
GUDE1EHFIXleft274 (94)°> 5290ft1.0min timedICAO rules
GUDE1GSVHFleft306 (126)°22000ft - 29000ft1.5min timed264
INGU1CMKLNDBright141 (321)°> 6800ft1.0min timed205
INGU1DHCFIXleft321 (141)°> 5000ft1.0min timed215
INGU1EHFIXleft274 (94)°> 5290ft1.0min timedICAO rules
INGU1FSMFIXleft2 (182)°22000ft - 29000ft1.5min timed264
INGU1GSVHFleft306 (126)°22000ft - 29000ft1.5min timed264
INGU1JML034VHFleft328 (148)°2300ft - 14000ft1.0min timed265
LARK1CMKLNDBright141 (321)°> 6800ft1.0min timed205
LARK1DHCFIXleft321 (141)°> 5000ft1.0min timed215
LARK1EHFIXleft274 (94)°> 5290ft1.0min timedICAO rules
LARK1FSMFIXleft2 (182)°22000ft - 29000ft1.5min timed264
LARK1GSVHFleft306 (126)°22000ft - 29000ft1.5min timed264
RIRA1CMKLNDBright141 (321)°> 6800ft1.0min timed205
RIRA1DHCFIXleft321 (141)°> 5000ft1.0min timed215
RIRA1EHFIXleft274 (94)°> 5290ft1.0min timedICAO rules
RIRA1FSMFIXleft2 (182)°22000ft - 29000ft1.5min timed264
RIRA1GSVHFleft306 (126)°22000ft - 29000ft1.5min timed264
RIRA1JML034VHFleft328 (148)°2300ft - 14000ft1.0min timed265
*) magnetic outbound (inbound) holding course
