Nur-sultan - Nur-sultan Nazarbayev Intl
Airport details
| Country | Kazakhstan |
| State | Astana |
| Region | UA |
| Airspace | Nur-sultan Ctr |
| Elevation | 1165ft (355m) |
| Timezone | GMT +6 |
| Coordinates | 51.02250, 71.46616 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | UACC |
| IATA code | TSE |
| FAA code | n/a |
Communication
| Nur-Sultan Nazarbayev Intl ATIS | 127.700 |
| Nur-Sultan Nazarbayev Intl Ground Control | 119.600 |
| Nur-Sultan Nazarbayev Intl Tower | 118.700 |
| Nur-Sultan Nazarbayev Intl Approach | 124.600 |
Approach frequencies
| ILS-cat-III | RW22 | 111.7 | 18.00mi |
| ILS-cat-III | RW04 | 109.5 | 18.00mi |
| 3° GS | RW22 | 111.7 | 18.00mi |
| 3° GS | RW04 | 109.5 | 18.00mi |
Runway info
| Runway 04 / 22 | ||
| length | 3497m (11473ft) | |
| bearing | 57° / 237° | |
| width | 45m (148ft) | |
| surface | asphalt | |
| blast zone | 122m (400ft) / 117m (384ft) | |

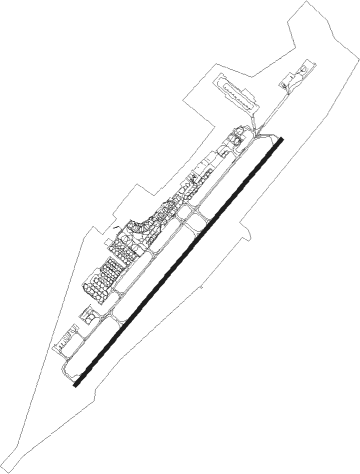

Airport layout
Taxiway locations
Parking locations
|
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| M | NUR-SULTAN NDB | 1.5 | 237° | 654 |
| AST | NUR-SULTAN VOR/DME | 1.7 | 237° | 114.40 |
Departure and arrival routes
| Transition altitude | 3789ft |
| Transition level | 120ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW04 | |||
| OLGA4E, OLGA1A | 65mi | 15° | |
| BOLS1A, BOLS4E | 57mi | 81° | |
| EDAN4E | 57mi | 85° | |
| BANO4E, BANO1A | 67mi | 125° | |
| GURP3E | 66mi | 193° | |
| KOKO1A, KOKO4E | 65mi | 230° | |
| VETU3E, VETU1A | 52mi | 255° | |
| OSRO4E | 56mi | 261° | |
| DIDA1A, DIDA4E | 65mi | 287° | |
| VAGE4E | 63mi | 336° | |
| RW22 | |||
| OLGA4G, OLGA1B | 65mi | 15° | |
| BOLS3G, BOLS1B | 57mi | 81° | |
| EDAN3G | 57mi | 85° | |
| BEDK1B, BEDK3H, BEDK1E, BEDK4G | 57mi | 135° | |
| KOKO1B, KOKO3G | 65mi | 230° | |
| VETU4G | 52mi | 255° | |
| OSRO4G, OSRO1B | 56mi | 261° | |
| KODO4H, KODO4G, KODO1B | 59mi | 280° | |
| KOLU4G | 65mi | 321° | |
| VAGE4G | 63mi | 336° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| RW04 | |||
| GURP1K, GURP1C | 65.8 | 13° | |
| KOKO3S | 64.7 | 50° | |
| VETU3S | 51.6 | 75° | |
| OSRO1K | 56.2 | 81° | |
| KODO1K | 59.2 | 100° | |
| KOLU3S | 21.9 | 128° | |
| VAGE3S, VAGE1K, VAGE1C | 62.9 | 156° | |
| EDAN3S, EDAN1C, EDAN1K | 57.1 | 265° | |
| BEDK3T, BEDK3S, BEDK1C, BEDK1K | 56.8 | 315° | |
| RW22 | |||
| GURP1H, GURP1D | 65.8 | 13° | |
| KOKO3N | 64.7 | 50° | |
| VETU2H, VETU2D, VETU3N | 51.6 | 75° | |
| DIDA3N, DIDA1G, DIDA1D | 64.6 | 107° | |
| VAGE3N, VAGE1H, VAGE1D | 62.9 | 156° | |
| OLGA3N | 64.7 | 195° | |
| BOLS3N | 57.1 | 261° | |
| EDAN3N, EDAN1H, EDAN1D | 57.1 | 265° | |
| BANO1D, BANO1G, BANO3N | 67.3 | 305° | |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| BANO1D | CC220 | VHF | right | 143 (323)° | 17000ft - 20000ft | 1.5min timed | ICAO rules |
| BANO1D | CC240 | VHF | left | 143 (323)° | 9800ft - 12000ft | 1.0min timed | ICAO rules |
| BANO3N | AST | NDB | right | 215 (35)° | > 6000ft | 1.0min timed | ICAO rules |
| BEDK1C | CC440 | VHF | left | 117 (297)° | 16000ft - 18000ft | 1.5min timed | ICAO rules |
| BEDK1C | CC460 | VHF | left | 117 (297)° | 9800ft - 12000ft | 1.0min timed | ICAO rules |
| BEDK3S | AST | NDB | right | 215 (35)° | > 6000ft | 1.0min timed | ICAO rules |
| BEDK3T | AST | NDB | right | 215 (35)° | > 6000ft | 1.0min timed | ICAO rules |
| BEDK3T | LIGMO | VHF | left | 207 (27)° | > 6000ft | 1.0min timed | ICAO rules |
| BOLS3N | AST | NDB | right | 215 (35)° | > 6000ft | 1.0min timed | ICAO rules |
| DIDA1D | ASDEX | VHF | left | 306 (126)° | 7500ft - 8500ft | 1.0min timed | ICAO rules |
| DIDA1D | CC249 | VHF | left | 267 (87)° | 17000ft - 19000ft | 1.5min timed | ICAO rules |
| DIDA3N | AST | NDB | right | 215 (35)° | > 6000ft | 1.0min timed | ICAO rules |
| EDAN1C | CC450 | VHF | left | 61 (241)° | 16000ft - 20000ft | 1.5min timed | ICAO rules |
| EDAN1C | CC460 | VHF | left | 117 (297)° | 9800ft - 12000ft | 1.0min timed | ICAO rules |
| EDAN1D | CC232 | VHF | left | 62 (242)° | 15000ft - 18000ft | 1.5min timed | ICAO rules |
| EDAN1D | CC240 | VHF | left | 143 (323)° | 9800ft - 12000ft | 1.0min timed | ICAO rules |
| EDAN3N | AST | NDB | right | 215 (35)° | > 6000ft | 1.0min timed | ICAO rules |
| EDAN3S | AST | NDB | right | 215 (35)° | > 6000ft | 1.0min timed | ICAO rules |
| GURP1C | CC441 | VHF | left | 183 (3)° | 15000ft - 17000ft | 1.5min timed | ICAO rules |
| GURP1C | CC460 | VHF | left | 117 (297)° | 9800ft - 12000ft | 1.0min timed | ICAO rules |
| GURP1D | CC211 | VHF | left | 197 (17)° | 16000ft - 18000ft | 1.5min timed | ICAO rules |
| GURP1D | CC240 | VHF | left | 143 (323)° | 9800ft - 12000ft | 1.0min timed | ICAO rules |
| KODO1C | CC421 | VHF | left | 283 (103)° | 16000ft - 18000ft | 1.5min timed | ICAO rules |
| KODO1C | CC424 | VHF | left | 307 (127)° | 7000ft - 9000ft | 1.0min timed | ICAO rules |
| KODO3S | AST | NDB | right | 215 (35)° | > 6000ft | 1.0min timed | ICAO rules |
| KODO3T | APTUS | VHF | left | 293 (113)° | > 7000ft | 1.0min timed | ICAO rules |
| KODO3T | AST | NDB | right | 215 (35)° | > 6000ft | 1.0min timed | ICAO rules |
| KOKO3N | AST | NDB | right | 215 (35)° | > 6000ft | 1.0min timed | ICAO rules |
| KOKO3N | LIGMO | VHF | left | 207 (27)° | > 6000ft | 1.0min timed | ICAO rules |
| KOKO3S | AST | NDB | right | 215 (35)° | > 6000ft | 1.0min timed | ICAO rules |
| KOKO3S | LIGMO | VHF | left | 207 (27)° | > 6000ft | 1.0min timed | ICAO rules |
| KOLU3S | AST | NDB | right | 215 (35)° | > 6000ft | 1.0min timed | ICAO rules |
| KOLU3S | IBLAN | VHF | left | 346 (166)° | > 7000ft | 1.0min timed | ICAO rules |
| OLGA3N | AST | NDB | right | 215 (35)° | > 6000ft | 1.0min timed | ICAO rules |
| OSRO1C | CC424 | VHF | left | 307 (127)° | 7000ft - 9000ft | 1.0min timed | ICAO rules |
| OSRO1C | CC430 | VHF | left | 240 (60)° | 15000ft - 16000ft | 1.5min timed | ICAO rules |
| VAGE1C | CC410 | VHF | right | 353 (173)° | 18000ft - 20000ft | 1.5min timed | ICAO rules |
| VAGE1C | CC424 | VHF | left | 307 (127)° | 7000ft - 9000ft | 1.0min timed | ICAO rules |
| VAGE1D | ASDEX | VHF | left | 306 (126)° | 7500ft - 8500ft | 1.0min timed | ICAO rules |
| VAGE1D | CC250 | VHF | right | 325 (145)° | 16000ft - 18000ft | 1.5min timed | ICAO rules |
| VAGE3N | AST | NDB | right | 215 (35)° | > 6000ft | 1.0min timed | ICAO rules |
| VAGE3S | AST | NDB | right | 215 (35)° | > 6000ft | 1.0min timed | ICAO rules |
| VAGE3S | IBLAN | VHF | left | 346 (166)° | > 7000ft | 1.0min timed | ICAO rules |
| VETU2D | ASDEX | VHF | left | 306 (126)° | 7500ft - 8500ft | 1.0min timed | ICAO rules |
| VETU2D | CC262 | VHF | left | 188 (8)° | 15000ft - 16000ft | 1.0min timed | ICAO rules |
| VETU3N | AST | NDB | right | 215 (35)° | > 6000ft | 1.0min timed | ICAO rules |
| VETU3S | AST | NDB | right | 215 (35)° | > 6000ft | 1.0min timed | ICAO rules |
| *) magnetic outbound (inbound) holding course | |||||||
