Airports for X-Plane

Cúcuta - Camilo Daza Intl

Airport details

CountryColombia
StateNorte de Santander
RegionSK
AirspaceBogota Ctr
MunicipalityCúcuta
Elevation1097ft (334m)
TimezoneGMT -5
Coordinates7.92535, -72.50936
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSKCC
IATA codeCUC
FAA coden/a

Communication

Camilo Daza Intl ATIS113.300
Camilo Daza Intl Camilo Daza Tower118.100
Camilo Daza Intl Approach South119.600
Camilo Daza Intl Approach North119.900

Approach frequencies

ILS-cat-IRW16109.918.00mi
ILS-cat-IRW21110.318.00mi
3° GSRW16109.918.00mi
3° GSRW21110.318.00mi

Runway info

Runway 16 / 34
 length2254m (7395ft)
 bearing149° / 329°
 width45m (148ft)
 surfaceasphalt
 displ threshold3m (10ft) / 0m (0ft)
 blast zone144m (472ft) / 30m (98ft)
Runway 03 / 21
 length1934m (6345ft)
 bearing17° / 197°
 width45m (148ft)
 surfaceasphalt
 blast zone30m (98ft) / 30m (98ft)

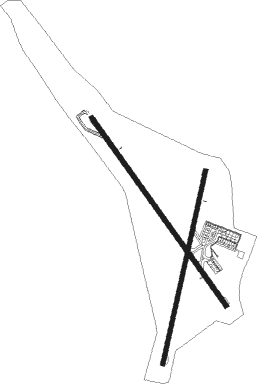

Airport layout


Taxiway locations

 A  B  C
Parking locations

 1  10  11  12  13  14  1H  2
 2H  3  3H  4  4H  5  5H  6
 7  8  8A  8B  8C  9  Cargo1  Cargo2
 cargo3  cargo4  cargo5  cargo6

Nearby beacons

codeidentifierdistbearingfrequency
CUCCUCUTA VOR/DME0.5331°113.30
UCCUCUTA NDB1.8327°264
CUCUCUTA NDB7.6329°395
LFALA FRIA VOR/DME23.737°113
STDSANTO DOMINGO TACAN36.1126°115.30
PVAPUERTO VIVAS VOR/DME48122°114.20
EVGEL VIGIA VOR/DME64.750°116.80
EVGEL VIGIA NDB65.450°393

Departure and arrival routes

Transition altitude18000ft
Transition level19000ft
SID end pointsdistanceoutbound heading
RW03
 TORA2A, TORA1K27mi236°
 DIMI6A48mi308°
 TIBU6A43mi345°
RW16
 TORA1B, TORA1J27mi236°
 DIMI4B48mi308°
 TIBU4B43mi345°
RW21
 TORA1M, TORA1L27mi236°
 DIMI1D48mi308°
 TIBU1D43mi345°
RW34
 TORA1K, TORA2A27mi236°
 DIMI6A48mi308°
 TIBU6A43mi345°

STAR starting pointsdistanceinbound heading
ALL
 ESNU2A, ESNU2B29.030°
 UMPE1A25.2359°
RW21
 ESNU1D, ESNU1C29.030°
 DIMI1E, DIMI1C47.5128°
 TIBU1C, TIBU1E42.7165°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ESNU2ACUCNDBleft185 (5)°6000ft - 19500ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
