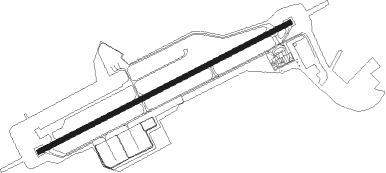

Olongapo City - Subic Bay Intl
Airport details
| Country | Philippines |
| State | Bataan |
| Region | RP |
| Airspace | Manila Ctr |
| Elevation | 62ft (19m) |
| Timezone | GMT +8 |
| Coordinates | 14.79554, 120.28710 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | RPLB |
| IATA code | SFS |
| FAA code | n/a |
Communication
| Subic Bay Intl ATIS | 134.400 |
| Subic Bay Intl Clearance DEL | 121.300 |
| Subic Bay Intl Tower | 122.200 |
| Subic Bay Intl Tower | 118.200 |
| Subic Bay Intl Ground Control | 121.800 |
| Subic Bay Intl Approach | 119.100 |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| SBA | SUBIC BAY VOR/DME | 3.9 | 247° | 113.50 |
| CIA | CLARK VOR/DME | 28.3 | 35° | 113.10 |
| MIA | MANILA VOR/DME | 46 | 111° | 114.40 |
| CAB | CABANATUAN VOR/DME | 59.3 | 47° | 112.70 |
Departure and arrival routes
| Transition altitude | 11000ft |
| Transition level | 13000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW07 | |||
| KIB2A | 13mi | 30° | |
| SUE2A | 42mi | 192° | |
| EXO2A | 50mi | 209° | |
| SLG2A | 37mi | 233° | |
| VIL2A, VIL2C | 22mi | 354° | |
| RW25 | |||
| KIB2B | 13mi | 30° | |
| SUE2B | 42mi | 192° | |
| EXO2B | 50mi | 209° | |
| SLG2B | 37mi | 233° | |
| VIL2B, VIL2D | 22mi | 354° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| ALL | |||
| RSL1, SUE1 | 57.5 | 11° | |
| EXO1 | 116.9 | 53° | |
| VIL1 | 52.7 | 180° | |
| SMO1B | 21.5 | 264° | |
| NAT1B | 17.7 | 296° | |
| RW07 | |||
| EXOR1G | 50.0 | 29° | |
| SILA1G | 36.7 | 53° | |
| KIBO1G | 13.0 | 210° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW07-Y | GORDO (47°) | GORDO 5000ft JUNPI (5mi, 352°) 4000ft |
| RW07-Y | RICHA (82°) | RICHA 5000ft JUNPI (5mi, 132°) 4000ft |
| RNAV | JUNPI 4000ft LB544 (5mi, 63°) 2420ft LB549 (7mi, 63°) 94ft LB546 (8mi, 341°) LB547 (7mi, 311°) LB548 (13mi, 228°) RICHA (6mi, 152°) 5000ft RICHA (turn) 5000ft | |
| RW07-Z | GORDO (47°) | GORDO 5000ft JUNPI (5mi, 352°) 4000ft |
| RW07-Z | RICHA (82°) | RICHA 5000ft JUNPI (5mi, 132°) 4000ft |
| RNAV | JUNPI 4000ft LB544 (5mi, 63°) 2420ft LB545 (6mi, 63°) 386ft LB546 (8mi, 347°) LB547 (7mi, 311°) LB548 (13mi, 228°) RICHA (6mi, 152°) 5000ft RICHA (turn) 5000ft |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| KIBO1G | RICHA | VHF | right | 315 (135)° | > 5000ft | 1.0min timed | ICAO rules |
| *) magnetic outbound (inbound) holding course | |||||||
Disclaimer
The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
