Airports for X-Plane

Kaitaia

Airport details

CountryNew Zealand
StateNorthland
RegionNZ
MunicipalityTe Hiku Community
Elevation270ft (82m)
TimezoneGMT +12
Coordinates-35.07000, 173.28528
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeNZKT
IATA codeKAT
FAA coden/a

Communication

Kaitaia CTAF119.100
Kaitaia CHRISTCHURCH FIS127.100

Runway info

Runway 12 / 30
 length1408m (4619ft)
 bearing137° / 317°
 width30m (98ft)
 surfaceasphalt
Runway 18 / 36
 length1190m (3904ft)
 bearing205° / 25°
 width30m (98ft)
 surfacegravel
 displ threshold79m (259ft) / 0m (0ft)
 blast zone82m (269ft) / 79m (259ft)

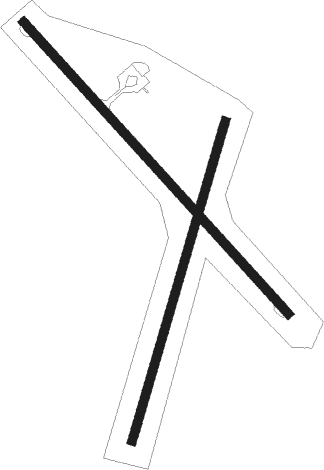

Airport layout


Nearby beacons

codeidentifierdistbearingfrequency
KTKAITAIA NDB3.2314°238
KKKERIKERI NDB32.8107°226

Departure and arrival routes

Transition altitude13000ft
Transition level15000ft
SID end pointsdistanceoutbound heading
RW12
 VALEY217mi105°
 BROA2B27mi127°

STAR starting pointsdistanceinbound heading
RW30
 ARR3010.6286°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW12STEED (137°)STEED 2000ft
 RNAVSTEED 3775ft
FF12 (5mi, 137°) 2180ft
MA12 (5mi, 137°) 592ft
(8672mi, 281°) 770ft
STEED (8678mi, 101°) 2000ft
STEED (turn)
RW30PERIA (286°)PERIA 3600ft
 RNAVPERIA 3745ft
FF30 (7mi, 276°) 1515ft
MA30 (3mi, 302°) 563ft
(8670mi, 281°) 770ft
PERIA (8669mi, 101°) 3600ft
PERIA (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ARR12STEEDVHFright304 (124)°2000ft - 60000ftDME 4.0miICAO rules
ARR30PERIAVHFright79 (259)°3600ft - 60000ftDME 4.0miICAO rules
*) magnetic outbound (inbound) holding course
