Airports for X-Plane offers a convenient way to explore airports and their related communication information for the X-Plane flight simulator. It only uses data from the X-Plane flight simulator itself, and is therefore more reliable than the data that comes from real aviation websites. You can search for airports by using the ICAO code, or browse for airports per country and state. The information displayed is categorized by airport details, runway information, airport communication, approach frequencies (ILS and Glidepath details), details of nearby beacons, SIDs, STARs and approach procedures.

hospital airport terminal aircraft takeoff near landing luggage taxiway international airport airdrome air safety control tower airstrip airports government airline embassy stolport outskirts airbus

Airports for X-Plane

Crotone

Airport details

CountryItaly
StateCalabria
RegionLI
AirspaceBrindisi Ctr
MunicipalityIsola di Capo Rizzuto
Elevation520ft (158m)
TimezoneGMT +1
Coordinates38.99667, 17.07917
Magnetic var
Typeland
Available sinceX-Plane v10.35
ICAO codeLIBC
IATA codeCRV
FAA coden/a

Communication

Crotone INFO119.100

Runway info

Runway 17 / 35
 length2003m (6572ft)
 bearing166° / 346°
 width45m (148ft)
 surfaceasphalt
 displ threshold166m (545ft) / 0m (0ft)
 blast zone60m (197ft) / 0m (0ft)

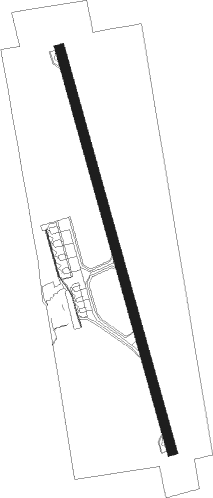

Airport layout


Taxiway locations

 A  B
Parking locations

 GA  Stand

Nearby beacons

codeidentifierdistbearingfrequency
CRNCROTONE VOR/DME0.198°117.10
CDCCARAFFA VORTAC36.2251°117.30
LMTLAMEZIA VOR/DME38.4264°112.50

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW17
 GEMV9G35mi81°
 ADRE8G32mi104°
 CDC7G36mi251°
 APVA9G53mi272°
RW35
 GEMV9D35mi81°
 ADRE8D32mi104°
 CDC7D36mi251°
 APVA9D53mi272°

STAR starting pointsdistanceinbound heading
ALL
 CDC3E36.271°
 LMT4B38.384°
RW17
 CDC4A12.871°
 LMT4A10.884°
 GEMV4A20.1261°
 ADRE4A20.1283°
RW35
 CDC4A12.871°
 LMT4A10.884°
 GEMV4A20.1261°
 ADRE4A20.1283°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ADRE4ACRNNDBleft15 (195)°> 4000ft1.0min timed200
CDC3ERIROXVHFright169 (349)°> 4000ftDME 4.0mi210
CDC4ACRNNDBleft15 (195)°> 4000ft1.0min timed200
GEMV4ACRNNDBleft15 (195)°> 4000ft1.0min timed200
LMT4ACRNNDBleft15 (195)°> 4000ft1.0min timed200
LMT4ALMTNDBright273 (93)°> 6000ft1.0min timed210
LMT4BLMTNDBright273 (93)°> 6000ft1.0min timed210
LMT4BRIROXVHFright169 (349)°> 4000ftDME 4.0mi210
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
