Airports for X-Plane

Minneapolis - Minneapolis Saint Paul Intl

Airport details

CountryUnited States of America
StateMinnesota
RegionK3
AirspaceMinneapolis Ctr
MunicipalityHennepin County
Elevation839ft (256m)
TimezoneGMT -6
Coordinates44.88197, -93.22178
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKMSP
IATA codeMSP
FAA codeMSP

Communication

Minneapolis Saint Paul Intl ATIS135.350
Minneapolis Saint Paul Intl ATIS120.800
Minneapolis Saint Paul Intl UNICOM122.950
Minneapolis Saint Paul Intl Clearance DEL133.200
Minneapolis Saint Paul Intl Ground Control121.800
Minneapolis Saint Paul Intl Ground Control121.900
Minneapolis Saint Paul Intl Ground Control127.925
Minneapolis Saint Paul Intl Tower126.700
Minneapolis Saint Paul Intl Tower123.950
Minneapolis Saint Paul Intl PRM119.975
Minneapolis Saint Paul Intl Approach119.300
Minneapolis Saint Paul Intl PRM132.525
Minneapolis Saint Paul Intl Approach123.950
Minneapolis Saint Paul Intl Approach126.950
Minneapolis Saint Paul Intl Departure124.700
Minneapolis Saint Paul Intl Departure125.750

Approach frequencies

LOCRW22110.518.00mi
LOCRW04109.318.00mi
LOCRW17110.9518.00mi
ILS-cat-IIIRW35110.9518.00mi
ILS-cat-IIIRW12R110.318.00mi
ILS-cat-IIIRW12L110.718.00mi
ILS-cat-IIRW30L110.318.00mi
ILS-cat-IRW30R110.718.00mi
3° GSRW30R110.718.00mi
3° GSRW30L110.318.00mi
3° GSRW12L110.718.00mi
3° GSRW12R110.318.00mi
3° GSRW35110.9518.00mi
Nearby Points of Interest:
Fort Snelling National Cemetery
-
Nokomis Knoll Residential Historic District
-
Minnesota Veterans Home
-
Sibley House Historic Site
-
William and Catherine Davern Farm House
-
Riley Lucas Bartholomew House
-
Arthur and Edith Lee House
-
Roosevelt Library
-
Station 13
-
Harry W. Jones House
-
Derham Hall and Our Lady of Victory Chapel, College of Saint Catherine
-
Frederick Spangenberg House
-
Cedar Avenue Bridge
-
Charles and Grace Parker House
-
Lena O. Smith House
-
Dr. Ward Beebe House
-
Hosmer Library
-
Eastcliff
-
Floyd B. Olson House
-
East Lake Library
-
Theodore Wirth House-Administration Building
-
Meeker Island Lock and Dam
-
Midtown Exchange
-
Charles Thompson Memorial Hall
-
Triune Masonic Temple

Runway info

Runway 17 / 35
 length2440m (8005ft)
 bearing165° / 345°
 width46m (151ft)
 surfaceconcrete
 blast zone122m (400ft) / 123m (404ft)
Runway 12R / 30L
 length3050m (10007ft)
 bearing113° / 293°
 width61m (200ft)
 surfaceconcrete
 blast zone255m (837ft) / 241m (791ft)
Runway 12L / 30R
 length2495m (8186ft)
 bearing113° / 293°
 width46m (151ft)
 surfaceconcrete
 displ threshold0m (0ft) / 62m (203ft)
 blast zone122m (400ft) / 122m (400ft)
Runway 4 / 22
 length3356m (11010ft)
 bearing55° / 235°
 width46m (151ft)
 surfaceconcrete
 displ threshold475m (1558ft) / 304m (997ft)
 blast zone63m (207ft) / 128m (420ft)

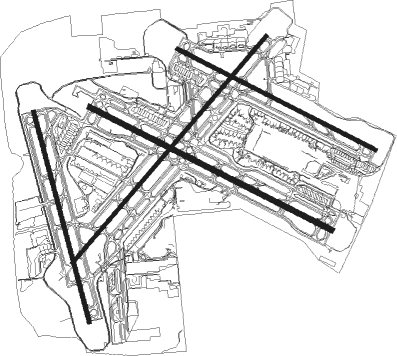

Airport layout


Taxiway locations

 A  A1  A10  A2  A3  A4  A5  A7
 A8  A9  B  C  C1  C10  C2  C5
 C6  C9  D  G  H  J  K  K1
 K10  K2  K3  K6  K8  L  L10  L3
 L5  L6  L7  L9  M  M2  M6  N
 P  P1  P10  P2  P3  P4  P8  P9
 Q  R  R10  R3  R9  S  S1  S2
 S3  S4  T  W  W1  W10  W2  W3
 W5  W6  W7  W8  W9  Y  Z
Parking locations

 A11  A12  A13  A14  A2  A3  A4  A6
 A7  A8  A9  Air  Apron  B10  B12  B14
 B15A  B15B  B15C  B16  B2  B4  B6  B8
 C1  C10  C11  C12  C13  C14  C15  C16
 C17  C19  C2  C20  C21  C22  C23  C24
 C25  C26  C27  C3  C4  C5  C6  C7
 C8  C9  D1  D2  D3  D4  D5  D6
 E1  E10  E11  E12  E13  E14  E15  E16
 E2  E3  E4  E5  E6  E7  E8  E9
 F1  F10  F11  F12  F13  F14  F15  F16
 F2  F3  F4  F5  F6  F7  F8  F9
 G1  G11  G12  G13  G14  G15  G17  G18
 G19  G2  G20  G21  G22  G3  G4  G6
 G8  G9  GA  H1  H10  H11  H12  H13
 H14  H15  H16  H2  H3  H4  H5  H6
 H7  H8  H9  Infield  Remote  US  West

Nearby beacons

codeidentifierdistbearingfrequency
MSPMINNEAPOLIS VOR/DME1315°115.30
FCMFLYING CLOUD (MINNEAPOLIS VOR/DME10256°117.70
FGTFARMINGTON VORTAC15.1171°115.70
GEPGOPHER (MINNEAPOLIS) VORTAC17330°117.30
RGREGUE (RED WING) NDB29.8116°274
FOWHALFWAY (MORRISTOWN) VOR/DME41.1192°111.20
PNMPRINCETON NDB44.1331°368
STHUSSK (ST CLOUD) NDB47.8309°342
OWTONNA (OWATONNA) NDB48.6175°379
MKTMANKATO VOR/DME49.5226°110.80
ROSRUSH CITY NDB50.118°282
STCSAINT CLOUD VOR/DME53.4309°112.10
RZNDME66.742°109.40
BXRBIG DOCTOR (SIREN) NDB66.942°203

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW04
 COULT7169mi111°
 ZMBRO795mi119°
 RST1144mi161°
 ORSKY2249mi214°
 SCHEP9278mi246°
 LEINY6187mi272°
 DWN8220mi276°
 SMERF7194mi283°
RW12 (ALL)
 COULT7169mi111°
 ZMBRO795mi119°
 RST1144mi161°
 ORSKY2249mi214°
 SCHEP9278mi246°
 LEINY6187mi272°
 DWN8220mi276°
 SMERF7194mi283°
RW17
 MEDOW416mi4°
 COULT7169mi111°
 ZMBRO795mi119°
 RST1144mi161°
 ORSKY2249mi214°
 HSTIN4192mi218°
 SLAYR4163mi242°
 SCHEP9278mi246°
 LEINY6187mi272°
 DWN8220mi276°
 SMERF7194mi283°
RW22
 COULT7169mi111°
 ZMBRO795mi119°
 RST1144mi161°
 ORSKY2249mi214°
 SCHEP9278mi246°
 LEINY6187mi272°
 DWN8220mi276°
 SMERF7194mi283°
RW30 (ALL)
 COULT7169mi111°
 ZMBRO795mi119°
 RST1144mi161°
 ORSKY2249mi214°
 SCHEP9278mi246°
 LEINY6187mi272°
 DWN8220mi276°
 SMERF7194mi283°
RW35
 COULT7169mi111°
 ZMBRO795mi119°
 RST1144mi161°
 ORSKY2249mi214°
 SCHEP9278mi246°
 LEINY6187mi272°
 DWN8220mi276°
 SMERF7194mi283°

STAR starting pointsdistanceinbound heading
RW04
 NITZR331.616°
 TWOLF340.420°
 TORGY329.479°
 BAINY330.0151°
 MUSCL328.5259°
 KKILR331.2271°
 KASPR723.0356°
 BLUEM430.4358°
RW12 (ALL)
 TWOLF340.420°
 TORGY329.479°
 BAINY330.0151°
 KASPR723.0356°
RW12L
 NITZR331.616°
 MUSCL328.5259°
 KKILR331.2271°
 BLUEM430.4358°
RW12R
 NITZR331.616°
 MUSCL328.5259°
 KKILR331.2271°
 BLUEM430.4358°
RW17
 NITZR331.616°
 TWOLF340.420°
 TORGY329.479°
 BAINY330.0151°
 MUSCL328.5259°
 KKILR331.2271°
 KASPR723.0356°
 BLUEM430.4358°
RW22
 NITZR331.616°
 TWOLF340.420°
 TORGY329.479°
 BAINY330.0151°
 MUSCL328.5259°
 KKILR331.2271°
 KASPR723.0356°
 BLUEM430.4358°
RW30 (ALL)
 NITZR331.616°
 TWOLF340.420°
 MUSCL328.5259°
 KKILR331.2271°
 KASPR723.0356°
 BLUEM430.4358°
RW30L
 TORGY329.479°
 BAINY330.0151°
RW30R
 TORGY329.479°
 BAINY330.0151°
RW35
 NITZR331.616°
 TWOLF340.420°
 TORGY329.479°
 BAINY330.0151°
 MUSCL328.5259°
 KKILR331.2271°
 KASPR723.0356°
 BLUEM430.4358°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04LYDIA (43°)LYDIA
KETAM (9mi, 26°) 4000ft
 RNAVKETAM 4000ft
IGEPY (6mi, 54°) 2300ft
KMSP (5mi, 55°) 887ft
(5542mi, 116°) 1300ft
GEP (5548mi, 296°) 3000ft
GEP (turn)
RW12LYCCJAY (115°)CCJAY 7000ft
UBTYA (3mi, 113°) 6000ft
ALGIN (3mi, 113°) 5000ft
HAMML (3mi, 113°) 4000ft
WASHY (3mi, 113°) 3000ft
RW12LYCMMOE (235°)CMMOE 8000ft
FSCOT (5mi, 293°) 7000ft
INGLS (3mi, 293°) 6000ft
GLDON (4mi, 260°) 4500ft
WASHY (4mi, 160°) 3000ft
RW12LYKAYQU (138°)KAYQU 7000ft
SHUUT (7mi, 181°) 5000ft
HAMML (6mi, 142°) 4000ft
WASHY (3mi, 113°) 3000ft
 RNAVWASHY 3000ft
KMSP (7mi, 117°) 891ft
(5542mi, 116°) 1300ft
KANAC (5530mi, 296°) 3000ft
KANAC (turn)
RW12LZCCJAY (115°)CCJAY
UBTYA (3mi, 113°) 6000ft
ALGIN (3mi, 113°) 5000ft
HAMML (3mi, 113°) 4000ft
RW12LZKAYQU (138°)KAYQU 7000ft
SHUUT (7mi, 181°) 5000ft
HAMML (6mi, 142°) 4000ft
 RNAVHAMML 4000ft
WASHY (3mi, 113°) 3000ft
AASUN (5mi, 113°) 1420ft
KMSP (2mi, 128°) 891ft
(5542mi, 116°) 1300ft
KANAC (5530mi, 296°) 3000ft
KANAC (turn)
RW12RYGREAK (51°)GREAK 8000ft
TIETN (6mi, 293°) 7500ft
EEDDN (3mi, 293°) 7000ft
KRLSN (6mi, 22°) 4400ft
ZESTY (2mi, 102°) 4000ft
RW12RYKRUGG (95°)KRUGG 7000ft
EFEXX (5mi, 53°) 6000ft
KRLSN (6mi, 91°) 4400ft
ZESTY (2mi, 102°) 4000ft
RW12RYPAETN (113°)PAETN 7000ft
UTHNK (3mi, 113°) 6000ft
WAYZA (3mi, 113°) 5000ft
ZESTY (3mi, 113°) 4000ft
 RNAVZESTY 4000ft
KINNS (3mi, 113°) 3000ft
KMSP (7mi, 114°) 892ft
(5542mi, 116°) 1300ft
FGT (5541mi, 296°) 3000ft
FGT (turn)
RW12RZKRUGG (95°)KRUGG 7000ft
EFEXX (5mi, 53°) 6000ft
ZESTY (7mi, 94°) 4000ft
RW12RZPAETN (113°)PAETN
UTHNK (3mi, 113°) 6000ft
WAYZA (3mi, 113°) 5000ft
ZESTY (3mi, 113°) 4000ft
 RNAVZESTY 4000ft
KINNS (3mi, 113°) 3000ft
WABBS (5mi, 113°) 1420ft
KMSP (2mi, 114°) 892ft
(5542mi, 116°) 1300ft
FGT (5541mi, 296°) 3000ft
FGT (turn)
RW22WHISK (225°)WHISK
FATES (7mi, 208°) 4000ft
 RNAVFATES 4000ft
JALUN (6mi, 235°) 2600ft
KMSP (6mi, 234°) 883ft
(5542mi, 116°) 1190ft
JOGTO (5545mi, 296°)
FGT (13mi, 152°) 3000ft
FGT (turn)
RW30LYGEEQU (283°)GEEQU 7000ft
PIGZI (8mi, 267°) 5000ft
AABEZ (3mi, 294°) 4000ft
RW30LYHAPTN (318°)HAPTN 7000ft
DBLEM (5mi, 48°) 6000ft
BBUCK (5mi, 316°) 4400ft
AABEZ (1mi, 304°) 4000ft
RW30LYHASTI (294°)HASTI 7000ft
PINKE (3mi, 294°) 6000ft
PIGZI (3mi, 294°) 5000ft
AABEZ (3mi, 294°) 4000ft
RW30LYMAUER (23°)MAUER 8000ft
LEDRZ (5mi, 113°) 7500ft
TONEE (5mi, 113°) 7000ft
BBUCK (6mi, 53°) 4400ft
AABEZ (1mi, 304°) 4000ft
 RNAVAABEZ 4000ft
NARCO (3mi, 294°) 3000ft
KMSP (8mi, 293°) 869ft
WOXEB (20mi, 293°) 3000ft
WOXEB (turn)
RW30LZGEEQU (283°)GEEQU 7000ft
PIGZI (8mi, 267°) 5000ft
AABEZ (3mi, 294°) 4000ft
RW30LZHAPTN (318°)HAPTN 7000ft
DBLEM (5mi, 48°) 6000ft
AABEZ (7mi, 313°) 4000ft
RW30LZHASTI (294°)HASTI 7000ft
PINKE (3mi, 294°) 6000ft
PIGZI (3mi, 294°) 5000ft
AABEZ (3mi, 294°) 4000ft
 RNAVAABEZ 4000ft
NARCO (3mi, 294°) 3000ft
EAGAN (5mi, 293°) 1520ft
KMSP (3mi, 293°) 869ft
(5542mi, 116°) 1023ft
WOXEB (5559mi, 296°) 3000ft
WOXEB (turn)
RW30RYGEEQU (283°)GEEQU 7000ft
SAMMZ (10mi, 276°) 4000ft
JACKO (3mi, 294°) 3000ft
RW30RYGROVZ (292°)GROVZ 7000ft
WULAM (3mi, 294°) 6000ft
BONNA (3mi, 294°) 5000ft
SAMMZ (3mi, 294°) 4000ft
JACKO (3mi, 294°) 3000ft
RW30RYOSMOH (234°)OSMOH 8000ft
HIGHA (6mi, 114°) 6000ft
COTTG (4mi, 161°) 4500ft
RVERR (3mi, 249°) 3500ft
JACKO (2mi, 282°) 3000ft
RW30RYTRTEL (272°)TRTEL 7000ft
SOGGY (6mi, 234°) 5000ft
SAMMZ (6mi, 271°) 4000ft
JACKO (3mi, 294°) 3000ft
 RNAVJACKO 3000ft
KMSP (8mi, 290°) 875ft
(5542mi, 116°) 1300ft
GEP (5548mi, 296°) 3000ft
GEP (turn)
RW30RZGEEQU (283°)GEEQU 7000ft
SAMMZ (10mi, 276°) 4000ft
RW30RZGROVZ (292°)GROVZ
WULAM (3mi, 294°) 6000ft
BONNA (3mi, 294°) 5000ft
SAMMZ (3mi, 294°) 4000ft
RW30RZTRTEL (272°)TRTEL 7000ft
SOGGY (6mi, 234°) 5000ft
SAMMZ (6mi, 271°) 4000ft
 RNAVSAMMZ 4000ft
JACKO (3mi, 294°) 3000ft
CIJOT (5mi, 293°) 1540ft
KMSP (3mi, 285°) 875ft
(5542mi, 116°) 1300ft
GEP (5548mi, 296°) 3000ft
GEP (turn)
RW35-YBRNVL (51°)BRNVL 8000ft
HRBIE (3mi, 178°) 7000ft
HANRA (3mi, 177°) 6000ft
CHRMR (5mi, 95°) 4300ft
ROZEE (1mi, 3°) 4000ft
RW35-YJAMEZ (349°)JAMEZ 7000ft
OBERR (3mi, 346°) 6000ft
SSTAR (3mi, 346°) 5000ft
ROZEE (3mi, 346°) 4000ft
RW35-YNNEWW (5°)NNEWW 7000ft
BUHZZ (5mi, 20°) 5500ft
CHRMR (5mi, 20°) 4300ft
ROZEE (1mi, 3°) 4000ft
 RNAVROZEE 4000ft
LORAH (3mi, 346°) 3000ft
KMSP (7mi, 354°) 888ft
(5542mi, 116°) 1300ft
LYDIA (5554mi, 296°) 3000ft
LYDIA (turn)
RW35-ZJAMEZ (349°)JAMEZ 7000ft
OBERR (3mi, 346°) 6000ft
SSTAR (3mi, 346°) 5000ft
ROZEE (3mi, 346°) 4000ft
RW35-ZNNEWW (5°)NNEWW 7000ft
ROZEE (11mi, 19°) 4000ft
 RNAVROZEE 4000ft
LORAH (3mi, 346°) 3000ft
HUCUM (4mi, 345°) 1620ft
KMSP (3mi, 5°) 888ft
(5542mi, 116°) 1034ft
CHETZ (5544mi, 296°)
GEP (11mi, 327°) 3000ft
GEP (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BAINY3BAINYVHFleft339 (159)°DME 10.0miICAO rules
BLUEM4LAZYYVHFright184 (4)°DME 10.0miICAO rules
EAU9BEERIVHFright127 (307)°1.0min timedICAO rules
EAU9EAUNDBright123 (303)°1.0min timedICAO rules
EAU9HERMIVHFleft101 (281)°< 17999ftDME 10.0miICAO rules
GEP1GOLLFVHFleft333 (153)°< 17999ft1.0min timedICAO rules
KASPR7JAGOWVHFright178 (358)°1.0min timedICAO rules
KASPR7KASPRVHFright178 (358)°1.0min timedICAO rules
KASPR7ZIBBYVHFright178 (358)°< 60000ft1.0min timedICAO rules
KKILR3BEERIVHFright127 (307)°1.0min timedICAO rules
KKILR3CMAACVHFleft112 (292)°DME 10.0miICAO rules
KKILR3KBULLVHFright129 (309)°DME 10.0miICAO rules
MUSCL3JERMNVHFright97 (277)°DME 10.0miICAO rules
MUSCL3SHEAYVHFright95 (275)°DME 10.0miICAO rules
NITZR3DEMLLVHFright184 (4)°DME 10.0miICAO rules
SKETR5RWFNDBleft245 (65)°< 17999ft1.0min timedICAO rules
SKETR5SKETRVHFleft245 (65)°< 17999ft1.0min timedICAO rules
TORGY3ERICXVHFleft241 (61)°DME 10.0miICAO rules
TORGY3TORGYVHFleft252 (72)°DME 10.0miICAO rules
TWOLF3TWOLFVHFleft178 (358)°< 17999ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
