Airports for X-Plane

Indianapolis - Indianapolis Intl

Airport details

CountryUnited States of America
StateIndiana
RegionK5
AirspaceIndianapolis Ctr
MunicipalityIndianapolis
Elevation793ft (242m)
TimezoneGMT -5
Coordinates39.71730, -86.29464
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKIND
IATA codeIND
FAA codeIND

Communication

Indianapolis Intl ATIS134.250
Indianapolis Intl UNICOM122.950
Indianapolis Intl Clearance DEL128.750
Indianapolis Intl Ground Control121.800
Indianapolis Intl Ground Control121.900
Indianapolis Intl INDY Tower127.825
Indianapolis Intl INDY Tower120.900
Indianapolis Intl Approach119.300
Indianapolis Intl Approach124.650
Indianapolis Intl Approach127.150
Indianapolis Intl Departure119.050
Indianapolis Intl Departure124.950

Approach frequencies

ILS-cat-IIIRW05R111.1518.00mi
ILS-cat-IIIRW05L111.7518.00mi
ILS-cat-IIRW23R111.7518.00mi
ILS-cat-IRW14110.518.00mi
ILS-cat-IRW23L111.1518.00mi
ILS-cat-IRW32110.518.00mi
3° GSRW23R111.7518.00mi
3° GSRW14110.518.00mi
3° GSRW05R111.1518.00mi
3° GSRW32110.518.00mi
3° GSRW05L111.7518.00mi
3° GSRW23L111.1518.00mi
Nearby Points of Interest:
Smith Farm
-
Kellum-Jessup-Chandler Farm
-
Nicholson-Rand House
-
Noah and Hannah Hadley Kellum House
-
Joel Jessup Farm
-
THI and E Interurban Depot-Substation
-
Plainfield Historic District
-
Hawthorne Branch Library No. 2
-
Indianapolis Motor Speedway
-
Christamore House
-
Haughville
-
H. Lauter Company Complex
-
A.A. Parsons Farmstead
-
Nurses' Sunken Garden and Convalescent Park
-
George Stumpf House
-
McCormick Cabin Site
-
West Washington Street Pumping Station
-
Bush Stadium
-
John W. McClain House
-
Henry F. Campbell Mansion
-
Indianapolis Veterans Administration Hospital
-
Indiana State Library and Historical Bureau
-
Indiana State House
-
Indianapolis Chair Manufacturing Company
-
Allison Mansion

Runway info

Runway 5L / 23R
 length3415m (11204ft)
 bearing52° / 232°
 width46m (151ft)
 surfaceconcrete
 blast zone122m (400ft) / 122m (400ft)
Runway 14 / 32
 length2220m (7283ft)
 bearing127° / 307°
 width46m (151ft)
 surfaceasphalt
 blast zone61m (200ft) / 122m (400ft)
Runway 5R / 23L
 length3047m (9997ft)
 bearing52° / 232°
 width46m (151ft)
 surfaceconcrete
 blast zone61m (200ft) / 61m (200ft)

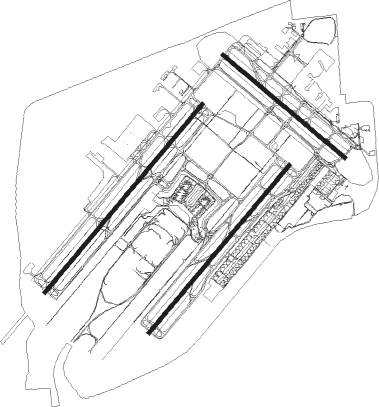

Airport layout


Taxiway locations

 A  A1  A11  A12  A2  A4  A5  A7
 B  B1  B11  B12  B2  B5  B7  C
 C1  C2  C3  C4  C7  C8  C9  D
 D1  D2  D3  D4  D5  D6  D7  D8
 D9  E  G  H  H2  J  K  M
 M1  M2  M3  N  N3  P  R  S
 T  U  V
Parking locations

 AAR  Aire  Bindley  BWI  Comlux  FedEx  Gate  Hanger
 Hunt  IAS  Jetlinx  Lift  Million  Rolls-Royce  RON  Signature
 Spot  USPS  Vincennes

Nearby beacons

codeidentifierdistbearingfrequency
FVLAREZ (INDIANAPOLIS) NDB6.155°349
COCOLFA (INDIANAPOLIS) NDB6.2119°232
VHPBRICKYARD VORTAC6.7323°116.30
UMPMETROPOLITAN (INDIANAPOLIS) NDB17.348°338
SHBSHELBYVILLE VOR/DME22.3100°112
BACLIFS (COLUMBUS) NDB32.4130°410
CFJCRAWFORDSVILLE NDB32.7293°388
OOMHOOSIER (BLOOMINGTON) VORTAC37.4209°110.20
AIVIDEO (ANDERSON) NDB41.866°394
UWLNEW CASTLE NDB4681°385
TTHTERRE HAUTE VORTAC46.2257°115.30
OKKKOKOMO VORTAC49.816°113.50
MIEMUNCIE VOR/DME51.860°114.40
JNBALLL (MUNCIE) NDB52.765°365
MIBALLL (MUNCIE) NDB52.765°365
MZZMARION VOR/DME54.538°108.60
LAEARLE (LAFAYETTE) NDB55313°401
GUSGRISSOM (PERU) VORTAC569°108.45
BVTBOILER (LAFAYETTE) VORTAC61.6317°115.10
GVR(MADISON) DME69.1139°114.65

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW05L
 MEARZ650mi16°
 MAREO596mi84°
 DAWNN1110mi178°
 OOM5128mi219°
 ROCKY1201mi258°
 INDY916mi310°
RW05R
 MEARZ650mi16°
 MAREO596mi84°
 DAWNN1110mi178°
 OOM5128mi219°
 ROCKY1201mi258°
 INDY916mi310°
RW14
 MEARZ650mi16°
 MAREO596mi84°
 DAWNN1110mi178°
 OOM5128mi219°
 ROCKY1201mi258°
 INDY916mi310°
RW23 (ALL)
 MEARZ650mi16°
 MAREO596mi84°
 DAWNN1110mi178°
 OOM5128mi219°
 ROCKY1201mi258°
 INDY916mi310°
RW32
 MEARZ650mi16°
 MAREO596mi84°
 DAWNN1110mi178°
 OOM5128mi219°
 ROCKY1201mi258°
 INDY916mi310°

STAR starting pointsdistanceinbound heading
ALL
 RACYR545.845°
 CLANG725.5232°
RW05 (ALL)
 KOLTS220.3108°
 JAKKS227.8128°
 GIIBS335.2312°
RW05L
 SMUKE225.149°
 SNKPT230.3235°
RW05R
 SMUKE225.149°
 SNKPT230.3235°
RW14
 SMUKE225.149°
 JAKKS227.8128°
 SNKPT230.3235°
 GIIBS335.2312°
RW23 (ALL)
 KOLTS220.3108°
 JAKKS227.8128°
 GIIBS335.2312°
RW23L
 SMUKE225.149°
 SNKPT230.3235°
RW23R
 SMUKE225.149°
 SNKPT230.3235°
RW32
 SMUKE225.149°
 KOLTS220.3108°
 JAKKS227.8128°
 SNKPT230.3235°
 GIIBS335.2312°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05LYKELLY (51°)KELLY
WAAYN (11mi, 48°) 5000ft
FTBLL (3mi, 52°) 4000ft
RW05LYWAAYN (53°)WAAYN
FTBLL (3mi, 52°) 4000ft
 RNAVFTBLL 4000ft
STDUM (3mi, 52°) 3000ft
OINKK (3mi, 52°) 2100ft
KIND (5mi, 56°) 791ft
(5234mi, 115°) 1300ft
KEADY (5242mi, 295°) 3000ft
KEADY (turn)
RW05LZATEEN (89°)ATEEN 5000ft
SARUH (6mi, 118°) 3000ft
OINKK (3mi, 86°) 2100ft
RW05LZHLLMT (104°)HLLMT 5000ft
EYOLO (5mi, 166°) 3600ft
SARUH (2mi, 140°) 3000ft
OINKK (3mi, 86°) 2100ft
RW05LZKREEM (339°)KREEM 5000ft
BWARE (5mi, 277°) 3600ft
OINKK (4mi, 337°) 2100ft
RW05LZPETYN (137°)PETYN 6000ft
MAMTE (6mi, 232°) 4400ft
EYOLO (2mi, 201°) 3600ft
SARUH (2mi, 140°) 3000ft
OINKK (3mi, 86°) 2100ft
RW05LZWAAYN (53°)WAAYN 5000ft
FTBLL (3mi, 52°) 4000ft
STDUM (3mi, 52°) 3000ft
OINKK (3mi, 52°) 2100ft
 RNAVOINKK 2100ft
KIND (5mi, 56°) 791ft
(5234mi, 115°) 1196ft
KEADY (5242mi, 295°) 3000ft
KEADY (turn)
RW05RYIIUUU (50°)IIUUU 5000ft
BIGRD (3mi, 52°) 4000ft
RW05RYKELLY (51°)KELLY
IIUUU (11mi, 52°) 5000ft
BIGRD (3mi, 52°) 4000ft
 RNAVBIGRD 4000ft
BGTEN (3mi, 52°) 3000ft
HUUPS (3mi, 52°) 2100ft
KIND (5mi, 47°) 839ft
(5234mi, 115°) 1500ft
OZMOE (5223mi, 295°) 3000ft
OZMOE (turn)
RW05RZATEEN (89°)ATEEN 5000ft
HORNT (7mi, 116°) 3000ft
HUUPS (3mi, 85°) 2100ft
RW05RZIIUUU (50°)IIUUU 5000ft
BIGRD (3mi, 52°) 4000ft
BGTEN (3mi, 52°) 3000ft
HUUPS (3mi, 52°) 2100ft
RW05RZKNIGT (298°)KNIGT 6000ft
JAANE (6mi, 232°) 4400ft
KYYLL (2mi, 256°) 3600ft
HUUPS (4mi, 337°) 2100ft
RW05RZKREEM (339°)KREEM 5000ft
KYYLL (5mi, 277°) 3600ft
HUUPS (4mi, 337°) 2100ft
 RNAVHUUPS 2100ft
KIND (5mi, 47°) 839ft
(5234mi, 115°) 1500ft
OZMOE (5223mi, 295°) 3000ft
OZMOE (turn)
RW14-YJELLS (129°)JELLS
KEADY (13mi, 127°) 4000ft
 RNAVKEADY 4000ft
RSADE (6mi, 127°) 2400ft
YEAAR (3mi, 127°) 1480ft
KIND (3mi, 148°) 843ft
(5234mi, 115°) 996ft
OZMOE (5223mi, 295°) 3000ft
OZMOE (turn)
RW14-ZCRCLE (232°)CRCLE 6000ft
CELPI (5mi, 307°) 4400ft
DUNJE (3mi, 279°) 3800ft
RSADE (4mi, 195°) 2400ft
RW14-ZGRESY (191°)GRESY 5000ft
DUNJE (4mi, 254°) 3800ft
RSADE (4mi, 195°) 2400ft
RW14-ZKEADY (132°)KEADY 4000ft
RSADE (6mi, 127°) 2400ft
RW14-ZOLGLD (88°)OLGLD 5000ft
COSRI (4mi, 25°) 3800ft
RSADE (4mi, 80°) 2400ft
RW14-ZPNFLD (52°)PNFLD 6000ft
FRENY (5mi, 307°) 4400ft
COSRI (3mi, 343°) 3800ft
RSADE (4mi, 80°) 2400ft
 RNAVRSADE 2400ft
KIND (5mi, 137°) 843ft
OZMOE (14mi, 124°) 3000ft
OZMOE (turn)
RW23LYCLANG (232°)CLANG
LLARY (12mi, 231°) 5000ft
BBIRD (3mi, 232°) 4000ft
RW23LYLLARY (234°)LLARY 5000ft
BBIRD (3mi, 232°) 4000ft
 RNAVBBIRD 4000ft
PACRR (4mi, 232°) 2600ft
KIND (6mi, 235°) 845ft
(5234mi, 115°) 1500ft
OZMOE (5223mi, 295°) 3000ft
OZMOE (turn)
RW23LZKNIGT (298°)KNIGT 6000ft
STEWR (5mi, 52°) 4500ft
GOBGE (2mi, 22°) 3800ft
PACRR (4mi, 284°) 2600ft
RW23LZLLARY (234°)LLARY 5000ft
BBIRD (3mi, 232°) 4000ft
PACRR (4mi, 232°) 2600ft
RW23LZMIILR (279°)MIILR 6000ft
GOBGE (5mi, 348°) 3800ft
PACRR (4mi, 284°) 2600ft
RW23LZTRAAK (163°)TRAAK 6000ft
PUKAE (5mi, 97°) 3600ft
PACRR (5mi, 157°) 2600ft
 RNAVPACRR 2600ft
KIND (6mi, 235°) 845ft
(5234mi, 115°) 1500ft
OZMOE (5223mi, 295°) 3000ft
OZMOE (turn)
RW23RYCLANG (232°)CLANG
RACEN (12mi, 235°) 5000ft
DRVVR (3mi, 232°) 4000ft
RW23RYRACEN (230°)RACEN
DRVVR (3mi, 232°) 4000ft
 RNAVDRVVR 4000ft
CKERD (4mi, 232°) 2600ft
KIND (6mi, 228°) 838ft
(5234mi, 115°) 1500ft
KEADY (5242mi, 295°) 3000ft
KEADY (turn)
RW23RZMIILR (279°)MIILR 5000ft
MUSKE (5mi, 348°) 3600ft
CKERD (5mi, 284°) 2600ft
RW23RZPETYN (137°)PETYN 6000ft
COYLE (5mi, 52°) 4400ft
COZRT (2mi, 76°) 3600ft
CKERD (4mi, 157°) 2600ft
RW23RZRACEN (230°)RACEN 5000ft
DRVVR (3mi, 232°) 4000ft
CKERD (4mi, 232°) 2600ft
RW23RZTRAAK (163°)TRAAK 5000ft
COZRT (5mi, 97°) 3600ft
CKERD (4mi, 157°) 2600ft
 RNAVCKERD 2600ft
KIND (6mi, 228°) 838ft
(5234mi, 115°) 1200ft
KEADY (5242mi, 295°) 3000ft
KEADY (turn)
RW32-YDECEE (308°)DECEE
OZMOE (21mi, 310°) 4500ft
 RNAVOZMOE 4500ft
BTTLR (8mi, 307°) 2400ft
KIND (6mi, 299°) 836ft
(5234mi, 115°) 993ft
KEADY (5242mi, 295°) 3000ft
KEADY (turn)
RW32-ZBDAWG (1°)BDAWG 5000ft
EVAVE (4mi, 74°) 3600ft
BTTLR (4mi, 16°) 2400ft
RW32-ZCRCLE (232°)CRCLE 6000ft
DLNGR (5mi, 127°) 4400ft
CUREG (3mi, 164°) 3600ft
BTTLR (4mi, 260°) 2400ft
RW32-ZHNKLE (263°)HNKLE 5000ft
CUREG (4mi, 205°) 3600ft
BTTLR (4mi, 260°) 2400ft
RW32-ZOZMOE (304°)OZMOE 4500ft
BTTLR (8mi, 307°) 2400ft
RW32-ZPNFLD (52°)PNFLD 6000ft
HIKEK (5mi, 127°) 4400ft
EVAVE (3mi, 99°) 3600ft
BTTLR (4mi, 16°) 2400ft
 RNAVBTTLR 2400ft
KIND (6mi, 299°) 836ft
KEADY (11mi, 312°) 3000ft
KEADY (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
CLANG7CLANGVHFleft64 (244)°1.0min timedICAO rules
GIIBS3EASELVHFleft178 (358)°DME 10.0miICAO rules
GIIBS3HASEVVHFleft178 (358)°DME 10.0miICAO rules
JAKKS2JAKKSVHFright311 (131)°1.0min timedICAO rules
RACYR5KELLYVHFright209 (29)°1.0min timedICAO rules
SMUKE2EMBRRVHFleft215 (35)°DME 10.0miICAO rules
SMUKE2GAMLEVHFleft215 (35)°DME 10.0miICAO rules
SMUKE2RACYRVHFleft214 (34)°DME 10.0miICAO rules
SNKPT2DOTKEVHFright92 (272)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
