Airports for X-Plane

Grove - Grove Muni

Airport details

CountryUnited States of America
StateOklahoma
RegionK4
AirspaceKansas City Ctr
MunicipalityGrove
Elevation830ft (253m)
TimezoneGMT -5
Coordinates36.60678, -94.73856
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKGMJ
IATA coden/a
FAA codeGMJ

Communication

GROVE MUNI AWOS 3119.025
GROVE MUNI CTAF/UNICOM122.800

Runway info

Runway 18 / 36
 length1603m (5259ft)
 bearing180° / 360°
 width23m (75ft)
 surfaceasphalt
 displ threshold0m (0ft) / 17m (56ft)

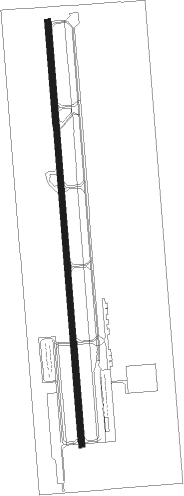

Airport layout


Parking locations

 FBO  West

Nearby beacons

codeidentifierdistbearingfrequency
EOSNEOSHO VOR/DME20.352°117.30
SLGSILOAM SPRINGS NDB27.8149°284
JLLUNNS (JOPLIN) NDB36.817°344
RZCRAZORBACK (FAYETTEVILLE) VORTAC36.8120°116.40
OSWOSWEGO VOR/DME39.9320°117.60

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW18HOTUT (152°)HOTUT 3000ft
UNHAF (5mi, 90°) 3000ft
RW18SANOC (207°)SANOC 3000ft
UNHAF (5mi, 270°) 3000ft
RW18UNHAF (180°)UNHAF 3000ft
 RNAVUNHAF 3000ft
VEGJU (6mi, 180°) 2600ft
RICOY (2mi, 180°) 1820ft
KGMJ (3mi, 180°) 857ft
OJEFY (12mi, 180°) 3000ft
OJEFY (turn)
RW36BIHSU (27°)BIHSU 3000ft
OJEFY (5mi, 90°) 3000ft
RW36OJEFY (360°)OJEFY 3000ft
RW36UYUDE (333°)UYUDE 3000ft
OJEFY (5mi, 270°) 3000ft
 RNAVOJEFY 3000ft
UGEKY (6mi, 360°) 2700ft
GOTYE (2mi, 360°) 2120ft
CERIV (3mi, 360°) 1027ft
(5634mi, 111°) 1231ft
UNHAF (5633mi, 291°) 3000ft
UNHAF (turn)
