New Braunfels - New Braunfels Regl
Airport details
| Country | United States of America |
| State | Texas |
| Region | K4 |
| Airspace | Houston Oceanic Ctr |
| Municipality | New Braunfels |
| Elevation | 645ft (197m) |
| Timezone | GMT -6 |
| Coordinates | 29.70575, -98.04322 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | KBAZ |
| IATA code | n/a |
| FAA code | BAZ |
Communication
| New Braunfels Regl ASOS | 119.325 |
| New Braunfels Regl CTAF/UNICOM | 122.700 |
| New Braunfels Regl Clearance DEL | 134.750 |
| New Braunfels Regl TOWER | 127.050 |
| New Braunfels Regl SAN ANTONIO Approach | 124.450 |
| New Braunfels Regl SAN ANTONIO Departure | 125.700 |

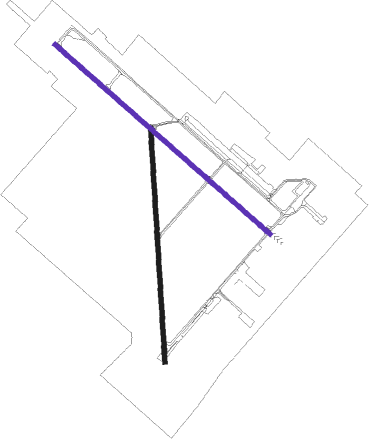

Runway info
Runway 17 / 35  | ||
| length | 1632m (5354ft) | |
| bearing | 181° / 1° | |
| width | 30m (100ft) | |
| surface | asphalt | |
| displ threshold | 159m (522ft) / 0m (0ft) | |
| Runway 13 / 31 | ||
| length | 1989m (6526ft) | |
| bearing | 132° / 312° | |
| width | 30m (100ft) | |
| surface | asphalt | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| DHK | RANDOLPH TACAN | 15.5 | 233° | 109.90 |
| RU | GARYS (AUSTIN) NDB | 15.9 | 20° | 272 |
| RND | RANDOLPH VORTAC | 16.8 | 232° | 112.30 |
| SAT | SAN ANTONIO VORTAC | 22.1 | 262° | 116.80 |
| AN | ALAMO (SAN ANTONIO) NDB | 28.1 | 259° | 368 |
| KSY | KELLY (SAN ANTONIO) TACAN | 33.8 | 240° | 112 |
| SSF | STINSON (SAN ANTONIO) VOR | 34 | 222° | 108.40 |
| STV | STONEWALL VORTAC | 45.7 | 307° | 113.80 |
| CWK | CENTEX VORTAC | 48.4 | 37° | 112.80 |
| HHH | DEVINE NDB | 57.9 | 238° | 359 |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW13 | MARNE (132°) | MARNE 3100ft |
| RNAV | MARNE 3100ft EKIVY (4mi, 132°) 2800ft WUGHE (2mi, 132°) 2500ft KBAZ (6mi, 133°) 708ft (5824mi, 107°) 908ft NUMMO (5817mi, 287°) 3500ft NUMMO (turn) | |
| RW17 | SHEPE (132°) | SHEPE ACGET (6mi, 81°) 3100ft EKKOP (3mi, 153°) 2600ft |
| RNAV | EKKOP 2600ft RAZVY (3mi, 153°) 2000ft KBAZ (4mi, 180°) 693ft (5824mi, 107°) 1051ft CUDVI (5825mi, 287°) NUMMO (9mi, 116°) 3500ft NUMMO (turn) | |
| RW31 | NUMMO (311°) | NUMMO 3500ft |
| RNAV | NUMMO 3500ft FEKNI (4mi, 312°) 2500ft TIVYO (2mi, 312°) 2000ft KBAZ (5mi, 310°) 689ft (5824mi, 107°) 896ft MARNE (5832mi, 287°) 3100ft MARNE (turn) | |
| RW35 | MARCS (223°) | MARCS FORES (26mi, 205°) 3000ft FORES (turn) 3000ft |
| RW35 | SAT (82°) | SAT FORES (23mi, 109°) 3000ft FORES (turn) 3000ft |
| RNAV | FORES 3000ft TAFCU (6mi, 1°) 2500ft KBAZ (6mi, 1°) 690ft FONEK (2mi, 360°) BRAUN (5mi, 346°) 3100ft BRAUN (turn) |
Disclaimer
The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
