Dire Dawa - Dire Dawa Intl
Airport details
| Country | Ethiopia |
| State | Dire Dawa |
| Region | HA |
| Airspace | Addis Abeba Ctr |
| Elevation | 3829ft (1167m) |
| Timezone | GMT +3 |
| Coordinates | 9.63779, 41.84888 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v11.51r1 |
| ICAO code | HADR |
| IATA code | DIR |
| FAA code | n/a |
Communication
| Dire Dawa INTL Ground Control | 121.900 |
| Dire Dawa INTL Tower | 118.300 |
| Dire Dawa INTL Approach | 120.100 |
| Dire Dawa INTL Approach | 120.300 |

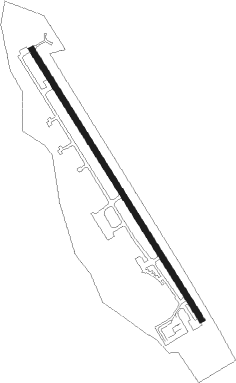

Runway info
| Runway 15 / 33 | ||
| length | 2691m (8829ft) | |
| bearing | 152° / 332° | |
| width | 45m (148ft) | |
| surface | asphalt | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| DWA | DIRE DAWA VOR/DME | 0.4 | 322° | 117.70 |
| AY | DIRE DAWA NDB | 0.6 | 325° | 241 |
Departure and arrival routes
| Transition altitude | 15500ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW33 | |||
| ASTAR1 | 73mi | 33° | |
| ARSHI1 | 92mi | 93° | |
| DENGO1 | 42mi | 106° | |
| EPTOV1 | 80mi | 155° | |
| TADRA1 | 80mi | 180° | |
| AXIDA1 | 80mi | 193° | |
| MAGON1 | 62mi | 261° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| RW15 | |||
| TADRA1 | 79.9 | 0° | |
| AXIDA1 | 80.0 | 13° | |
| MAGON1 | 62.2 | 81° | |
| ASTAR1 | 72.6 | 213° | |
| ARSHI1 | 92.3 | 273° | |
| DENGO1 | 41.6 | 286° | |
| EPTOV1 | 79.7 | 335° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW15 | DR001 (132°) | DR001 8500ft DR003 (6mi, 82°) 7000ft |
| RW15 | DR002 (171°) | DR002 8500ft DR003 (6mi, 222°) 7000ft |
| RNAV | DR003 7000ft DR004 (7mi, 152°) 5270ft DR005 (2mi, 152°) 5270ft DR006 (3mi, 152°) 4470ft DR007 (10mi, 247°) 5700ft DR008 (6mi, 285°) 6600ft DR009 (6mi, 343°) 7500ft DR001 (8mi, 44°) 8500ft |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| ARSHI1 | DR002 | VHF | right | 40 (220)° | 8500ft - 24000ft | 1.5min timed | ICAO rules |
| ASTAR1 | DR002 | VHF | right | 40 (220)° | 8500ft - 24000ft | 1.5min timed | ICAO rules |
| AXIDA1 | DR001 | VHF | left | 260 (80)° | 8500ft - 24000ft | 1.5min timed | ICAO rules |
| DENGO1 | DR002 | VHF | right | 40 (220)° | 8500ft - 24000ft | 1.5min timed | ICAO rules |
| EPTOV1 | DR001 | VHF | left | 260 (80)° | 8500ft - 24000ft | 1.5min timed | ICAO rules |
| MAGON1 | DR001 | VHF | left | 260 (80)° | 8500ft - 24000ft | 1.5min timed | ICAO rules |
| TADRA1 | DR001 | VHF | left | 260 (80)° | 8500ft - 24000ft | 1.5min timed | ICAO rules |
| *) magnetic outbound (inbound) holding course | |||||||
Disclaimer
The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
