Airports for X-Plane

Gothenburg - Göteborg Landvetter

Airport details

CountrySweden
StateVästra Götalands län
RegionES
AirspaceSweden Ctr
MunicipalityHärryda kommun
Elevation501ft (153m)
TimezoneGMT +1
Coordinates57.66000, 12.29111
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeESGG
IATA codeGOT
FAA coden/a

Communication

Göteborg Landvetter ATIS114.600
Göteborg Landvetter ATIS118.375
Göteborg Landvetter Ground121.900
Göteborg Landvetter Apron Pushback121.600
Göteborg Landvetter LANDVETTER Tower118.600
Göteborg Landvetter GOTEBORG Approach124.675

Approach frequencies

ILS-cat-IIIRW21108.518.00mi
ILS-cat-IIIRW03110.318.00mi
3° GSRW21108.518.00mi
3° GSRW03110.318.00mi

Runway info

Runway 03 / 21
 length3295m (10810ft)
 bearing42° / 222°
 width45m (148ft)
 surfaceasphalt
 blast zone52m (171ft) / 64m (210ft)

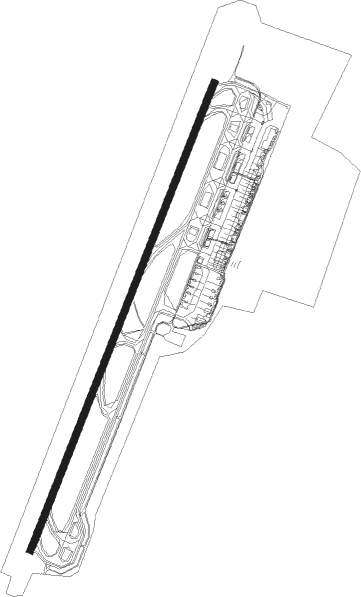

Airport layout


Taxiway locations

 A  B  C  D  F  G  H  J
 K  L  Y  Z
Parking locations

 Cargo  Gate  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
LAVLANDVETTER (GOTEBORG) VOR/DME0.2198°114.60
NLLANDVETTER (GOTEBORG) NDB4.537°369
SLLANDVETTER (GOTEBORG) NDB4.5227°342
HGGDME4.8165°113.95
PGGDME5.3307°113.35
BAKDME11.9252°112.70
SDHDME18.680°115.65
PGTROLLHATTAN-VANERSBORG NDB36.412°325
FMTROLLHATTAN-VANERSBORG NDB42360°399
SGSATENAS NDB45.230°409
LGSATENAS NDB49.528°309
LTHALMSTAD NDB54.8147°336

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW03
 NEGI3M37mi29°
 LABA3M44mi63°
 LUKA3M28mi86°
 TOPL3M, SOJW1P32mi175°
 VADI3M38mi231°
 TAKO3R, DETN3M40mi267°
 SABA3M, TISA3R37mi309°
RW21
 SULI3J, NEGI2G37mi29°
 LABA4J44mi63°
 MISV3P16mi68°
 LUKA4J28mi86°
 TOPL3J32mi175°
 VADI3J38mi231°
 DETN3J40mi267°
 PEVA2G16mi284°
 SABA3J37mi309°

STAR starting pointsdistanceinbound heading
RW03
 RISM3K, RISM4L38.427°
 LOBI4K, LOBI5L32.867°
 MAKU5L, MAKU4K31.675°
 KELI3L, KELI3K35.8158°
 NEGI3K, NEGI3L37.0209°
 MOXA3K, MOXA3L61.5230°
 ARQU1L, ARQU1Q39.6312°
RW21
 RISM3T, RISM3S38.427°
 LOBI4T, LOBI4S32.867°
 MAKU4S, MAKU4T31.675°
 KELI3T, KELI3S35.8158°
 NEGI3T, NEGI3S37.0209°
 MOXA4S, MOXA3T61.5230°
 ARQU1X, ARQU1S39.6312°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW03-YOXJAG (8°)OXJAG
GG724 (3mi, 320°)
GG723 (2mi, 320°) 2750ft
 RNAVGG723 2750ft
GG722 (2mi, 1°)
ESGG (5mi, 47°) 532ft
(3513mi, 192°) 3000ft
(turn) 3000ft
RW21-YWAZZO (277°)WAZZO
GG494 (4mi, 325°)
GG496 (4mi, 299°)
GG493 (4mi, 282°) 2820ft
 RNAVGG493 2820ft
GG498 (4mi, 258°)
ESGG (4mi, 214°) 556ft
(3513mi, 192°) 3000ft
(turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
KELI3KTOMVIVHFright244 (64)°> 4000ft1.0min timed230
KELI3TMAXIVVHFright344 (164)°> 4000ft1.0min timed230
LOBI4KTOMVIVHFright244 (64)°> 4000ft1.0min timed230
LOBI4TMAXIVVHFright344 (164)°> 4000ft1.0min timed230
MAKU4KTOMVIVHFright244 (64)°> 4000ft1.0min timed230
MAKU4TMAXIVVHFright344 (164)°> 4000ft1.0min timed230
MOXA3KTOMVIVHFright244 (64)°> 4000ft1.0min timed230
MOXA3TMAXIVVHFright344 (164)°> 4000ft1.0min timed230
NEGI3KTOMVIVHFright244 (64)°> 4000ft1.0min timed230
NEGI3TMAXIVVHFright344 (164)°> 4000ft1.0min timed230
RISM3KTOMVIVHFright244 (64)°> 4000ft1.0min timed230
RISM3TMAXIVVHFright344 (164)°> 4000ft1.0min timed230
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
